The SC-USB-F2 Flip Pro features a front fit bezel for flexible installation when rear panel access is limited, offering high-speed USB-A and USB-C charging with marine-grade protection, IPX4 waterproofing, and a spring-loaded cap to protect ports from water and debris. It delivers up to 36W on 12V systems and 60W on 24V systems, supports simultaneous charging of multiple devices, and includes anti-corrosion materials, UV resistance, and a stainless steel hinge. Electrical specifications cover 10-32V input voltage with various output settings, and the device is certified CE, FCC, UKCA, C-Tick, and ROHS, with item number SCSC-USB-F2.
- Description
- Ask a Question
-
Scanstrut SC-USB-F2 - Flip Pro USB-A and USB-C Connection 12/24V With Front Fit Bezel

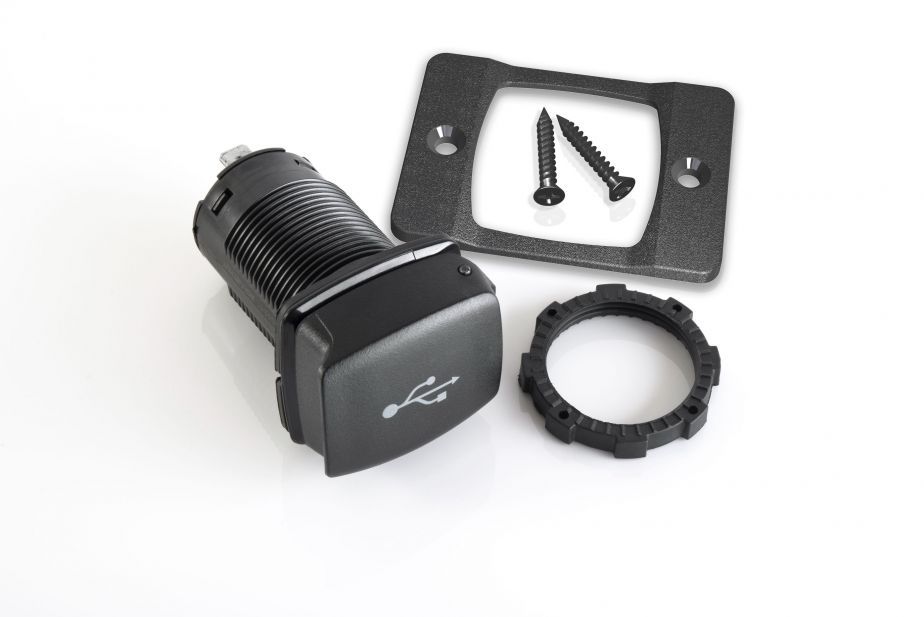

The SC-USB-F2 Flip Pro adds a front fit bezel for flexible installation, ideal when rear panel access is limited. It keeps the same high-speed charging and marine-ready protection as the original SC-USB-F1.

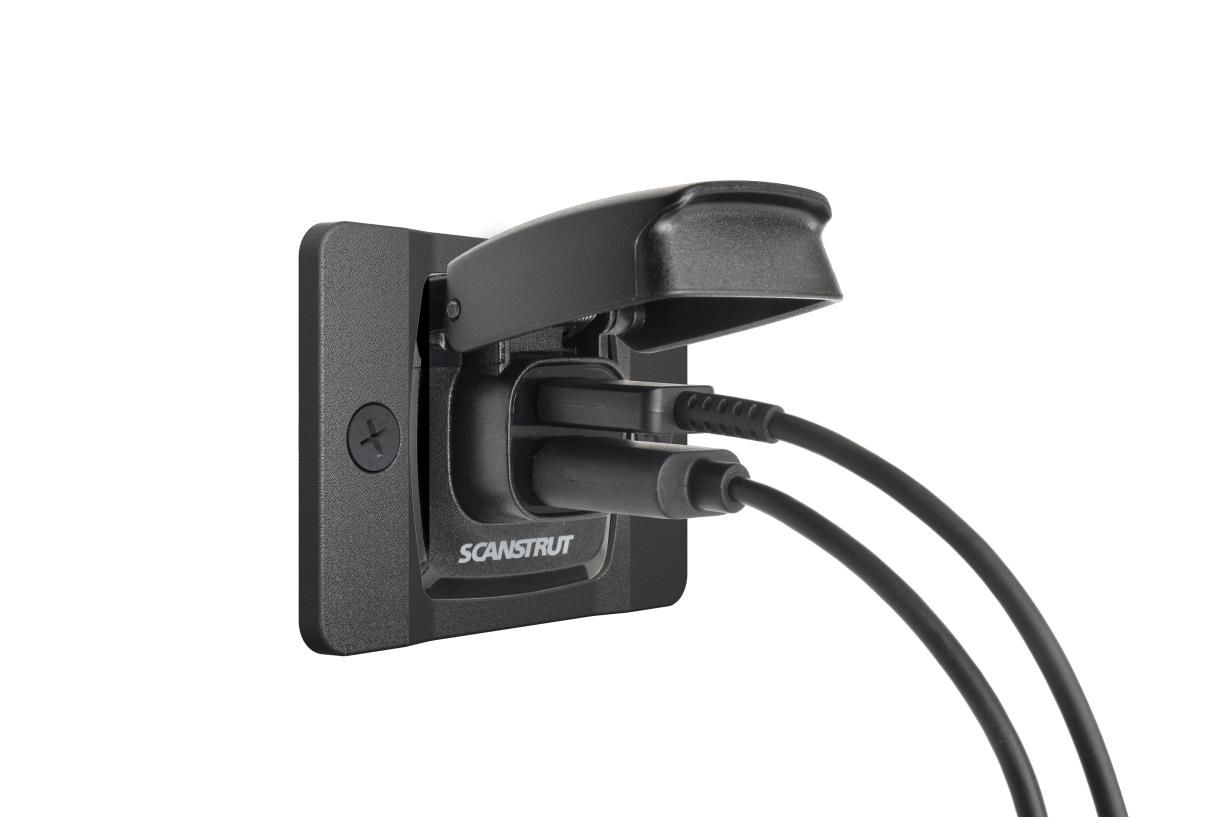

- Spring-loaded cap remains closed when idle to shield ports from elements and locks open during charging to safeguard cables.
- Compact, premium marine-grade construction with IPX4 waterproof rating ensures complete washdown readiness.
- High-speed charging: 36W on 12V systems and 60W on 24V systems; USB-C port suitable for laptops, and capable of charging large tablets and two Apple devices simultaneously.

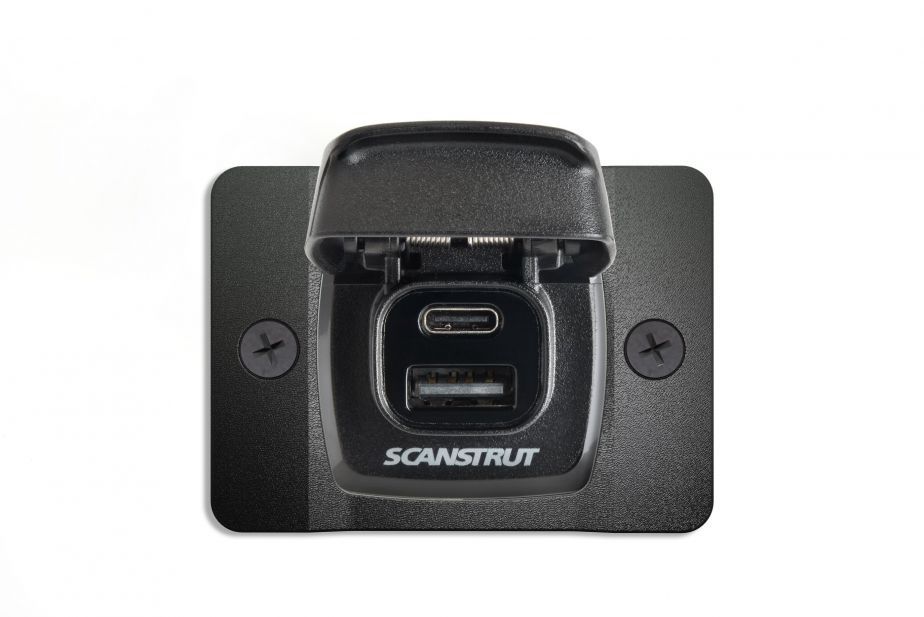

- Universal fit: supports any USB-A or USB-C connector; fast charge for two devices at once; fits standard 29mm (1 1/8”) USB mounting hole.
- Washdown-proof (IPX4) with cover closed.
- Marine-ready features: internal anti-corrosion coating, UV resistance, 316 stainless hinge and spring.
- USB-C output: 60W max (24V system), 36W max (12V system)
- USB-A output: 36W max

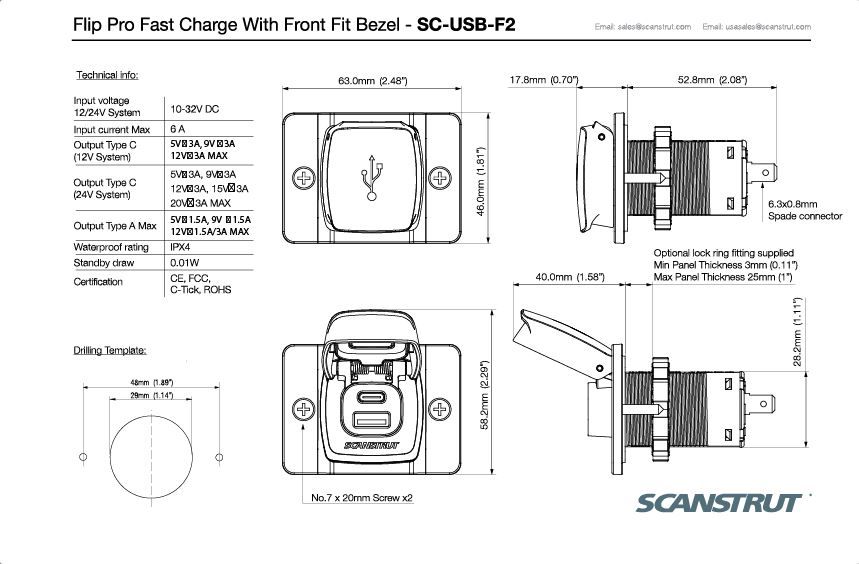

- Electrical specifications:
- Input Voltage: 10-32V DC (12/24V system)
- Input Current: Max 6A (10A fuse recommended)
- Type C Output: 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX; 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX
- Type A Output: 5V⎓1.5A, 9V⎓1.5A, 12V⎓1.5A/3A MAX
- Standby Draw: 0.01W
- Certification: CE, FCC, UKCA, C-Tick, ROHS
- Item number: SCSC-USB-F2
- Important: Use the supplied device cable to maximize charge performance. Phones charge at same speed on 12V or 24V systems; laptops require 24V for full 60W output.
-
