The Scanstrut SC-MULTI-F2 Flip Pro Duo combines USB-A and USB-C fast charging up to 60W for two devices in a compact, marine-ready design. It features spring-loaded protective caps, IPX4 waterproofing, UV resistance, and easy installation with a standard hole saw, making it suitable for outdoor marine environments and dual-voltage systems.
- Description
- Ask a Question
-

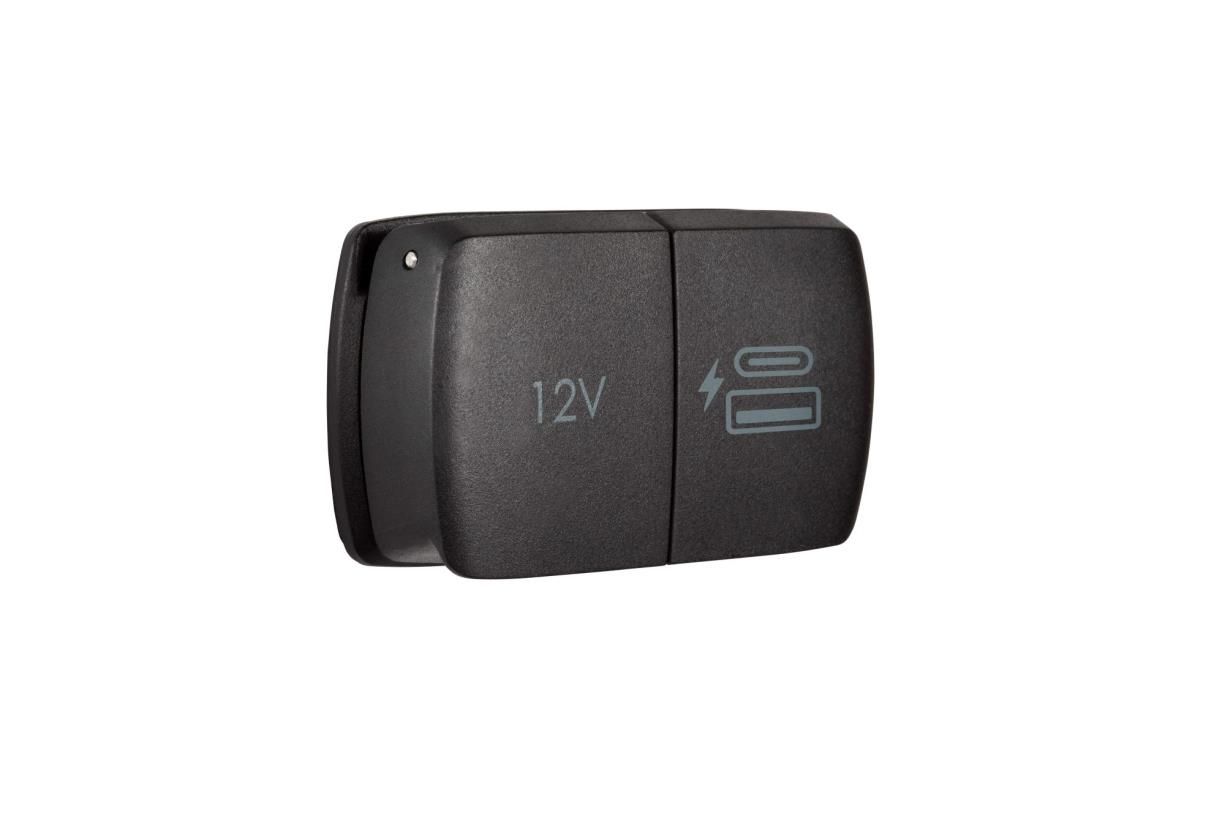

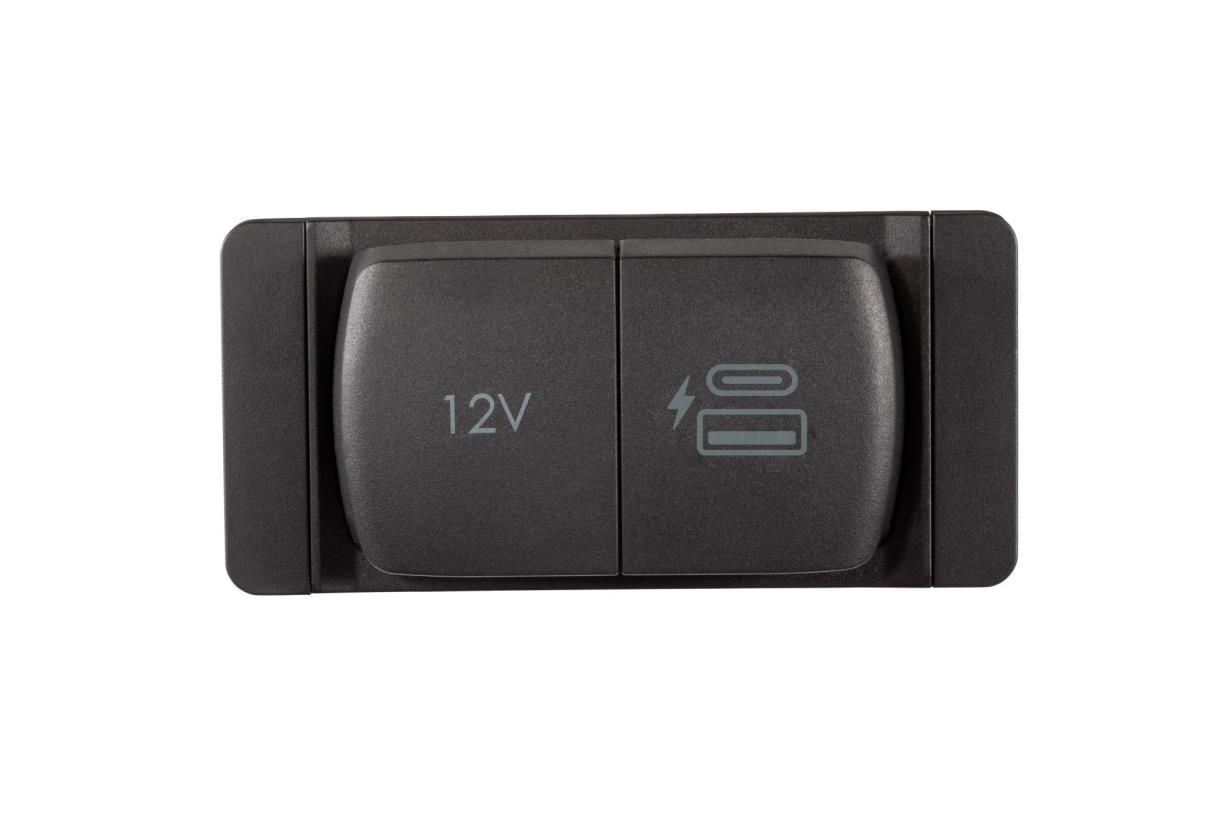

Scanstrut SC-MULTI-F2 - Flip Pro Duo USB-A and USB-C Connection and 12V Junction Box
The Scanstrut Flip Pro USB Charge range provides advanced marine-grade charging for outdoor use, ensuring fast and dependable USB power wherever you are on the water. Built for durability, the Flip Pro Duo combines robust construction with modern technology and a compact design for seamless operation in harsh environments.

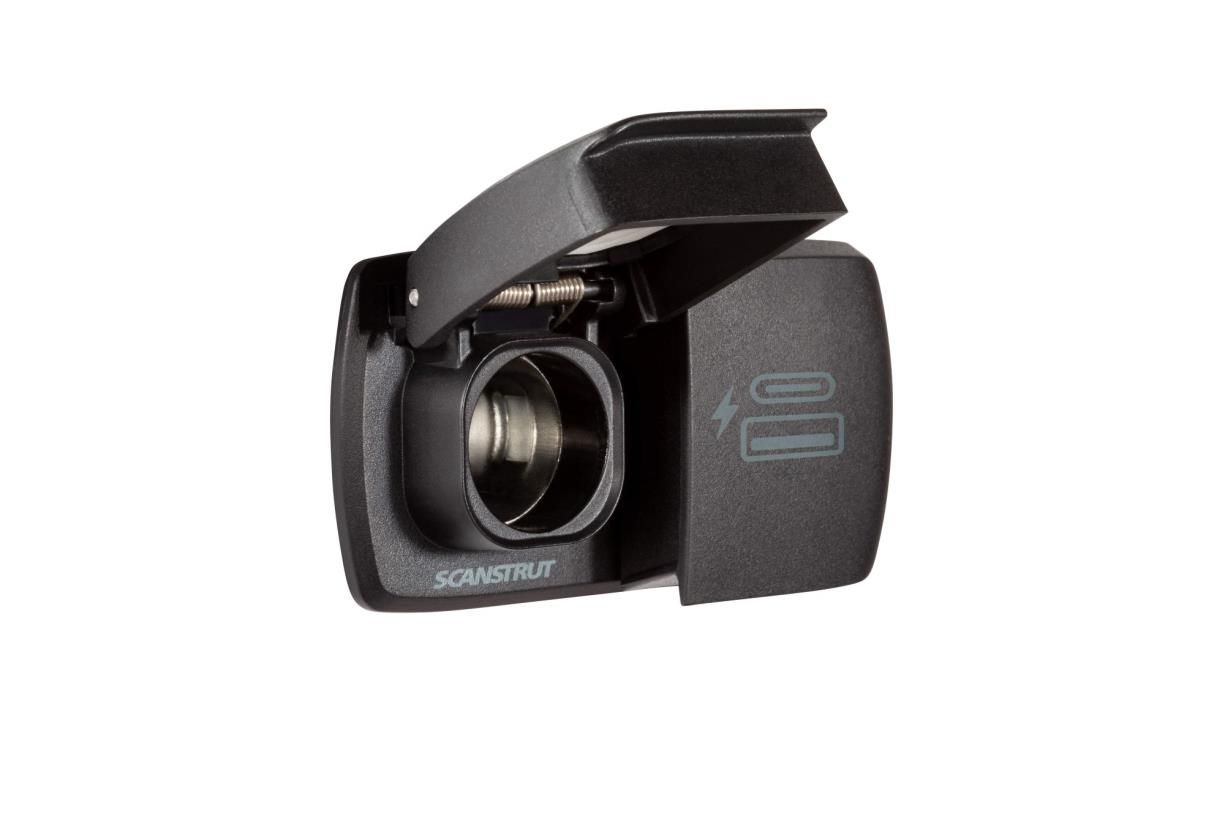

- Spring-loaded protective caps keep ports sealed when not in use, safeguarding against water and debris.
- Super-compact footprint, crafted from premium marine-grade materials.
- IPX4 waterproof and fully washdown-ready.

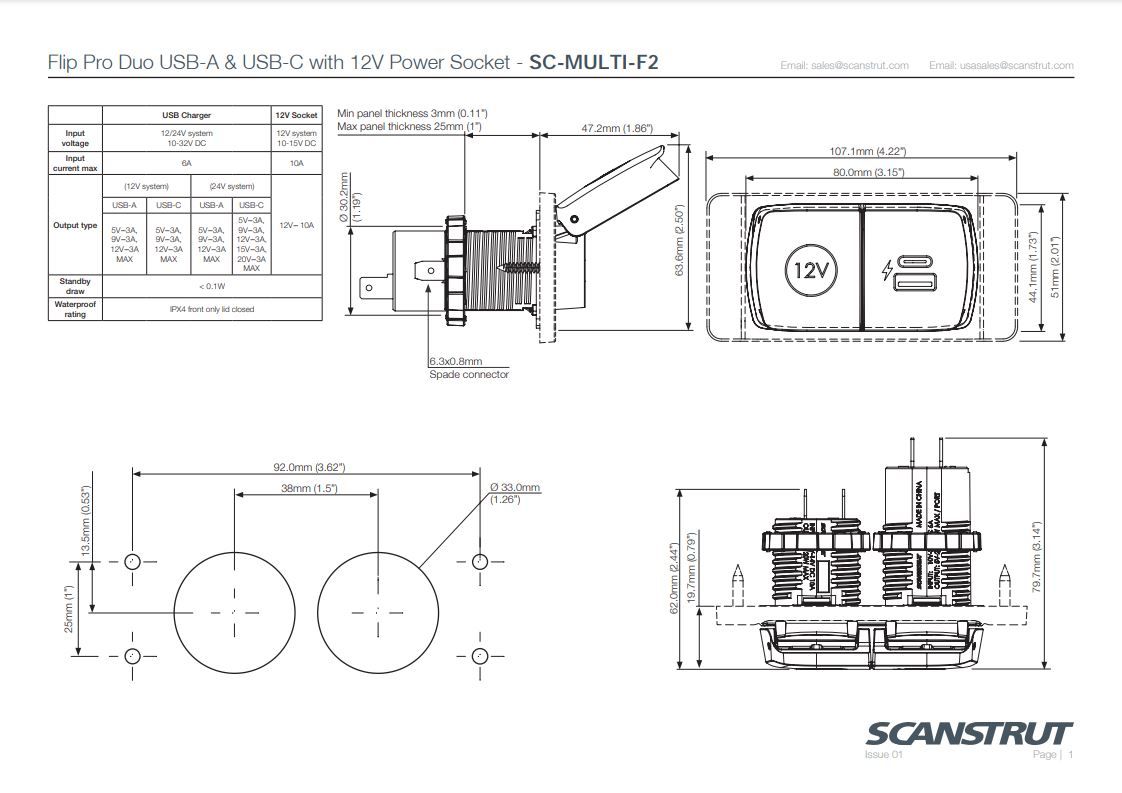

- Easy installation using a standard Ø32mm (1.25”) hole saw.
Universal Features
- Compatible with USB-A & USB-C connectors.
- Fast charge (60W max) for up to two devices simultaneously.

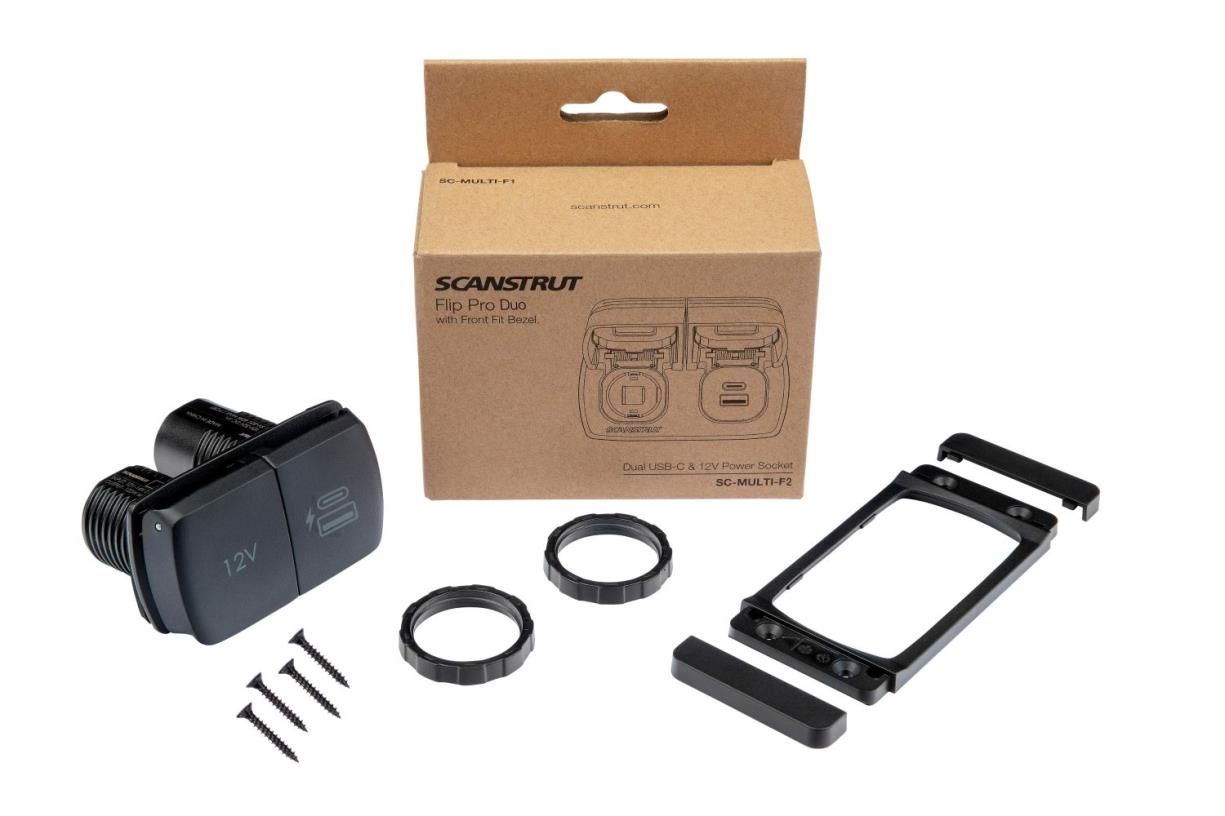

- Supplied with a front-fit bezel kit.
Marine Ready
- IPX4 waterproof rating with closed cover.
- UV resistant construction.
- 316 stainless hinge and spring.
USB Electrical Information
- Input Voltage: 10–15V DC (12/24V system)
- Input Current: Max 6A (10A fuse recommended)
- Output (Type C):
- 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX
- 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX
- Output (Type A):
- 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX
- 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX
- Standby Draw: 0.01W
- Certifications: CE, FCC, UKCA, C-Tick, ROHS, WEE
12V Power Socket Electrical Information
- Input Voltage (12V System Only): 12V
- Input Current: Max 10A
- Output: 12V⎓10A
- Standby Draw: 0.01W
- Certifications: CE, ROHS, WEE, UKCA
Item number: SCSC-MULTI-F2
-
