ID
1301680
$ 135.10
1-2 weeks delivery time
-
+
The Scanstrut SC-MULTI-F1 Flip Pro Multi USB-C and 12V Junction Box offers dual fast-charging USB-C ports up to 60W, designed for marine environments with IPX4 waterproofing, UV resistance, and durable stainless steel components. It supports 12/24V systems, includes a front-fit bezel for installation, and provides robust power output for laptops and other devices, ensuring reliable outdoor performance.
- Description
- Ask a Question
-

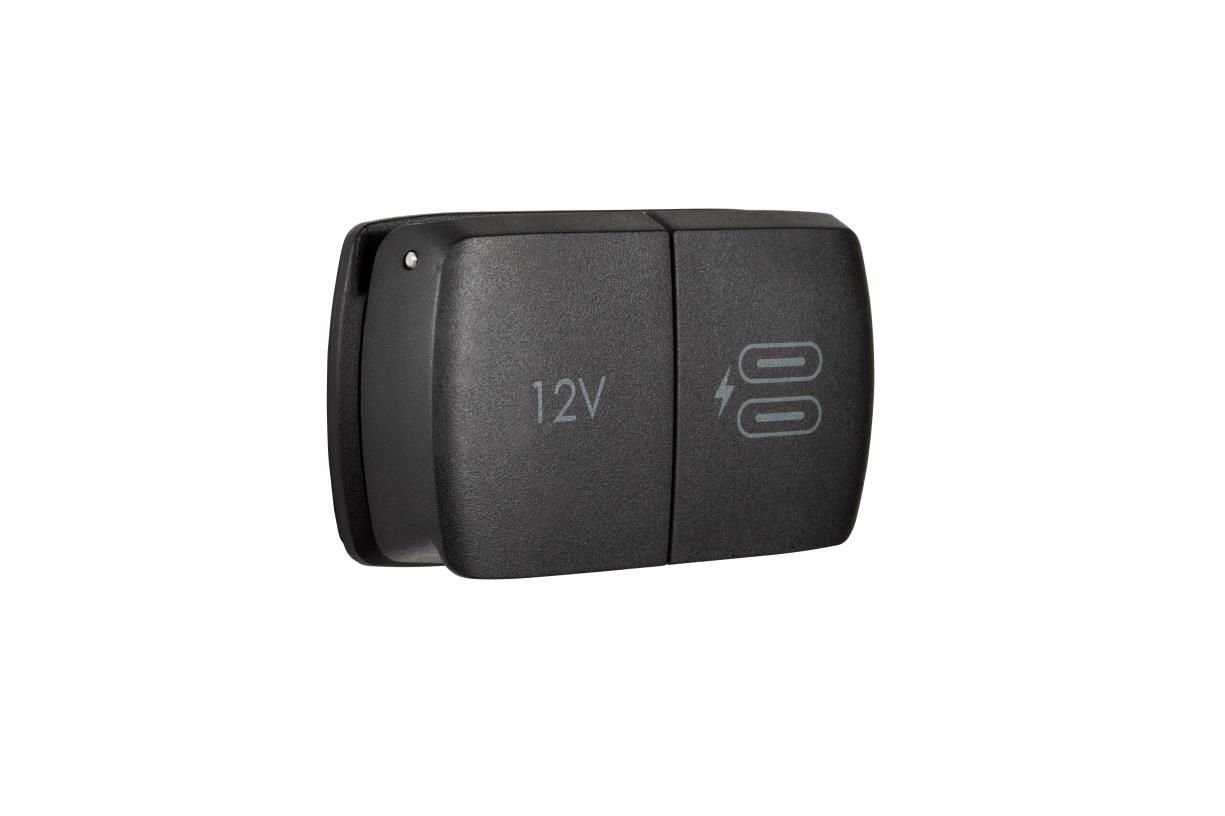

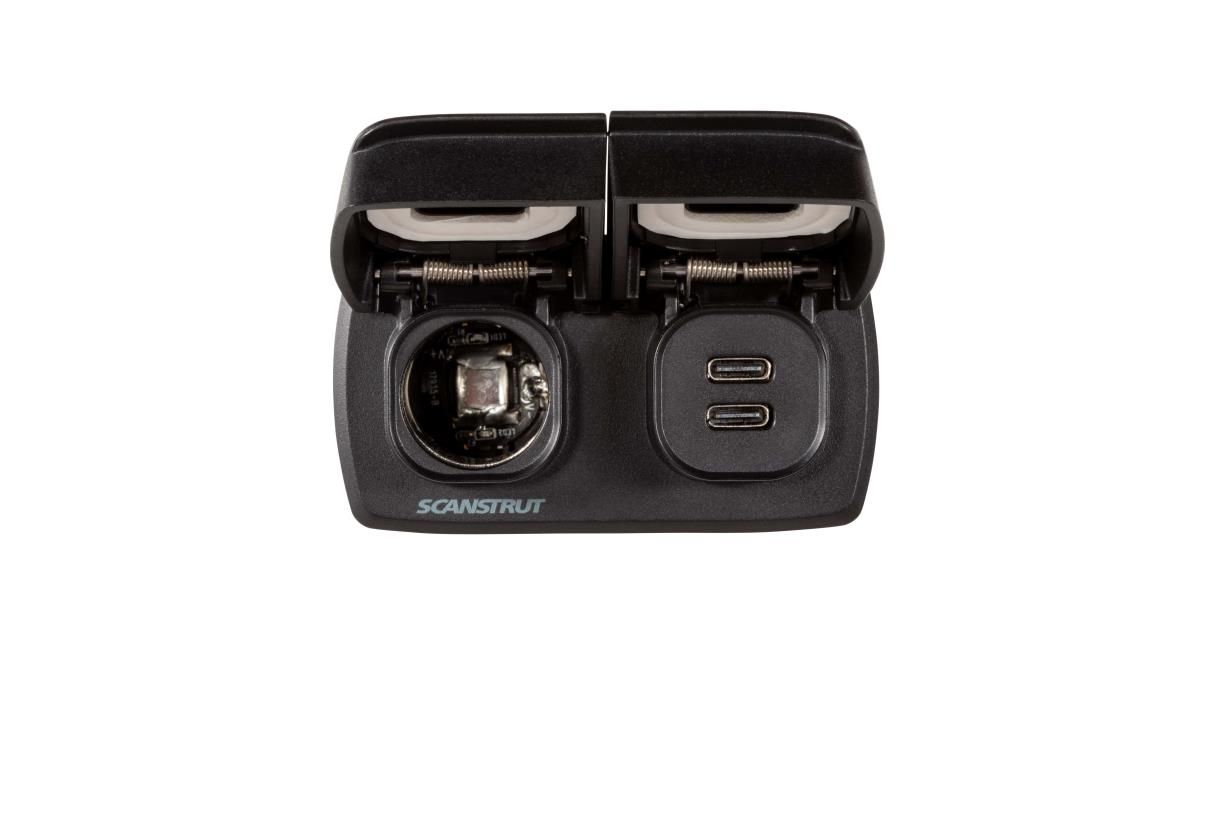

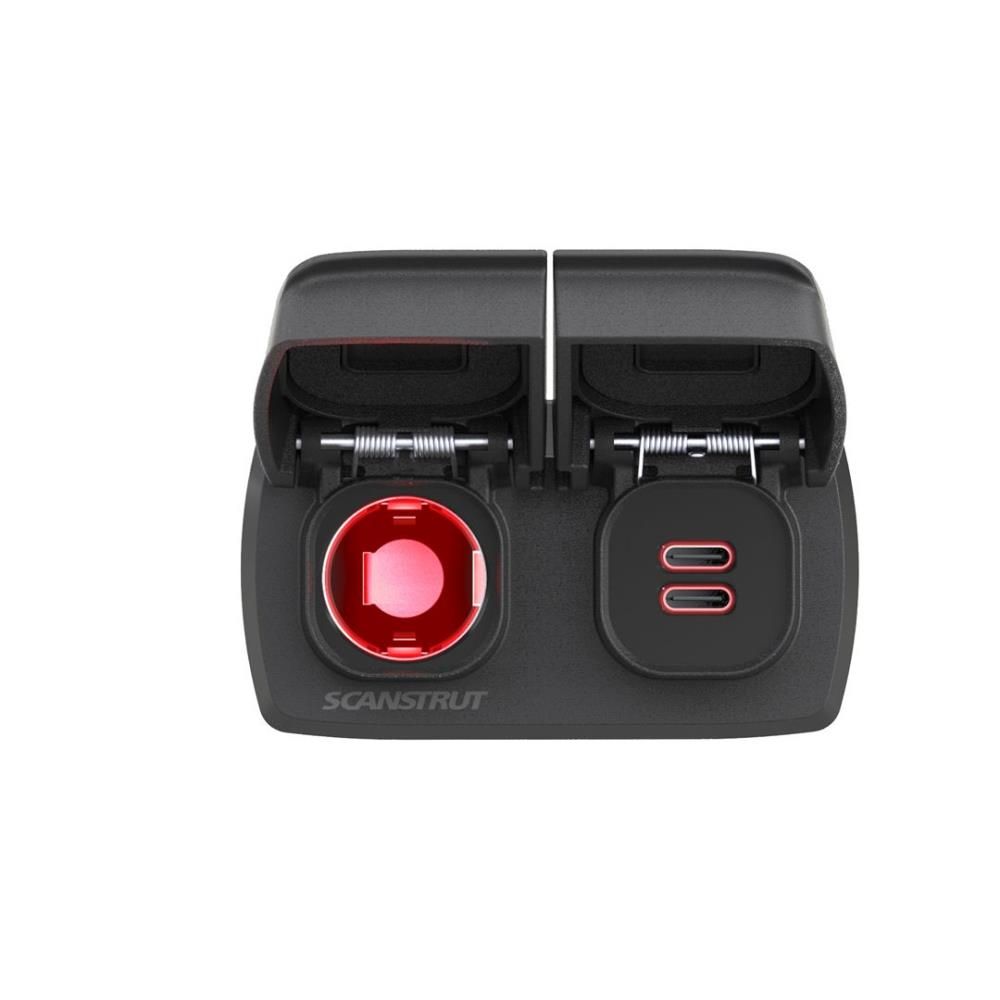

Scanstrut SC-MULTI-F1 - Flip Pro Multi USB-C Connection (x2) and 12V Junction Box
The Scanstrut SC-MULTI-F1 Flip Pro Multi USB-C and 12V Junction Box delivers advanced marine-grade charging for outdoor environments. Built for durability and high performance, it merges the power of the Flip Pro Max and 12V Power Socket into a unified solution. Its sleek, weather-resistant construction ensures reliable performance on the water while maintaining a modern appearance.

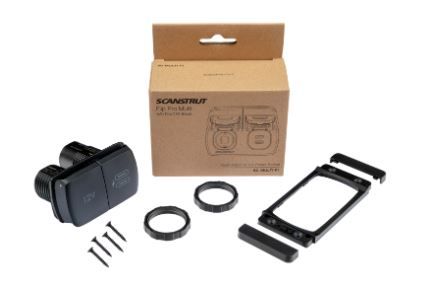

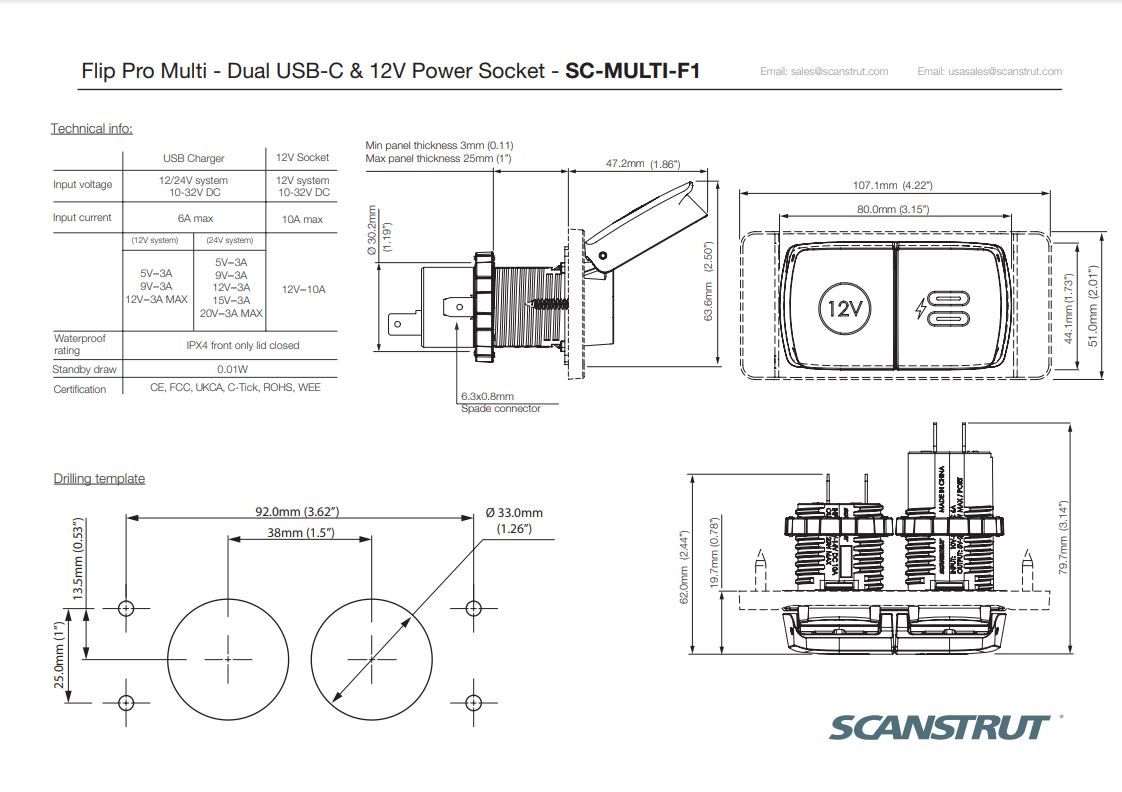

- Universal Compatibility: Designed for all USB-C connectors, supporting fast charging (up to 60W max) for two devices simultaneously. Comes with a front-fit bezel kit for straightforward installation.
- Marine Ready: Rated IPX4 waterproof with cover closed, featuring UV resistance and 316 stainless steel hinge and spring for long-lasting use in harsh marine environments.
Electrical Information:
- Power Output: 120–150W max (12V system only)
- Input Voltage: 10–32V DC (12/24V system)
- Input Current: Max 6A (10A fuse recommended)
- USB Output (Type C):
- 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX
- 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX
- Standby Draw: 0.01W
- Certification: CE, FCC, UKCA, C-Tick, ROHS, WEE
12V Power Socket Electrical Information:
- Input Voltage (12V system only): 10–15V DC
- Input Current: Max 10A
- Output: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX
- Standby Draw: 0.01W
- Certification: CE, ROHS, WEE, UKCA
Key Information:
- Use original device cables (C to C, or C to Lightning) for best charging performance.
- Phones charge at equal speed on 12V or 24V systems, but 24V is required to reach the full 60W power for laptops.
Item Number: SCSC-MULTI-F1
-
