ID
1300486
$ 103.20
1-2 weeks delivery time
-
+
The Vetus VLT24W White Voltmeter (24V) provides precise monitoring of voltage levels across a 16–32 VDC range and installs into a standard 52 mm cut-out with a 63 mm overall diameter. It features improved accuracy, double-glazed construction to minimise condensation, and dimmable LED illumination in yellow or red. The instrument includes redesigned high-quality bezels supplied in black and chrome.
- Description
- Ask a Question
-

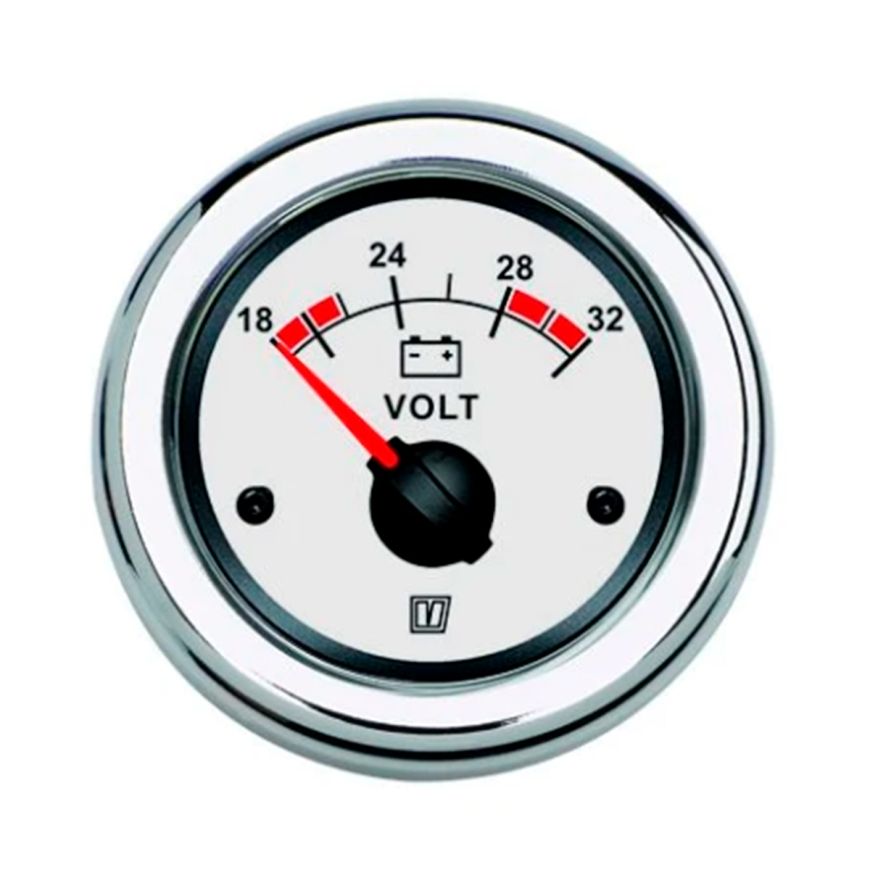

Vetus VLT24W White Voltmeter, 24V (20–32 V), 52 mm Cut-out
The Vetus VLT24W white voltmeter provides accurate, real-time monitoring of voltage levels in 24V electrical systems, making it an essential instrument for assessing battery condition and overall electrical performance. As part of the enhanced Vetus marine instrument range, it features increased measurement accuracy, re-engineered bezels of higher quality, and a double-glazed face designed to minimise condensation and ensure long-term reliability. The translucent white dial is illuminated from below by dimmable LEDs, offering selectable yellow or red illumination for optimal readability in any lighting environment.
Designed for straightforward installation into marine dashboards and control panels, the gauge fits a standard 52 mm cut-out and has a compact 63 mm overall diameter. It is supplied with both a solid black bezel and a premium chrome bezel, enabling flexible integration into a variety of dashboard designs. The instrument’s calibrated 16–32 VDC scale makes it ideal for monitoring 24V marine and vehicle power systems.
Main Features
- Precise monitoring of 24V electrical system voltage
- Translucent white dial with dimmable LED illumination
- Selectable yellow or red LED backlighting
- Double-glazed face to reduce condensation
- Updated bezel design supplied in black and chrome
- Fits standard 52 mm dashboard cut-out
- 63 mm overall diameter
- Compact and easy-to-read display
- Backward compatible with previous Vetus gauges
- Watertight construction for marine use
Technical Specifications
Dial Colour White Voltage 24 V DC Voltage Range 16–32 VDC Purpose Voltmeter Visible Dial Size 52 mm Cut-out Diameter 52 mm Overall Diameter 63 mm Ring Colour Black & Chrome Illumination Dimmable LED, yellow or red Watertight Yes Cut-out Diameter (inches) 2 3/63 Diameter (inches) 2 31/64
Product Highlights
- Greater accuracy thanks to the updated Vetus gauge platform
- Double-glazed design prevents condensation build-up
- High-quality bezels included for versatile installation
- Standardised gauge dimensions enable easy retrofitting
-
