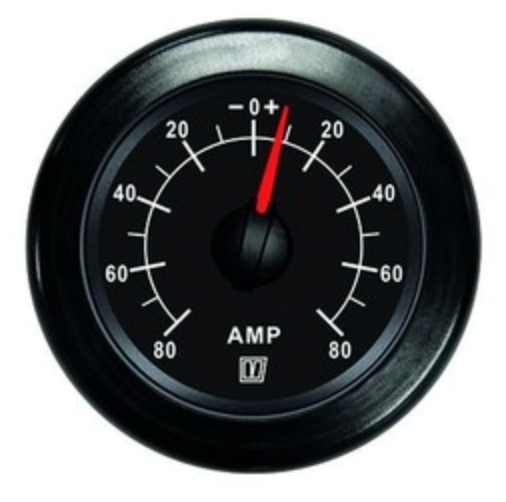

Vetus AMP080B - Ammeter, Black, 12/24V (+/- 80A), Cut-out Size Ø 52 mm (incl. Shunt)

Vetus AMP080B Black Ammeter, 12/24V, ±80A, 52 mm Cut-out (with Shunt)

The Vetus AMP080B ammeter provides high-precision monitoring of electrical charge and discharge currents in onboard 12V and 24V power systems. Calibrated for a ±80 A range, it measures charging currents up to +80 A and discharging currents down to -80 A, making it ideal for installations with higher electrical loads where accurate power assessment is critical. As part of the updated Vetus gauge series, it benefits from improved measurement accuracy, enhanced bezel design, and a durable double-glazed face that reduces condensation while maintaining long-term clarity.

The translucent black dial is illuminated by dimmable LEDs from below, offering selectable yellow or red illumination to ensure optimal visibility in all lighting environments. The instrument fits a standard 52 mm cut-out and features a 63 mm overall diameter. It is supplied with both a black bezel and a premium chrome bezel to accommodate a range of dashboard designs. A shunt is included to ensure correct current measurement and integration into the electrical system.

Main Features

• Accurate monitoring of ±80 A charging and discharging currents
• Shunt included for proper system configuration
• Translucent black dial with dimmable LED backlighting
• Selectable yellow or red LED illumination
• Double-glazed design minimises condensation
• Upgraded bezel design supplied in black and chrome
• Fits standard 52 mm panel cut-out
• 63 mm overall diameter
• Compact, easy-to-read scale
• Compatible with 12V and 24V systems
• Backward compatible with previous Vetus gauges
• Watertight construction for marine applications

Technical Specifications

Product Highlights

• Higher measurement accuracy with improved Vetus gauge architecture
• Double-glazed lens reduces fogging and increases durability
• Standardised 52 mm cut-out for easy retrofit installation
• Suitable for high-demand electrical systems up to ±80 A
