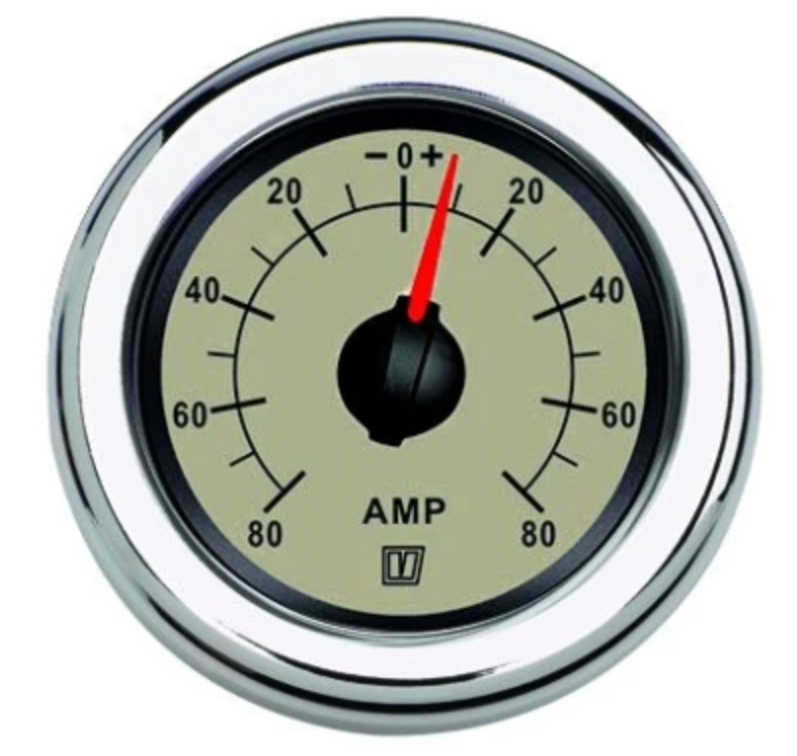

Vetus AMP080N - Ammeter, Cream, 12/24V (+/- 80A), Cut-out Size Ø 52 mm (incl. Shunt)

Vetus AMP080N Cream Ammeter, 12/24V, ±80A, 52 mm Cut-out (with Shunt)

The Vetus AMP080N cream ammeter delivers precise real-time monitoring of onboard electrical system performance in both 12V and 24V installations. With a calibrated range of ±80 A, it allows accurate measurement of charging currents up to +80 A and discharging currents down to -80 A, supporting reliable energy management and helping to prevent battery overload or deep discharge. As part of the updated Vetus instrument series, this model offers enhanced accuracy, improved bezel quality, and a durable double-glazed face that significantly reduces condensation while maintaining long-term clarity.

The translucent cream dial is illuminated from below by dimmable LEDs, providing selectable yellow or red illumination for optimal readability in any lighting conditions. The compact instrument fits a standard 52 mm cut-out and has a 63 mm overall diameter. Supplied with both a solid black bezel and a premium chrome bezel, it integrates easily into a variety of dashboard styles. A shunt is included to ensure correct system installation and accurate measurement of charge and discharge currents.

Main Features

• Accurate monitoring of ±80 A charging and discharging currents
• Shunt included for proper system integration
• Translucent cream dial with dimmable LED backlighting
• Selectable yellow or red LED illumination
• Double-glazed face reduces condensation
• Upgraded bezel design supplied in black and chrome
• Fits standard 52 mm dashboard cut-out
• 63 mm overall diameter
• Compact, clearly readable scale
• Compatible with 12V and 24V systems
• Backward compatible with earlier Vetus gauges
• Watertight design suitable for marine environments

Technical Specifications

Product Highlights

• Improved accuracy through updated Vetus gauge architecture
• Double-glazed construction ensures clear visibility and reduced condensation
• Standardised 52 mm cut-out enables simple retrofitting
• Ideal for high-demand electrical systems up to ±80 A
