ID
1300495
$ 141.97
1-2 weeks delivery time
-
+
The Vetus AMP080W White Ammeter (12/24V) provides precise monitoring of charge and discharge currents up to ±80 A and fits a standard 52 mm cut-out with a 63 mm overall diameter. It features higher accuracy, dimmable LED illumination in yellow or red, and a double-glazed design to minimise condensation. The instrument is supplied with upgraded black and chrome bezels and includes a shunt for correct installation.
- Description
- Ask a Question
-

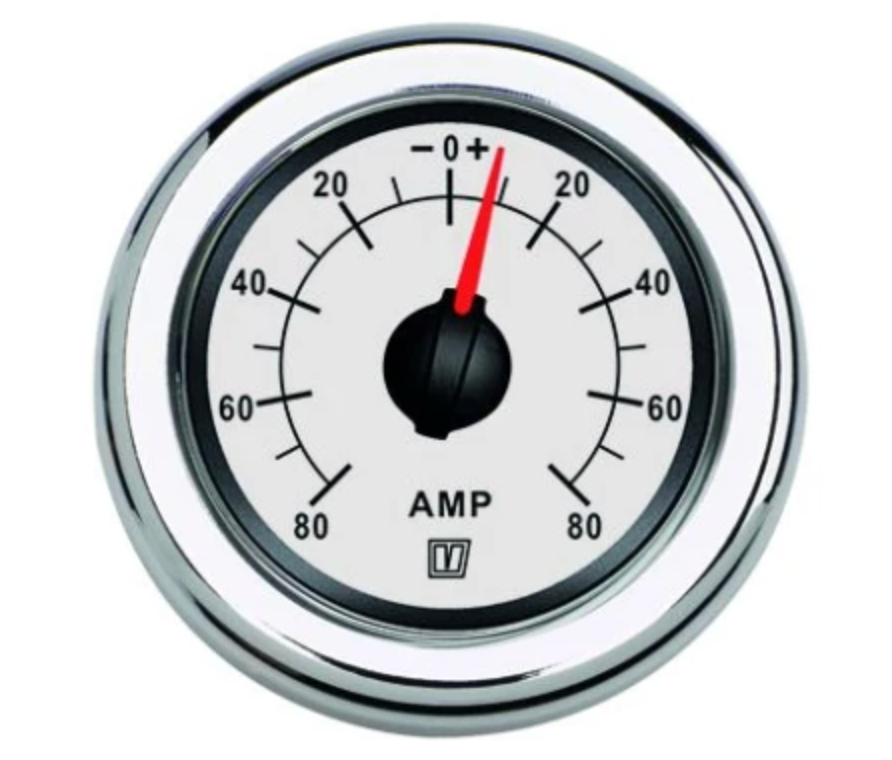

Vetus AMP080W White Ammeter, 12/24V, ±80A, 52 mm Cut-out (with Shunt)
The Vetus AMP080W white ammeter offers accurate and dependable monitoring of charging and discharging currents in 12V and 24V electrical systems. With a calibrated measurement range of ±80 A, it provides clear and immediate oversight of power flow, helping to prevent overcharging, deep discharge, and other issues that may affect battery life or onboard electrical performance. As part of the updated Vetus marine gauge range, the instrument incorporates enhanced accuracy, improved bezel quality, and a double-glazed face that significantly reduces condensation and enhances long-term durability.
The translucent white dial is illuminated from below by dimmable LEDs, giving the user a choice between yellow or red illumination to ensure optimal readability in all lighting environments. Designed for universal dashboard compatibility, the gauge fits a 52 mm cut-out and features a 63 mm overall diameter. It is supplied with both a black bezel and a premium chrome bezel for seamless installation in a wide range of instrument panels. A shunt is included to ensure accurate current measurement and proper electrical system integration.
Main Features
- Measures charging and discharging currents up to ±80 A
- Shunt included for proper system installation
- Translucent white dial with dimmable LED illumination
- Selectable yellow or red LED backlighting
- Double-glazed construction to minimise condensation
- Updated bezels supplied in black and chrome
- Fits standard 52 mm dashboard cut-out
- 63 mm overall diameter
- Easy-to-read scale for precise monitoring
- Compatible with 12V and 24V systems
- Backward compatible with previous Vetus gauges
- Watertight for marine applications
Technical Specifications
Dial Colour White Voltage 12/24 V DC Scale Calibration ±80 A Purpose Ammeter Visible Dial Size 52 mm Cut-out Diameter 52 mm Overall Diameter 63 mm Ring Colour Black & Chrome Illumination Dimmable LED, yellow or red Watertight Yes Cut-out Diameter (inches) 2 3/63 Diameter (inches) 2 31/64 Shunt Included
Product Highlights
- Ideal for high-demand electrical systems up to ±80 A
- Enhanced accuracy with the updated Vetus gauge platform
- Double-glazed lens prevents fogging and increases durability
- Standardised dimensions enable easy retrofit installation
-
