ID
1300400
$ 85.90
1-2 weeks delivery time
-
+
The Vetus TRIMN is a cream-face 12/24-volt trim gauge designed for Z-drive and trim-tab systems. With a 63 mm diameter and a Ø52 mm cut-out, it displays real-time trim position when paired with a compatible trim sensor. The updated Vetus gauge design includes higher accuracy, dimmable LED illumination in yellow or red, translucent dials, double-glazed anti-condensation construction, and redesigned bezels (black and chrome included). Suitable for new builds and dashboard replacements.
- Description
- Ask a Question
-

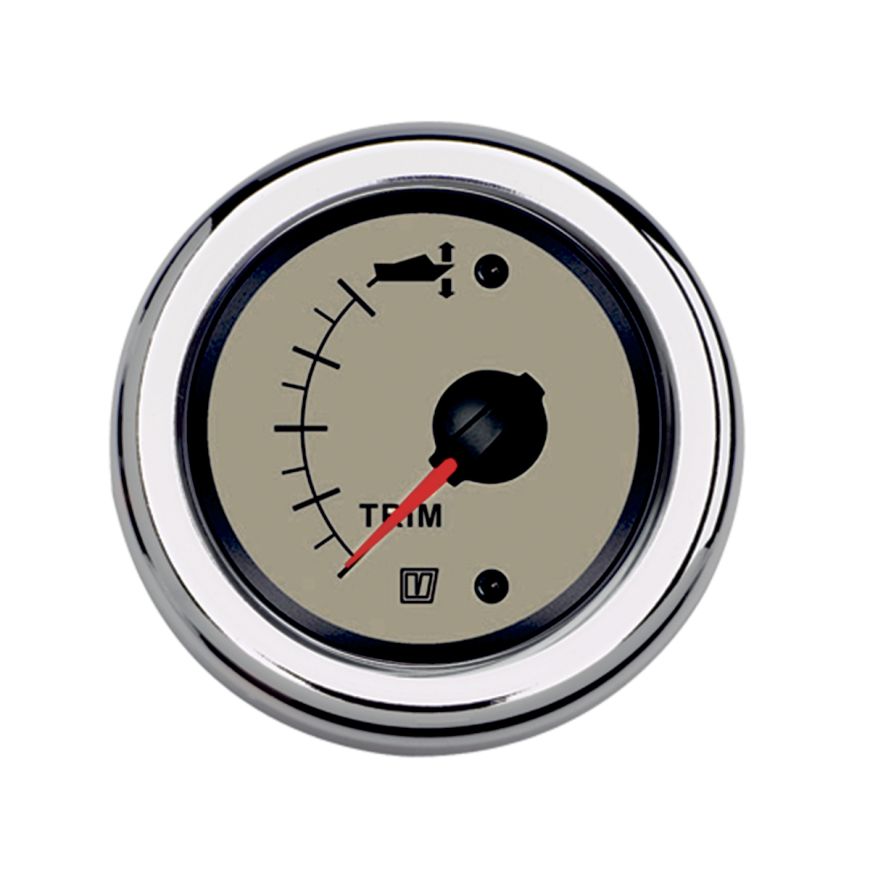

Vetus TRIMN Marine Trim Gauge for Z-Drive – Cream, 12/24 V, Ø63 mm
The Vetus TRIMN is a high-quality trim gauge engineered to monitor the position of a Z-drive or trim tabs in real time. Its updated Vetus design ensures improved accuracy, clearer visibility and enhanced durability. The cream translucent dial is illuminated from below by dimmable LEDs, allowing selection of yellow or red backlighting for optimal readability under all conditions. A double-glazed lens minimises condensation, improving long-term clarity and reliability.
Key Features
- Updated gauge design with increased accuracy and improved bezels.
- Cream translucent dial with LED backlighting (yellow or red, dimmable).
- Compact 63 mm outer diameter with standard Ø52 mm cut-out.
- Double-glazed lens for superior condensation resistance.
- Provides real-time indication of Z-drive or trim-tab position.
- Supplied with two bezels: solid black and premium chrome.
- Compatible with both 12 V and 24 V systems.
- Backwards compatible with earlier Vetus gauge series.
Technical Specifications
Specification Value Model TRIMN Purpose Trim gauge (Z-drive / trim tabs) Dial Colour Cream Voltage 12 / 24 V Diameter 63 mm Cut-out Diameter 52 mm Illumination Dimmable LED (yellow or red) Lens Double-glazed Bezel Options Black and Chrome (included) Water Protection Yes (marine-grade)
Installation Notes
The TRIMN gauge fits a standard Ø52 mm cut-out and can be used on 12 V or 24 V systems. It requires connection to a compatible trim sensor (not included) capable of providing the appropriate resistance range for trim indication. For optimal visibility, select the desired LED illumination colour (yellow or red) using the panel’s lighting control.
Summary
The Vetus TRIMN trim gauge provides dependable and accurate trim indication, combining a cream aesthetic with modernised Vetus gauge technology. Its double-glazed construction, LED lighting options, dual bezels and compact form make it an excellent choice for instrument panel upgrades or new vessel installations.
-
