ID
1300402
$ 103.20
1-2 weeks delivery time
-
+

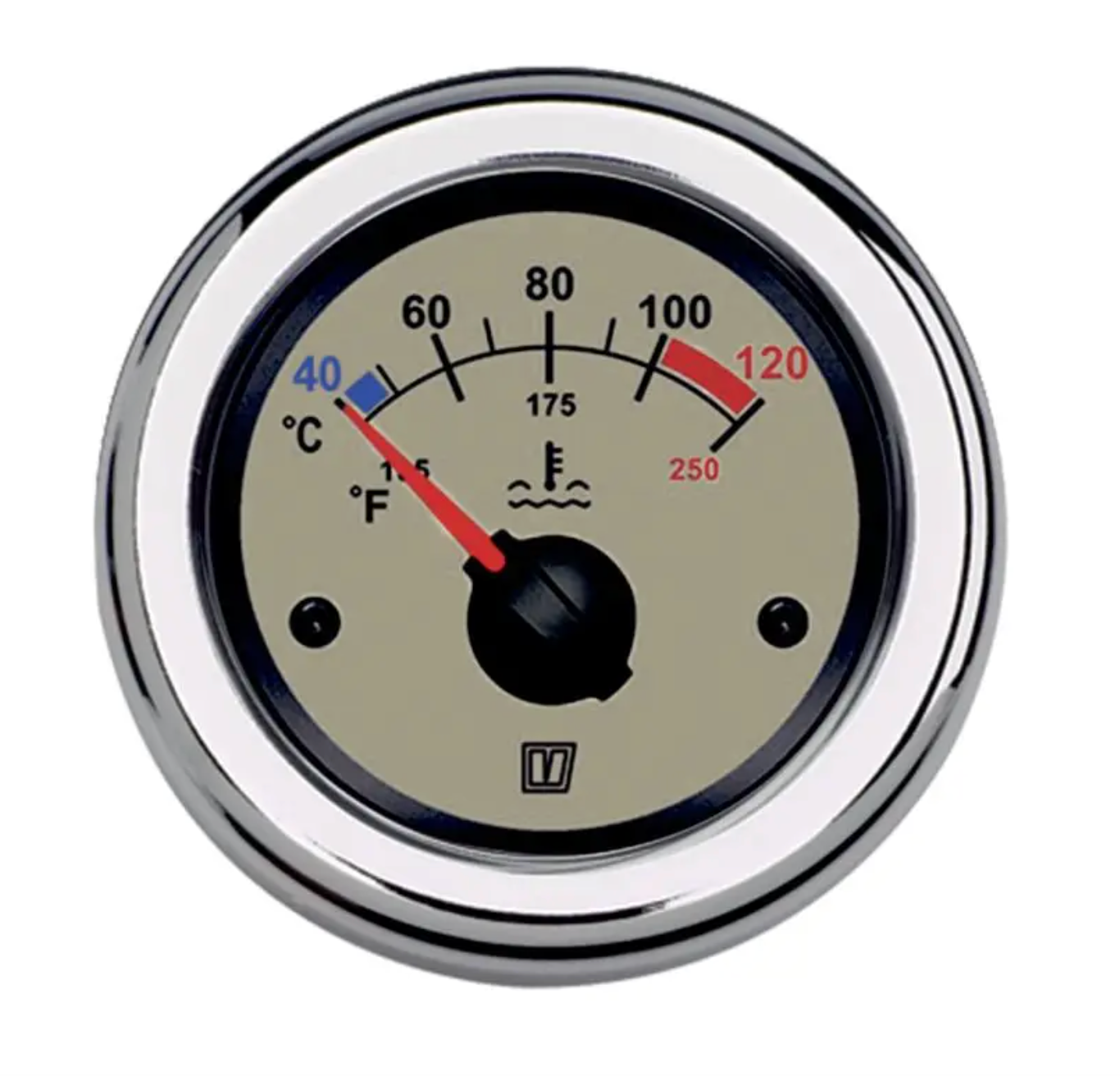

The Vetus TEMPN Cream Water Temperature Gauge (12/24V) provides precise temperature monitoring across a 40–120°C (105–250°F) scale and fits a 52 mm cut-out with a 63 mm overall diameter. It features improved accuracy, a double-glazed face to minimise condensation, dimmable LED illumination in yellow or red, and redesigned bezels supplied in both black and chrome. Installation is simplified with a 52 mm mounting system and a barrel screw fixing design. A compatible temperature sender is required and must be ordered separately.
- Description
- Ask a Question
-
Vetus TEMPN Cream Water Temperature Gauge, 12/24V, 40–120°C
The Vetus TEMPN cream water temperature gauge offers accurate monitoring of engine operating temperature, supporting a calibrated scale of 40–120°C (105–250°F). As part of the updated Vetus marine instrument range, it incorporates enhanced accuracy, redesigned bezels, and improved construction quality. The translucent cream dial is illuminated from below by dimmable LEDs, with adjustable yellow or red backlighting for reliable visibility in all lighting conditions. The double-glazed lens minimises condensation and enhances long-term durability.
Installation is straightforward: the gauge fits a standard 52 mm dashboard cut-out and uses a barrel screw fixing system for secure single-handed mounting in tight spaces. It is supplied with both a black and a premium chrome bezel for seamless panel integration. A compatible temperature sender is required for accurate operation and must be sourced separately.
Main Features
- Updated Vetus gauge design with improved accuracy
- Translucent cream dial with dimmable LED illumination
- LED lighting selectable in yellow or red
- Double-glazed construction to reduce condensation
- Supplied with black and chrome bezels
- Fits standard 52 mm cut-out, 63 mm overall diameter
- Easy installation with barrel screw fixing
- Dual voltage operation (12/24 V)
- Compatible senders (not included): TEMPSR120 (single pole), TEMPSR122 (double pole)
- Distinctive Vetus V logo
Technical Specifications
Dial Colour Cream Voltage 12/24 V DC Scale Calibration 40–120°C / 105–250°F Visible Dial Size 52 mm Cut-out Diameter 52 mm Overall Diameter 63 mm Ring Colour Black & Chrome (included) Illumination Dimmable LED, yellow or red Watertight Yes Installation Barrel screw fixing; fits standard 52 mm cut-out Compatible Senders (not included) TEMPSR120 (single pole, M14 x 1.5), TEMPSR122 (double pole, M14 x 1.5)
Product Highlights
- Easier fitting with improved mounting system
- Redesigned high-quality bezels included
- Standardised gauge dimensions allow simple replacement of earlier models
- Backward compatible with existing Vetus systems
-
