ID
1300398
$ 10.14
1-2 weeks delivery time
-
+

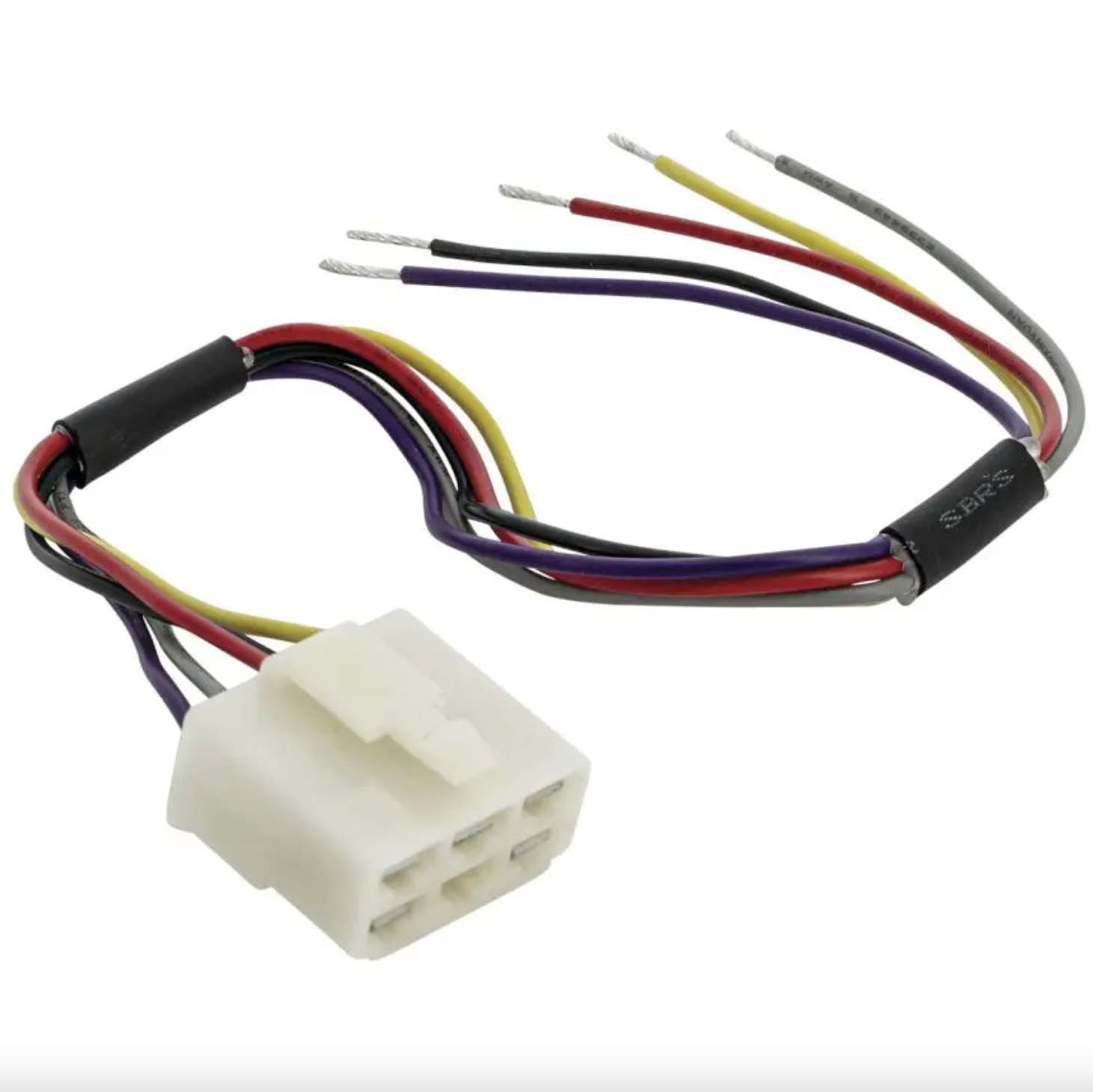

The Vetus AMCONN is a universal connector designed for Vetus marine instruments, equipped with colour-coded wires to simplify installation and troubleshooting in 12/24 V systems. The wiring layout includes dedicated leads for ground, supply voltage, signal input and dual-colour instrument illumination (yellow/red). Suitable for new installations and replacements.
- Description
- Ask a Question
-
Vetus AMCONN Universal Colour-Coded Connector for Marine Instruments
The Vetus AMCONN is a universal instrument connector designed to streamline wiring of Vetus marine gauges in both 12 V and 24 V electrical systems. Featuring colour-coded wires for quick identification, the connector significantly simplifies installation, fault tracing and gauge replacement. It is compatible with a wide range of Vetus instruments including tachometers, voltmeters, temperature gauges, pressure gauges and illumination circuits.
Key Features
- Universal connector for Vetus marine instruments.
- Colour-coded wiring for fast and error-free installation.
- Compatible with 12 V and 24 V systems.
- Supports instrument power, signal and dual-colour backlight circuits.
- Improves serviceability and simplifies troubleshooting.
- Suitable for new builds, refits and dashboard upgrades.
Wiring Identification
Wire Colour Function Black Ground (−) Purple Supply (+) Grey Signal Red Red illumination Yellow Yellow illumination
Technical Specifications
Specification Value Model AMCONN Application Universal connector for Vetus marine instruments Voltage 12 / 24 V Wiring Colour-coded for quick identification Illumination Support Dual colour (red / yellow) Ground & Supply Leads Black (−), Purple (+) Signal Lead Grey
Installation Notes
When connecting the AMCONN universal connector, ensure compatibility with the intended gauge type and system voltage (12 V or 24 V). Follow the colour-coded scheme for correct polarity, signal routing and illumination selection. The connector is ideal for simplifying gauge replacement and ensures uniform wiring practice across Vetus dashboards.
Summary
The Vetus AMCONN universal connector provides a practical, reliable and technician-friendly wiring solution for Vetus instruments. With clearly colour-coded wires and 12/24 V compatibility, it reduces installation errors, speeds up maintenance and enhances dashboard uniformity in marine electrical systems.
-
