The Vetus TEMPW White Water Temperature Gauge (12/24V) provides precise monitoring across a 40–120°C (105–250°F) scale and fits a 52 mm cut-out with a 63 mm overall diameter. Featuring improved accuracy, a double-glazed face to minimise condensation, and dimmable LED illumination in yellow or red, it ensures excellent readability in all lighting conditions. The gauge is supplied with black and chrome bezels and requires a compatible temperature sender (not included).
- Description
- Ask a Question
-

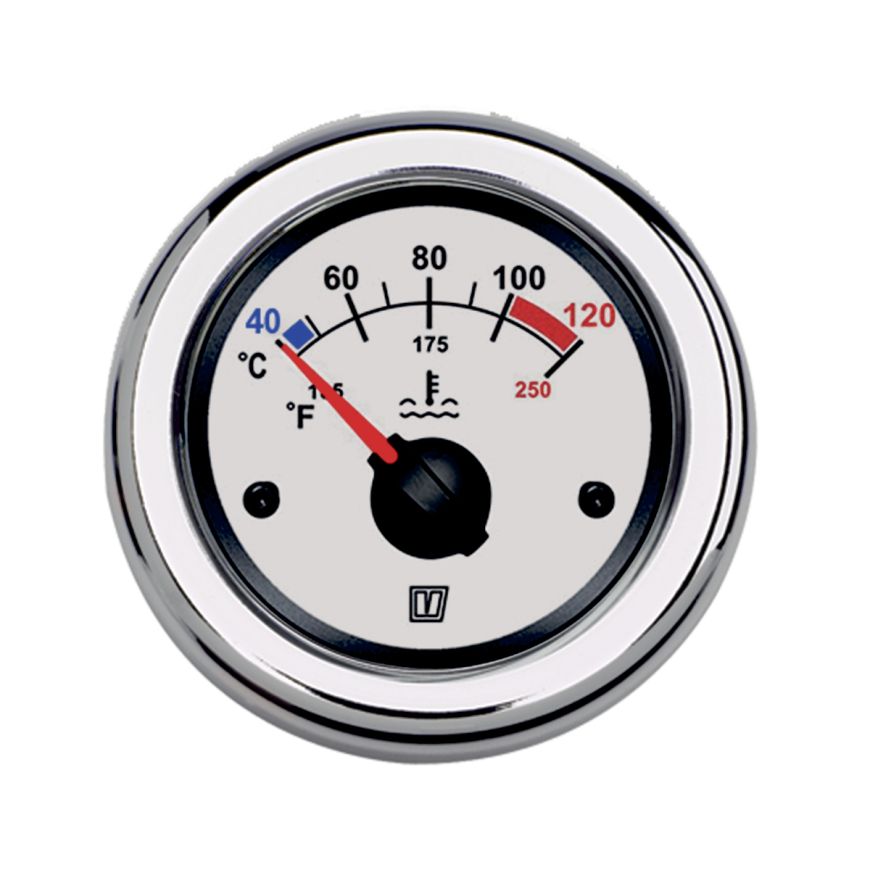

Vetus TEMPW White Water Temperature Gauge, 12/24V, 40–120°C
The Vetus TEMPW white water temperature gauge offers accurate and reliable monitoring of engine temperature within a calibrated range of 40–120°C (105–250°F). As part of the enhanced Vetus marine instrument range, it incorporates improved measurement accuracy and redesigned bezels for greater durability and refined appearance. The translucent white dial is illuminated from below by dimmable LEDs, providing selectable yellow or red backlighting for optimal visibility in all lighting conditions. The double-glazed construction reduces condensation and extends service life.
Designed for straightforward dashboard integration, the gauge fits a 52 mm cut-out and features a 63 mm overall diameter. It is supplied with both a solid black and a premium chrome bezel to match various panel layouts. A compatible temperature sender is required for precise operation and must be ordered separately.
Main Features
- Updated Vetus design with higher measurement accuracy
- Translucent white dial with dimmable LED illumination
- Selectable yellow or red backlighting
- Double-glazed face to minimise condensation
- Supplied with black and chrome bezels
- Fits standard 52 mm dashboard cut-out
- Compact 63 mm overall diameter
- Dual voltage capability (12/24 V)
- Compatible with optional temperature senders: TEMPSR120 (single pole) and TEMPSR122 (double pole)
Technical Specifications
Dial Colour White Voltage 12/24 V DC Scale Calibration 40–120°C / 105–250°F Visible Dial Size 52 mm Cut-out Diameter 52 mm Overall Diameter 63 mm Ring Colour Black & Chrome Illumination Dimmable LED, yellow or red Watertight Yes Cut-out Diameter (inches) 2 3/63 Diameter (inches) 2 31/64
Product Highlights
- Improved bezels with upgraded materials and construction
- Standardised dimensions for easy replacement of existing gauges
- Reliable readability due to dimmable LED backlighting
- Double-glazed face reduces condensation and improves durability
-
