The Vetus TRIMB is a compact 12/24-volt trim gauge designed for Z-drive and trim-tab systems, featuring a black dial, a 63 mm diameter and a Ø52 mm cut-out. It provides real-time indication of drive or tab position through a 10–180 Ohm trim sensor range. Updated Vetus gauge design delivers improved accuracy, dimmable LED illumination (yellow or red), redesigned bezels (black and chrome included), and double-glazed construction for condensation resistance. Requires the TRIMWR connection cable (ordered separately).
- Description
- Ask a Question
-

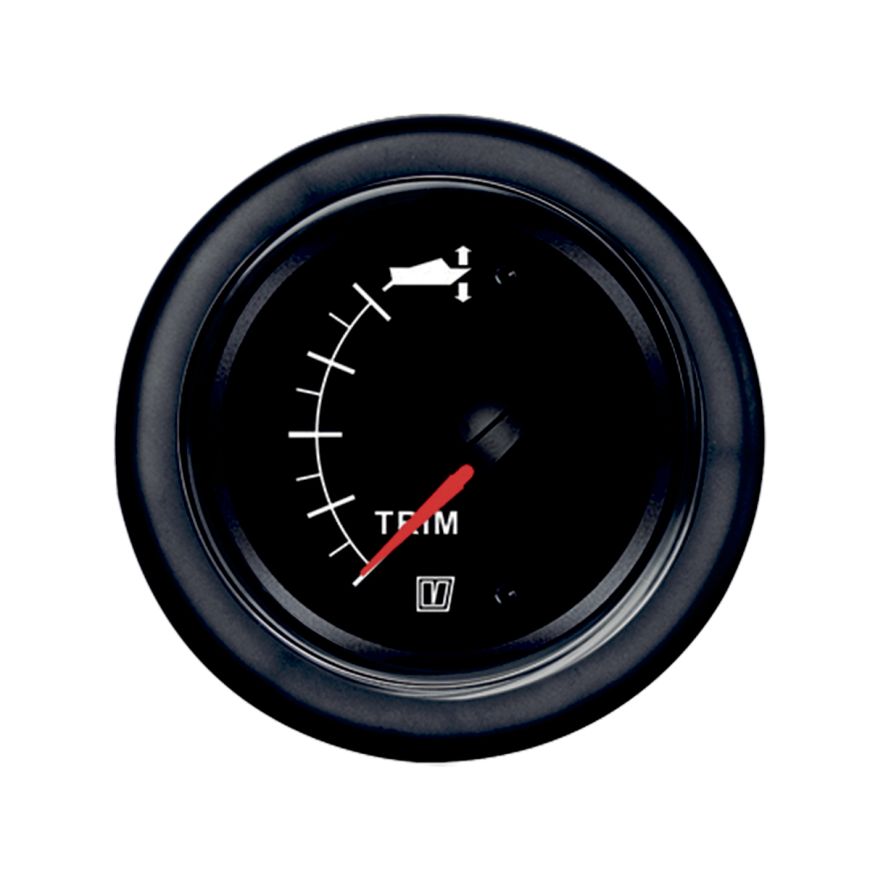

Vetus TRIMB Marine Trim Gauge for Z-Drive – Black, 12/24 V, Ø63 mm
The Vetus TRIMB is a precision trim gauge engineered for monitoring the position of Z-drives or trim tabs in real time. As part of the modernized Vetus instrument range, this gauge offers higher accuracy, improved illumination and redesigned bezels while retaining full backwards compatibility. Its double-glazed anti-condensation construction improves durability and ensures consistent clarity. The gauge connects to a trim sensor with a resistance range from 10 Ohm (trim down) to 180 Ohm (trim up), allowing the operator to optimize vessel trim, fuel efficiency and handling.
Key Features
- Updated Vetus trim gauge with enhanced accuracy and improved bezel quality.
- Black translucent dial with LED illumination from below (yellow or red, dimmable).
- Compact 63 mm diameter, fits a standard Ø52 mm cut-out.
- Double-glazed lens to minimise condensation and moisture infiltration.
- Real-time Z-drive or trim-tab position indication.
- Sensor resistance range: 10 Ohm (fully trimmed down) / 180 Ohm (fully trimmed up).
- Supplied with two bezels: solid black and premium chrome.
- Compatible with both 12 V and 24 V systems.
- Backwards compatible with earlier Vetus gauge generations.
- Requires TRIMWR connection cable (ordered separately).
Technical Specifications
Specification Value Model TRIMB Purpose Trim Gauge (Z-drive / Trim Tabs) Dial Colour Black Voltage 12 / 24 V Diameter 63 mm (2 31/64") Cut-out Diameter 52 mm (2 3/63") Visible Dial Size 52 mm Sensor Resistance 10–180 Ohm Illumination Dimmable LED (yellow or red) Lens Double-glazed Bezel Options Black and Chrome (included) Water Protection Yes (marine-grade)
Installation Notes
The TRIMB gauge installs into a Ø52 mm cut-out and operates on any 12 V or 24 V system. It must be connected to a trim sensor delivering a 10–180 Ohm resistance signal range. For best results, use the recommended Vetus TRIMWR connection cable (sold separately). Ensure wiring polarity and illumination selection (yellow or red) match your panel setup.
Summary
The Vetus TRIMB trim gauge offers reliable, high-accuracy monitoring of Z-drive and trim-tab position, making it ideal for performance optimisation and fuel-efficient vessel operation. Its modern illumination system, double-glazed front, compact size and included bezels make it suitable for both new installations and upgrades of existing dashboards.
-
