ID
1300401
$ 85.90
1-2 weeks delivery time
-
+
The Vetus TRIMW White Trim Gauge for Z-drive (12/24V) provides improved accuracy, redesigned high-quality bezels, and a double-glazed construction to minimize condensation. Featuring translucent dials with dimmable LED illumination in yellow or red, the gauge offers excellent readability and compatibility with standard 63 mm installations (52 mm cut-out). It includes black and chrome bezels, supports sensor resistance from 10 Ohm (down) to 180 Ohm (up), and can be individually calibrated.
- Description
- Ask a Question
-

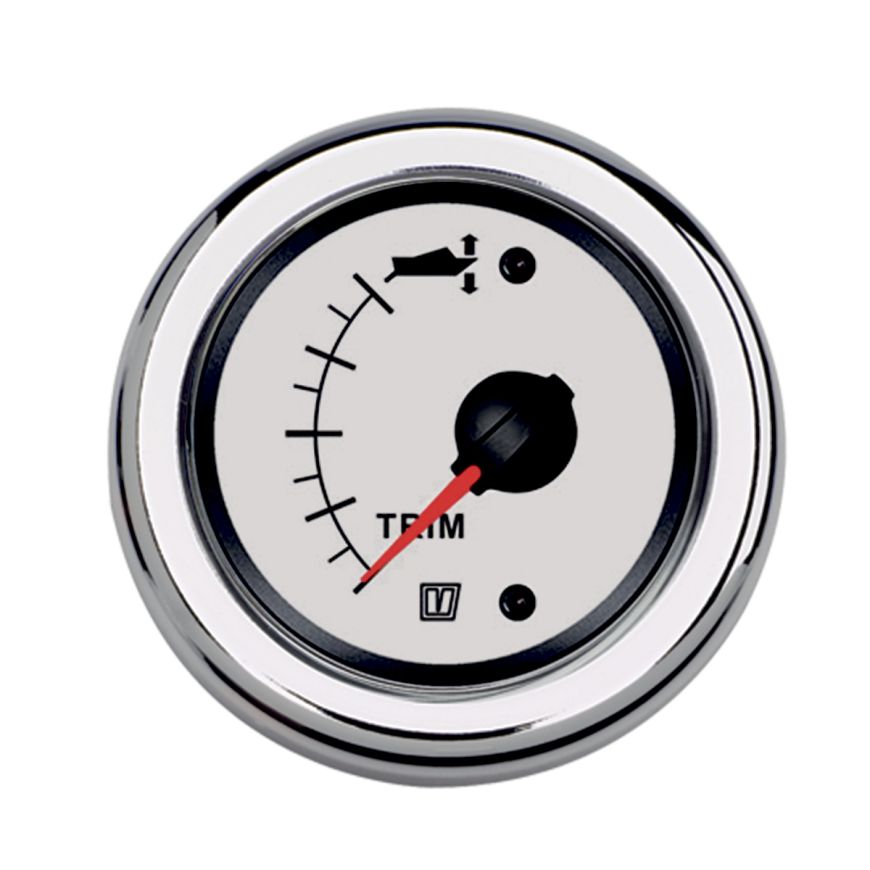

Vetus TRIMW White Trim Gauge for Z-Drive, 12/24V
The Vetus TRIMW trim gauge combines enhanced accuracy with upgraded construction for reliable Z-drive monitoring. Its translucent dial is illuminated from below by dimmable LEDs available in yellow or red, ensuring optimal readability in all lighting conditions. The double-glazed design reduces condensation, while the redesigned bezels—supplied in both black and premium chrome—provide improved durability and a refined appearance. This gauge is fully compatible with standardised marine panel dimensions and can replace most existing models without modifications.
Main Features
- Higher measurement accuracy
- Translucent dial with dimmable LED illumination (yellow or red)
- Double-glazed to minimise condensation
- Supplied with two bezels: solid black and premium chrome
- Compatible with standard panel sizes for easy replacement
- Individually calibratable
- Backward compatible (adapter required only for older-style tachometers)
- Suitable for stern-drive or trim sensor connection
- Sensor resistance: 10 Ohm (down) to 180 Ohm (up)
Technical Specifications
Colour White Voltage 12/24 V Purpose Trim gauge for Z-drive Diameter 63 mm Cut-out Diameter 52 mm Face Options Black, cream, or white Illumination Dimmable LED (yellow or red) Sensor Resistance Range 10 Ohm (down) – 180 Ohm (up) -
