Name: Vetus M445A605A - Mitsubishi M4.45 Marine Diesel Engine with TMC60 i=2.45
SKU: Vetus M445A605A
Availability: InStock

Vetus M445A605A - Mitsubishi M4.45 Marine Diesel Engine with TMC60 i=2.45

ID 976508

1-2 weeks delivery time

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

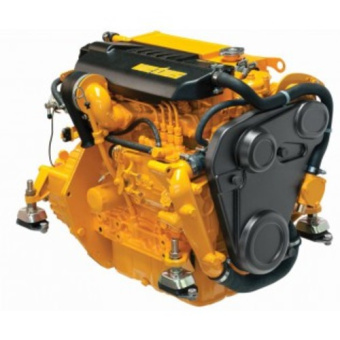

The Vetus M445A605A diesel propulsion engine set, identified as the Mitsubishi M4.45 with TMC60 i=2.45, is a 4-cylinder 4-stroke marine engine rated at 42 PS / 30.9 kW at 3,000 rpm with 1,758 cm³ displacement. It is specified with a heat exchanger cooling system (noted as a 2-circuit cooling system), swirl/prechamber combustion method, 12V electrical system with a 12V/110A alternator, and includes engine mounts (KSTEUN75) plus dashboard (MP22BS12A).

Description
Ask a Question

Vetus M445A605A M4.45 Diesel Engine Set with TMC60 Gearbox i=2.45

The Vetus M445A605A is a marine diesel engine package referred to as the Mitsubishi M4.45 with TMC60 reduction gearbox ratio i=2.45. It is configured for marine propulsion and is specified with a heat exchanger cooling arrangement and a 12V electrical system.

Compatibility

Vetus M4.45 marine diesel engine (Mitsubishi M4.45)
TMC60 gearbox with i=2.45

Technical Specifications

Engine Type	Diesel 4-Stroke
Model	Vetus M4.45
Power Output (ISO 3046-1)	42 PS / 30.9 kW
Max. Speed	3,000 rpm
Maximum Torque at 3,200 rpm	98 Nm
Cylinders	4
Displacement	1,758 cm³
Bore x Stroke	78 x 92 mm
Combustion Method	Swirl/Prechamber
Cooling System	Heat Exchanger (2-Circuit Cooling System Noted)
Maximum Installation Angle	15°
Alternator	12V/110A
Electrical System	12V
Weight with Gearbox	185 kg
Exhaust Diameter	50 mm
Cooling Water Inlet Diameter	20 mm
Diesel Inlet Diameter	8 mm
Diesel Return Diameter	8 mm
