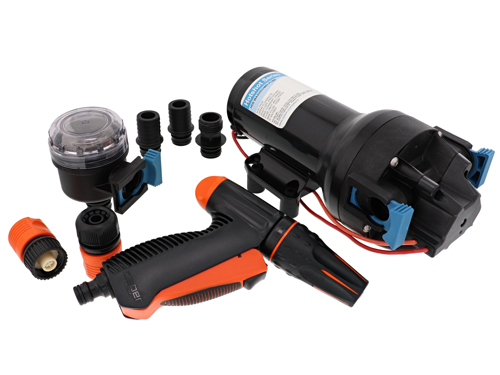

The Jabsco P601J-219N-3A HotShot HD6 washdown pump is a heavy-duty 12V DC diaphragm unit built for demanding deck cleaning in marine and RV use. It delivers up to 70 psi (4.8 bar) with a listed flow rate of 23 L/min (also specified as 22.7 L/min / 6 GPM), uses an integrated sealed pressure switch for automatic on-demand operation, and can self-prime up to 2.1 m while also running dry without damage. A powder-coated motor shell, cast aluminum components, and vibration-dampening feet enhance durability and quieter operation, and the package includes fittings, strainers, hose adapters, and marine-related approvals.
- Description
- Ask a Question
-
HotShot HD6 Jabsco P601J-219N-3A 12V Washdown Diaphragm Pump
The Jabsco P601J-219N-3A HotShot HD6 is a high-performance 12V DC diaphragm pump engineered for heavy-duty deck washing and other demanding washdown tasks. Its pressure-controlled, on-demand design helps maintain strong cleaning pressure, while robust construction and included accessories support straightforward installation in marine environments.
Application
- Heavy-duty deck wash and washdown applications
- Marine washdown use
- RV washdown applications
- Seawater suitable
Compatibility
- Replaces JAB-82605-0092
- Alternative to Flojet R8600144A
- Alternative to Flojet R8600-144A
- Alternative to Jabsco 82600-0092
- Alternative to Jabsco 82605-0092
Technical Specifications
Voltage 12V DC Flow Rate 23 L/min (also listed as 22.7 L/min / 6 GPM) Maximum Pressure 70 psi (4.8 bar) Operating Pressure Range (Pressure Switch) Cut-in 50 psi; cut-out 70 psi (4.8 bar) Maximum Current Draw 19 A Recommended Fuse Size 25 A Self-Priming (Dry) Up to 2.1 m (7 ft) Temperature Range (Ambient and Fluid) 0 C to 60 C (32 F to 140 F) Dimensions 259 mm (L) x 129 mm (W) x 119 mm (H) (also listed as 260 mm x 129 mm x 119 mm); 10.2 in x 5.1 in x 4.7 in Connections / Fittings Listed inlet/outlet fittings for 13 mm (1/2 in) ID hose and US Garden Hose Thread; also listed as 19 mm (3/4 in) bore hose and 3/4 in US Garden Hose Thread Water Resistance Rating IPx6 Approvals ISO 8846 Ignition Protected; CE Certified; RCM compliant Weight 8.06 kg (also listed as 4 kg; also listed as approximately 4.7 kg packed) Shipping Weight 6.00 kg Order Number 00320665 Supplier Code P601J-219N-3A Barcode 6718808420060 Product Portfolio Washdown Pumps
Product Details
- Pump type: 12V DC diaphragm pump (HotShot HD6)
- Operation: Integrated sealed pressure switch for automatic on-demand activation
- Construction: Powder-coated motor shell and cast aluminum components (cast aluminum lower housing is also specified)
- Diaphragm system: New 5-chamber diaphragm design is specified; EPDM valves and a Santoprene diaphragm are also specified
- Dry-run capability: Can run dry without damage due to diaphragm design
- Noise and vibration control: Vibration-dampening feet for quieter operation
Features
- High-pressure washdown performance up to 70 psi (4.8 bar)
- Self-priming up to 2.1 m (7 ft) for flexible installation
- Seawater-capable and water-resistant design (IPx6)
- Supplied with quick-connect hose barb and US Garden Hose Thread fittings
- Supplied with a 90 20-mesh strainer (an inline 40-mesh strainer is also specified)
- Supplied with trigger nozzle and hose adapters
-
