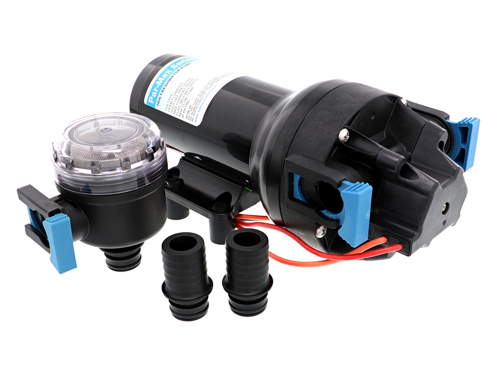

Jabsco P601J-218S-3A - ParMax HD6 12V 23ltr 60psi Water Pressure Pump, 4,1 bar, S/E

ID 1331548

$ 458.18

1-2 weeks delivery time

- +

Add to cart

The Jabsco P601J-218S-3A Par-Max HD6 pressure-controlled diaphragm pump delivers potable water at 12V DC with up to 23 liters per minute and a 60 psi (4.1 bar) cut-off pressure for consistent onboard supply. A built-in pulsation damper helps smooth flow and removes the need for an external pressure vessel, while thermal overload protection with automatic restart protects the motor. Self-priming up to 2.1 meters and dry-run capability support reliable operation across demanding installations, with 2 x 19 mm hose barb connections for straightforward plumbing.

Description
Ask a Question

Par-Max HD6 Pressure-Controlled Fresh Water Pump by Jabsco

The Jabsco P601J-218S-3A Par-Max HD6 is a heavy-duty, pressure-controlled diaphragm pump built to provide dependable potable water delivery. With integrated flow-smoothing features and protective motor electronics, it supports stable water pressure for multi-outlet systems where consistent performance matters.

Application

Potable water systems with up to four taps
Potable water systems with 4 or more outlets
Marine applications
RV applications
Agricultural applications
Industrial applications

Technical Specifications

Model Number	P601J-218S-3A
Supplier Code	P601J-218S-3A
Order Number	00320639
Barcode	671880841986
Voltage	12V DC
Flow Rate	23 liters per minute
Output (Open Flow)	22.7 liters per minute (6 GPM)
Maximum Pressure	60 psi
Cut-Off Pressure	4.1 bar (60 psi)
Pressure Switch Cut-In	Approx. 1.4 bar (20 psi)
Suction Height (Self-Priming)	2.1 meters
Pump Type	5-chamber aperture diaphragm
Diaphragm and Valves	5-chamber Santoprene diaphragm and EPDM valves
Fittings	2 x 19 mm hose barb
Ports and Strainer Included	Straight snap-in ports (2 x 19 mm / 3/4 in hose barb) and 1 x 40 mesh strainer
Maximum Amperage	15 A
Recommended Fuse Size	25 A
Dimensions (L x W x H)	259 x 130 x 119 mm
Dimensions (Length / Width / Height)	26.0 cm / 12.9 cm (excluding hose ports) / 11.9 cm
Weight	3.2 kg
Shipping Weight	5.00 kg
Guarantee	3 years
Brand	Jabsco
Product Portfolio	Water Pressure Systems

Product Details

Built-in pulsation damper to help smooth delivery and eliminate the need for an external pressure vessel
Thermal overload protection with automatic restart to help prevent motor damage
Self-priming up to 2.1 meters for easier installation and dependable pickup
Dry-run capable operation (runs dry without damage)
Bypass equipped to enable smoother flow and decrease cycling
Alternative to Jabsco 82600-0092

Features

Pressure-controlled water delivery up to 60 psi (4.1 bar)
5-chamber diaphragm design for consistent output
Ready-to-install connections with 2 x 19 mm hose barbs and included strainer
