ID
1331547
$ 458.18
1-2 weeks delivery time
-
+

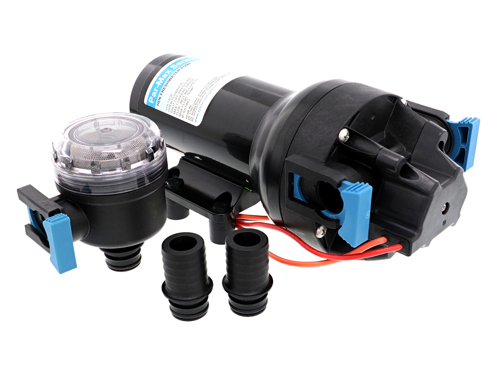

The Jabsco P601J-215S-3A heavy duty 12V diaphragm pump delivers up to 22.7 l/min (6 US gal/min) at open flow with pressure-switch control from approximately 20 psi cut-in to 40 psi cut-out for steady fresh water pressure. A 5-chamber Santoprene diaphragm with EPDM valves supports self-priming up to 2.1 m, safe dry-running, and smoother flow via the built-in bypass to reduce cycling. Supplied with 2 × 19 mm (3/4 in) snap-in hose barb ports and a 40 mesh strainer, it draws up to 15A (recommended fuse 25A) and fits potable water systems with four or more outlets.
- Description
- Ask a Question
-
Jabsco P601J-215S-3A 12V Heavy Duty Fresh Water Pressure Pump
The Jabsco P601J-215S-3A is a pressure-controlled diaphragm pump built for consistent fresh water delivery. Designed for potable water pressure systems, it combines smooth output with practical protection features to support demanding onboard and mobile installations.
Application
- Potable water systems with 4 or more outlets
- Marine applications
- RV applications
- Agricultural applications
- Industrial applications
Compatibility
- Alternative to Jabsco 82600-0292
Technical Specifications
Voltage 12V DC Flow Rate Up to 22.7 l/min (6 US gal/min) at open flow Pressure Cut-In Approx. 1.4 bar (20 psi) Pressure Cut-Out Approx. 2.8 bar (40 psi) Diaphragm Type 5-Chamber Santoprene Valve Material EPDM Self-Priming Height Up to 2.1 m Dry-Run Capability Runs dry without damage Bypass Included Ports 2 × 19 mm (3/4 in) hose barb snap-in ports Strainer 1 × 40 mesh strainer Max Amperage 15A Recommended Fuse 25A Dimensions (H × W × L) 119 × 129 × 260 mm Shipping Weight 5.00 kg
Product Details
- Product portfolio: Water Pressure Systems
- Order number: 00320637
- Supplier code: P601J-215S-3A
- Barcode: 671880841979
Features
- Pressure switch control for automatic on/off operation
- Built-in bypass helps reduce cycling and supports smoother flow
- Self-priming design supports installations where the tank is below the pump
- Supplied with snap-in hose ports and a 40 mesh strainer for added protection
-
