ID
1331551
$ 458.18
1-2 weeks delivery time
-
+
The Jabsco P602J-215S-3A Par-Max HD6 fresh water pressure pump delivers pressure-controlled potable water supply for up to four taps, with 24V operation and up to 23 liters per minute at 40 psi (2.8 bar). A built-in pulsation damper eliminates the need for an external pressure vessel, while thermal overload protection with automatic restart helps protect the pump during overheating. Its diaphragm design supports dry running, and it includes 2 x 19 mm hose connections plus a 40 mesh strainer for practical installation.
- Description
- Ask a Question
-

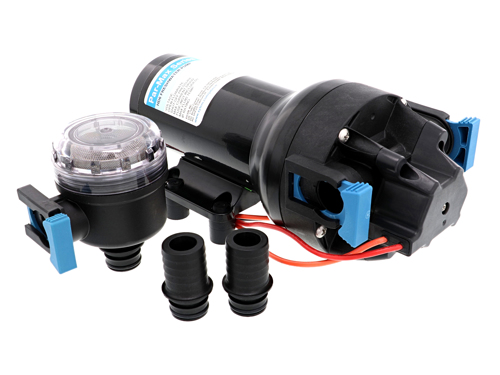

Jabsco P602J-215S-3A Par-Max HD6 Pressure-Controlled Diaphragm Pump
The Jabsco P602J-215S-3A Par-Max HD6 is a self-priming, pressure-controlled diaphragm pump designed for fresh drinking water supply. Built for demanding use, it supports multi-outlet systems and helps deliver smoother flow thanks to its integrated pulsation control and bypass design.
Application
- Fresh drinking (potable) water supply
- Suitable for supplying up to four taps
- Typically used for potable water systems with 4 or more outlets
- Marine applications
- RV applications
- Agricultural applications
- Industrial applications
Technical Specifications
Voltage 24 V Flow Rate 23 liters per minute Output (Open Flow) Up to 22.7 liters per minute (6 GPM) Maximum Pressure 40 psi (2.8 bar) Pressure Switch Cuts in at approximately 1.4 bar (20 psi) and cuts out at 2.8 bar (40 psi) Suction Height (Self-Priming) 2.1 meters Dimensions (L x W x H) 259 mm x 130 mm x 119 mm Pump Type 5 chamber aperture Diaphragm / Valves 5-chamber Santoprene diaphragm and EPDM valves Fittings 2 x 19 mm hose connections (3/4 inch hose barb); straight snap-in ports Strainer 1 x 40 mesh strainer Maximum Current 7 A Recommended Fuse Size 15 A Weight 3.2 kg Shipping Weight 5.00 kg Guarantee 3 years Order Number 00320638 Supplier Code P602J-215S-3A Barcode 671880841993 Product Portfolio Water Pressure Systems
Product Details
- Built-in pulsation damper helps eliminate the need for an external pressure vessel
- Thermal overload protection stops the pump when overheating occurs and restarts automatically
- Diaphragm design supports dry running without damage
- Bypass-equipped design enables smoother flow and decreases cycling
Features
- Pressure-controlled operation for fresh water systems
- Self-priming capability up to 2.1 meters
- Includes 2 x 19 mm hose connections and a 40 mesh strainer
-
