ID
1331556
$ 224.30
1-2 weeks delivery time
-
+
The Jabsco Q401J-112S-3A Par-Max HD4 pressure-controlled drinking water pump delivers 12V performance with 15.1 L/min flow at 1.7 bar (25 PSI) to support up to four taps. A built-in pulsation damper and bypass help smooth water delivery and reduce cycling, while the 4-chamber Santoprene diaphragm with EPDM valves is designed to run dry without damage. Self-priming capability and thermal overload protection with automatic restart enhance reliable operation in marine, RV, agricultural, and other demanding installations.
- Description
- Ask a Question
-

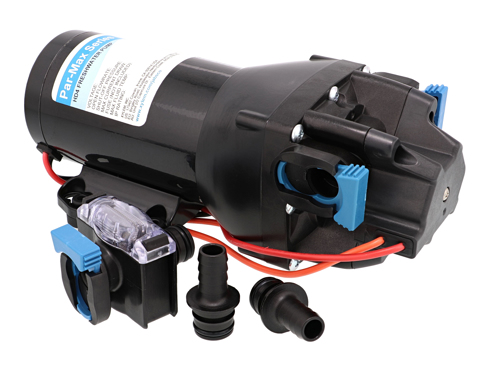

Jabsco Q401J-112S-3A Par-Max HD4 Water Pressure Pump Unit
The Jabsco Q401J-112S-3A Par-Max HD4 is a compact, pressure-controlled 12V drinking water pump built to deliver consistent flow for onboard and mobile water systems. With an integrated pulsation damper and a bypass for smoother operation, it supports multi-outlet installations while maintaining steady performance.
Application
- Potable water systems with 304 outlets
- Suitable for up to four taps
- Marine use
- RV use
- Agricultural use
Technical Specifications
Order Number 00320629 Supplier Code Q401J-112S-3A Barcode 671880841856 Voltage 12 Volts Flow Rate 15.1 liters per minute (4 GPM stated) Pressure 1.7 bar / 25 PSI Pressure Switch Cuts In at Approx. 0.7 bar (10 PSI); Cuts Out at 1.7 bar (25 PSI) Self-Priming Up to 1.8 m Suction Height 2.4 m Pump Type 4 chamber aperture Diaphragm and Valves 4-chamber Santoprene diaphragm and EPDM valves Fittings 2 x 13 mm hose Ports and Strainer Straight snap-in ports 2 x 13 mm (1/2 in) hose barb; 1 x 40 mesh mini strainer Maximum Current 8 A Recommended Fuse Size 15 A Dimensions (L x W x H) 240 x 104 x 97 mm Additional Dimensions Length 23.9 cm; Width 10.4 cm (excluding hose ports); Height 9.7 cm Weight 2.5 kg Shipping Weight 4.30 kg Warranty 3 years Product Portfolio Water Pressure Systems
Product Details
- Built-in pulsation damper eliminates the need for an external pressure vessel (as stated).
- Dry-running capable membrane design helps prevent damage when run without water.
- Thermal overload protection with automatic restart supports safer operation.
- Bypass design enables smoother flow and decreases cycling.
Features
- Pressure-controlled 12V water pump for drinking water systems
- Delivers 15.1 L/min at 1.7 bar (25 PSI)
- Designed for multi-outlet installations (up to four taps)
- Includes straight snap-in ports and a 40 mesh mini strainer
- Alternative to Jabsco 82400-0392
- Alternative to Jabsco 31620-0292
- Alternative to Jabsco 32600-0292
-
