The Jabsco P602J-218S-3A Par-Max HD6 pressure-controlled diaphragm pump delivers 24V DC fresh water distribution to up to four taps with a stated flow of 23 L/min (also listed as 22.7 L/min / 6 GPM) and 60 psi cut-off pressure. A built-in pulsation damper smooths flow without an external pressure vessel, while thermal overload protection with auto restart helps protect the motor under load. Its 5-chamber diaphragm design supports dry running, includes 2 x 19 mm hose fittings, and is specified with self-priming up to 2.1 m for flexible installation in marine, RV, and industrial systems.
- Description
- Ask a Question
-

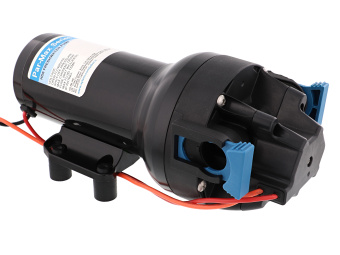

Jabsco P602J-218S-3A Par-Max HD6 24V Diaphragm Pressure Pump
Built for high-demand onboard and mobile water systems, this Par-Max HD6 pressure-controlled pump provides consistent delivery for fresh water distribution. It combines a self-priming diaphragm design with integrated flow smoothing and protective motor functions to support reliable operation in challenging environments.
Application
- Fresh water distribution to up to four taps
- Potable water systems with four or more outlets
- Marine systems
- RV systems
- Industrial systems
- Suitable for use with seawater (as stated)
Technical Specifications
Order Number 00320640 Supplier Code P602J-218S-3A Barcode 671880842037 Voltage 24V DC Flow Rate 23 L/min (also listed as 22.7 L/min / 6 GPM) Pressure 60 psi cut-off (listed as 4.1 bar); maximum pressure also stated as 60 psi (4.8 bar) Pressure Switch Cuts in at approx. 1.4 bar (20 psi); cuts out at 4.1 bar (60 psi) Self-Priming / Suction Height Up to 2.1 m (7 ft) vertical lift Pump Type 5-chamber aperture; 5-chamber diaphragm Diaphragm and Valves 5-chamber Santoprene diaphragm and EPDM valves Connections / Fittings 2 x 19 mm hose fittings; 19 mm (3/4 in) bore hose; straight snap-in ports Strainer 1 x 40 mesh inlet strainer included Amperage and Fuse Max. 8 A; fuse size 15 A Power Consumption 80 W Water Resistance Rating IPx6 Dimensions (L x W x H) 259 x 130 x 119 mm; also listed as 260 x 129 x 119 mm (excluding hose ports) Noise Level Below 70 dB under normal operation Product Weight 3.2 kg (approx. 3.7 kg packed) Shipping Weight 5.00 kg Packaged Dimensions L 40.00 x H 14.00 x W 16.00 cm Warranty 3 years
Product Details
- Self-priming diaphragm pump designed to support high-lift installations up to 2.1 m
- Pressure-controlled operation with a stated 60 psi cut-off for stable delivery to multiple outlets
- Thermal overload protection shuts the pump down under overheating and restarts automatically
- Dry-run capable membrane design helps prevent damage if the supply runs out
- Integrated pulsation damper reduces cycling and eliminates the need for an external pressure vessel
- Bypass equipped to enable smoother flow and decrease cycling
- Heavy-duty build with a coated motor and cast aluminum lower housing (as stated)

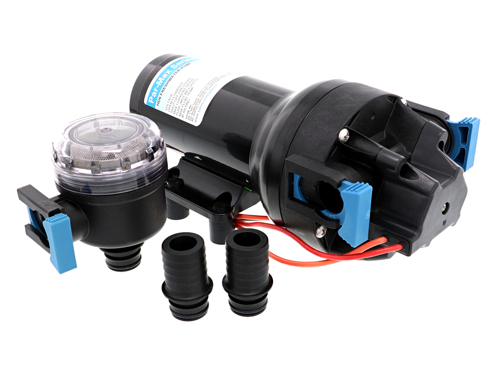

- Port fittings and inlet strainer included for straightforward installation
Features
- Designed for fresh water distribution to up to four taps
- 5-chamber diaphragm supports dry running without damage
- Water-resistant IPx6 rating for wet-area reliability
- Quiet operation under load with reduced vibration and noise (as stated)
- Alternative to Jabsco 82600-0094 (as stated)
- Product portfolio listed as Water Pressure Systems and Washdown Pumps
-
