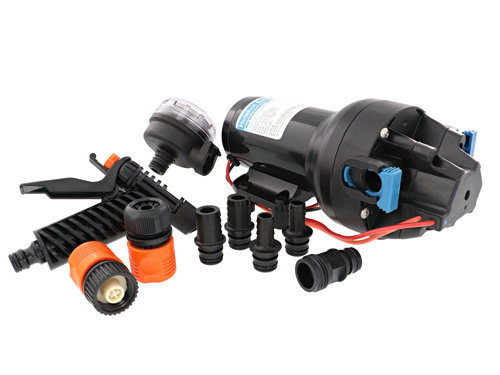

The Jabsco P501J-119N-3A HotShot HD5 washdown diaphragm pump delivers on-demand deck and equipment cleaning with 12V DC power, 19 liters per minute (5 US gallons per minute) flow, and up to 70 psi (4.8 bar) pressure. A sealed pressure switch enables automatic operation, while vibration-dampening feet support quieter running. Built for demanding use, it self-primes up to 2.1 meters and dry self-primes up to 2.4 meters (8 feet), can run dry without damage, and is seawater compatible; quick connect fittings, a trigger nozzle, and an inline 40 mesh strainer are supplied for easy installation and use.
- Description
- Ask a Question
-
Jabsco P501J-119N-3A HotShot HD5 12V Washdown Pressure Pump
The Jabsco HotShot HD5 is a heavy-duty, pressure-controlled diaphragm pump built for washdown tasks where consistent pressure and rugged construction matter. Designed for demanding cleaning work, it combines automatic on-demand operation with practical installation hardware, making it well suited for tough marine conditions and other challenging environments.
Application
- Marine washdown
- RV washdown
- Agricultural washdown
Compatibility
- Seawater compatible
- Fittings for 13 mm (1/2 in) inside-diameter hose
- Fittings for 19 mm (3/4 in) hose
- US garden hose thread connection
Technical Specifications
Brand Jabsco Model Number P501J-119N-3A Order Number 00320664 Supplier Code P501J-119N-3A Barcode 671880841962 Voltage 12V DC Flow Rate 19 liters per minute (5 US gallons per minute) Maximum Pressure 70 psi (4.8 bar) Cut-In Pressure 60 psi Cut-Out Pressure 70 psi (4.8 bar) Maximum Current 16.0 A Recommended Fuse 25 A Self-Priming Up to 2.1 m Dry Self-Priming Up to 2.4 m (8 ft) Operating Temperature 0 C to 60 C (32 F to 140 F) Dimensions (L x W x H) 244 x 127 x 119 mm (9.6 x 5.0 x 4.7 in) Dimensions (Without Ports) Length 24.5 cm; Width 12.7 cm; Height 11.9 cm Weight 3.265 kg Shipping Weight 5.50 kg Approvals ISO 8846 Ignition Protected; CE Certified; RCM Compliant Product Portfolio Washdown Pumps
Product Details
- Pump Type: Diaphragm washdown pump
- Operation: Pressure-controlled with integrated sealed pressure switch for automatic on-demand use
- Construction: Powder-coated motor shell with cast aluminum components
- Valves and Diaphragm: EPDM valves and Santoprene diaphragm
- Noise and Vibration Control: Vibration-dampening feet
- Dry-Run Capability: Can run dry without damage
- Alternative To: Jabsco 82505-0092
- Alternative To: Jabsco 32700-0092
- Alternative To: Jabsco 32700-0392
Features
- Heavy-duty 12V washdown performance up to 70 psi (4.8 bar)
- Quick connect fittings for faster setup
- Supplied with inline 40 mesh strainer
- Supplied with trigger nozzle and adapters
-
