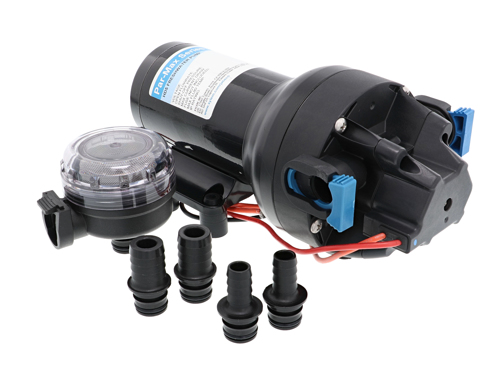

Jabsco P501J-118S-3A - Par Max Heavy Duty Pressure Controlled Diaphragm Pump 12V

Jabsco P501J-118S-3A - Par Max Heavy Duty Pressure Controlled Diaphragm Pump 12V

The Jabsco P501J-118S-3A Par Max Heavy Duty Pressure Controlled Diaphragm Pump is a reliable, high-performance 12V DC pump designed for demanding applications in marine, industrial, and agricultural environments. With a maximum pressure of 60 psi (4.8 bar) and a flow rate of 18.9 liters per minute (5 gallons per minute), this pump delivers high pressure and excellent flow rates for various systems. The innovative 5-chamber diaphragm design allows for dry running capabilities, making it ideal for continuous operation in situations where water may not always be present. The pump is also self-priming up to 2.4 meters (8 feet) and features an IPx6 waterproof rating, ensuring durability even in the harshest conditions. The heavy-duty, coated motor and cast aluminum housing further enhance its longevity and resistance to wear, especially at high pressures.

Key Features

• 5-chamber diaphragm design for high flow and pressure performance.
• 12V DC operation for versatile use in remote and off-grid applications.
• Maximum pressure of 60 psi (4.8 bar) for high-pressure systems.
• Flow rate of up to 18.9 liters/minute (5 gallons/minute) for efficient water transfer.
• Self-priming up to 2.4 meters (8 feet) for flexible installation options.
• Dry running diaphragm allows for protection against damage when the pump is activated without water.
• IPx6 waterproof rating for reliable operation in wet environments, including seawater applications.
• Heavy-duty motor and cast aluminum housing designed for long-term durability and extended service life.
• Supplied with inlet strainer and port fittings for easy installation.

Specifications

• Product Type: Par Max Heavy Duty Diaphragm Pump
• Voltage: 12V DC
• Maximum Pressure: 60 psi (4.8 bar)
• Output: 18.9 liters/minute (5 gallons/minute)
• Connections: For 13mm (1/2") and 19mm (3/4") bore hose
• Fuse Size: 20 amp
• Dimensions: 245mm long x 127mm wide x 119mm high
• Weight: 3.0 kg (Approx. 3.70 kg packed)
• Water Resistance: IPx6 (waterproof)
• Self-Priming Lift: Up to 2.4 meters (8 feet)
• Motor: Heavy-duty, coated motor for long-lasting performance
• Lower Housing: Cast aluminum for improved durability
• Operating Temperature Range: -10°C to 60°C (14°F to 140°F)
• Recommended Applications: Marine, agricultural, and industrial water transfer systems
• Package Dimensions: L: 40.00 cm x H: 14.00 cm x W: 16.00 cm

Applications

• Marine applications including boat bilge pumps, engine cooling systems, and water transfer.
• Agricultural irrigation systems requiring self-priming and high-pressure pumps.
• Industrial applications needing reliable water circulation and transfer under high pressure.
• Off-grid or remote water systems where 12V DC power is available for pumping needs.
• Seawater applications, including saltwater transfer, bilge pumping, and other marine uses.

Benefits

• High-flow and high-pressure performance ensure efficient water transfer even in demanding applications.
• Self-priming up to 2.4 meters (8 feet) offers easy installation in various setups.
• Dry-running diaphragm design protects the pump from damage when running without water.
• Heavy-duty construction with a coated motor and cast aluminum housing enhances durability and extends pump life.
• IPx6 rating ensures the pump operates reliably in wet environments and harsh marine conditions.
• Compact and easy to install with included inlet strainer and port fittings.
• Versatile use across various industries, including marine, agriculture, and industrial water systems.

The Jabsco P501J-118S-3A Par Max Heavy Duty Pressure Controlled Diaphragm Pump is engineered for high performance and reliability in demanding environments. With its durable design, self-priming capabilities, and efficient water flow, it provides an excellent solution for a wide range of applications, including marine, industrial, and agricultural uses.
