The Jabsco 58060-3012 deluxe electric toilet is a 12V pump-out marine toilet with a 14 inch angled-back design for mounting against angled bulkheads while flushing with fresh water from a pressurized onboard water system. It combines a vitreous china bowl and soft-close seat with a powerful macerator, one-touch control, plus an included solenoid valve and siphon breaker for safe, efficient operation. Built for compact installations (including up to 1 meter below the waterline), it features 19 mm inlet and 38 mm outlet connections and is compliant with USCG 183.410 and ISO 8846 Marine Ignition Protection requirements.
- Description
- Ask a Question
-

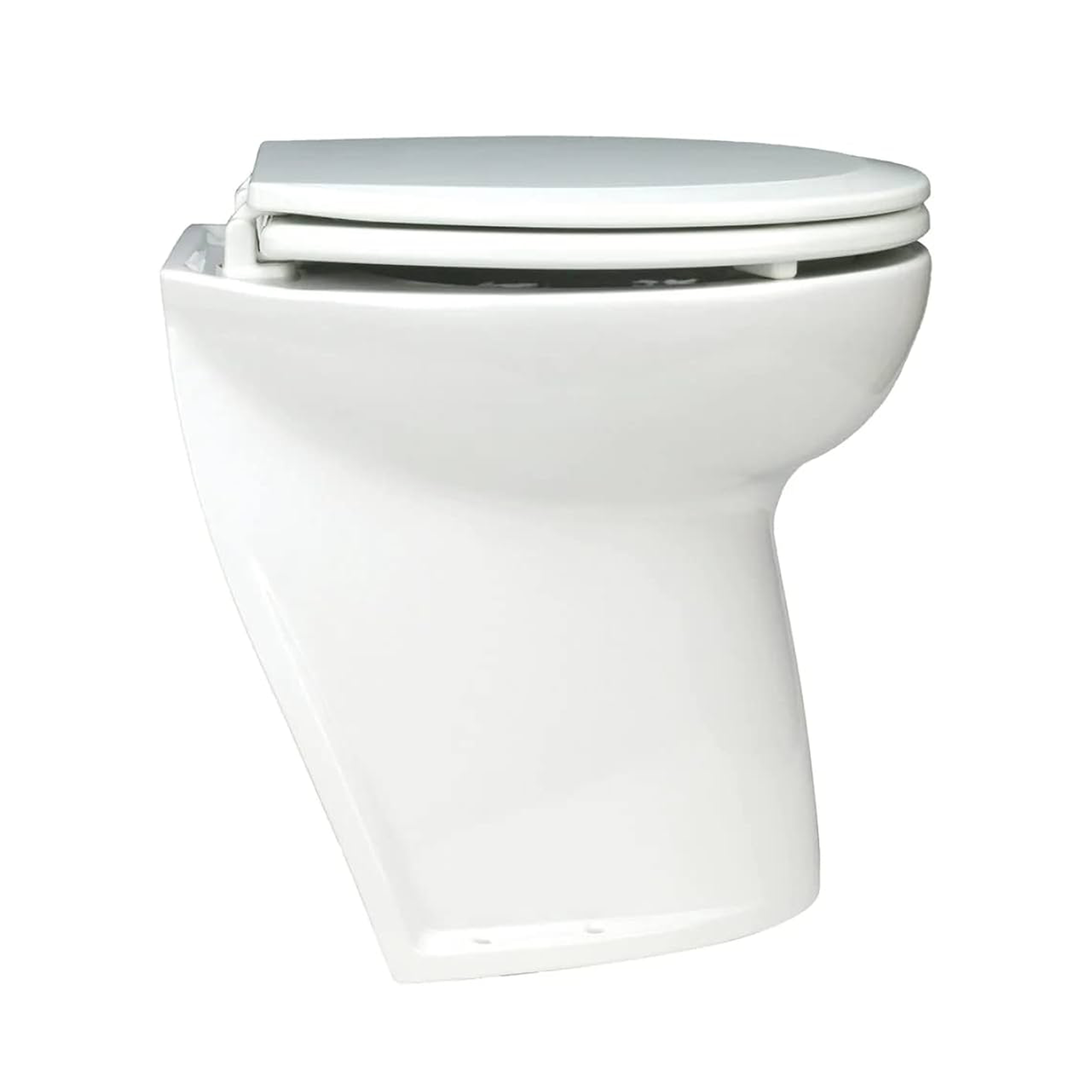

Jabsco 58060-3012 Angled-Back 12V Electric Toilet Assembly
The Jabsco 58060-3012 is a deluxe, household-style electric marine toilet designed for fresh-water flushing from your vessel’s pressurized water system. Its angled back helps it sit neatly against angled bulkheads, while the vitreous china bowl and soft-close seat deliver a clean, premium onboard experience. The system includes a macerator, one-touch control, a solenoid valve, and a siphon breaker to support dependable pump-out operation.
Application
- Marine installations using fresh water from a pressurized water system
- RV applications
- Off-grid applications
- Angled bulkhead mounting (14 inch angled back design)
- Installable up to 1 meter (3 ft) below the waterline
Compatibility
- Remote-mounted automatic pressurized water pumps delivering at least 11 LPM
- Pressurized pumps with 13.5 LPM (3.5 GPM) or more (solenoid valve and siphon breaker included for these applications)
- Replaces Jabsco 58060-0012
- Replaces Jabsco 58060-1012
- Replaces Jabsco 58060-2012
Technical Specifications
Order Number 00320724 Supplier Code 58060-3012 Barcode 671880640008 Voltage 12 Volts (12V DC stated) Type Pump Out Toilet Connections 19/38 mm Inlet Size 19 mm ID Outlet Size 38 mm ID Dimensions (H x W x D) 366 x 375 x 450 mm Dimensions (Height to Top of Closed Cover) Approx. 36.6 cm Dimensions (Width) Approx. 37.5 cm Dimensions (Depth) Approx. 45.0 cm Length (Stated) 475 mm Water Consumption 1 litre per complete rinse; approx. 1.0–2.5 L per flushing (stated) Current Consumption 20A Fuse 25A Weight 24 kg (also stated: actual weight 27.00 kg; packed approx. 29.00 kg) Shipping Weight 70.00 kg Packaged Dimensions L: 58.00 x H: 63.00 x W: 50.00 cm Color White Material Porcelain (white vitreous china bowl stated) IP Rating IP44 Approvals USCG 183.410 and ISO 8846 Marine Ignition Protection compliant Country of Origin United Kingdom Warranty 1 year Product Portfolio Electric Toilets
Product Details
- Flush water source: Fresh water from the vessel’s pressurized water system
- Control: One-touch control panel; touchpad control unit with four rinsing options (stated)
- Pumping: Powerful macerator pump; high-performance waste pump with mechanical seal (stated)
- Seat and lid: Soft closing
- Bowl: Hygienic white vitreous china / glass-ceramic bowl that conceals plumbing and wiring (stated)
Features
- Angled-back 14 inch design fits flush against angled bulkheads
- Includes solenoid valve and siphon breaker
- Low-noise operation (stated)
- Luxury soft-close seat and lid included
- Designed for tight or sloped installation areas (angled bulkhead mounting)
-
