ID
1331493
$ 748.76
1-2 weeks delivery time
-
+
The Jabsco 58103-1012 pump assembly kit for 12V Deluxe Flush toilets supports the Designer Quiet Flush Toilet and is supplied as a replacement set with the necessary components for smooth electric-toilet operation onboard. Built for 12V performance in marine environments, it is listed as compatible with the Jabsco 58220-1012 Designer Quiet Flush Toilet and the Jabsco Toilet Series 58XX0, with a motor label often showing 98012-9317.
- Description
- Ask a Question
-

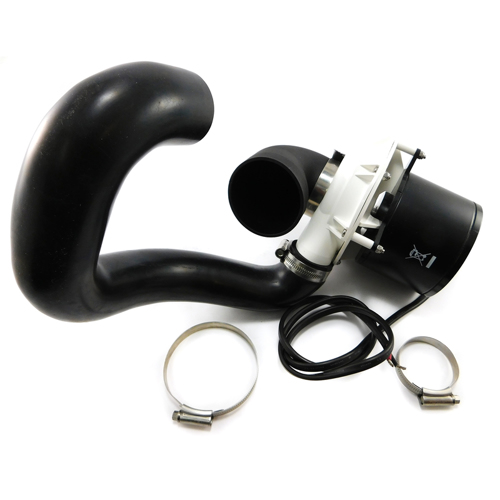

Jabsco 58103-1012 Deluxe Flush 12V Toilet Pump Unit
The Jabsco 58103-1012 pump assembly is a replacement pump kit intended for electric marine toilets, supporting smooth and efficient flushing performance on 12V systems. It is positioned as an upgrade/replacement solution for Deluxe Flush and Designer Quiet Flush toilet installations where reliable operation and serviceability are required.
Application
- Electric toilets (12V)
- Deluxe Flush Designer Quiet Flush Toilet (12V)
Compatibility
- Jabsco 58220-1012 Designer Quiet Flush Toilet
- Jabsco Toilet Series 58XX0
Technical Specifications
Brand Jabsco Supplier Code 58103-1012 Order Number 00320208 Barcode 671880581653 Voltage 12V Shipping Weight 4.50 kg
Product Details
- Type: Pump kit / pump assembly for electric toilets
- Designation: Macerator flush pump assembly (12V DC)
- Reference: Motor label often shows No. 98012-9317
- Exploded View Reference: Indicated as parts No. 4–6 and 8–23
Included Components (As Listed)
- Support strap, discharge hose
- Support strap, motor
- Support block
- Large hose clip
- Inlet hose, flush pump
- Medium hose clip
- 4 x long screw
- 3 x short screw
- 7 x nut
- Upper pump body
- Ring seal
- Nut
- Washer
- Impeller
- Ceramic seal
- Lower pump body
- 12V motor
- Pump outlet hose
- 2 x small clip
Features
- Replacement pump kit supporting smooth operation of 12V Deluxe Flush toilets
- Designed for use with the Designer Quiet Flush Toilet configuration stated above
- Complete component set for replacement as listed in the exploded-view reference
-
