ID
1331491
$ 1,661.94
1-2 weeks delivery time
-
+
The Jabsco 58080-3024 deluxe 14-inch 24V electric toilet delivers a household-style marine toilet experience for pressurized fresh water flushing systems, with a one-touch control panel that includes a dry flush option. It features a large pure white vitreous china bowl with concealed plumbing and wiring, a soft-close seat and lid, and a straight vertical-back design to fit against vertical bulkheads. Designed for low-noise operation, it supports installation up to 1 meter below the waterline and connects to 19 mm inlet and 38 mm discharge hoses, with an included solenoid valve and siphon breaker for connection to a pressurized water supply.
- Description
- Ask a Question
-

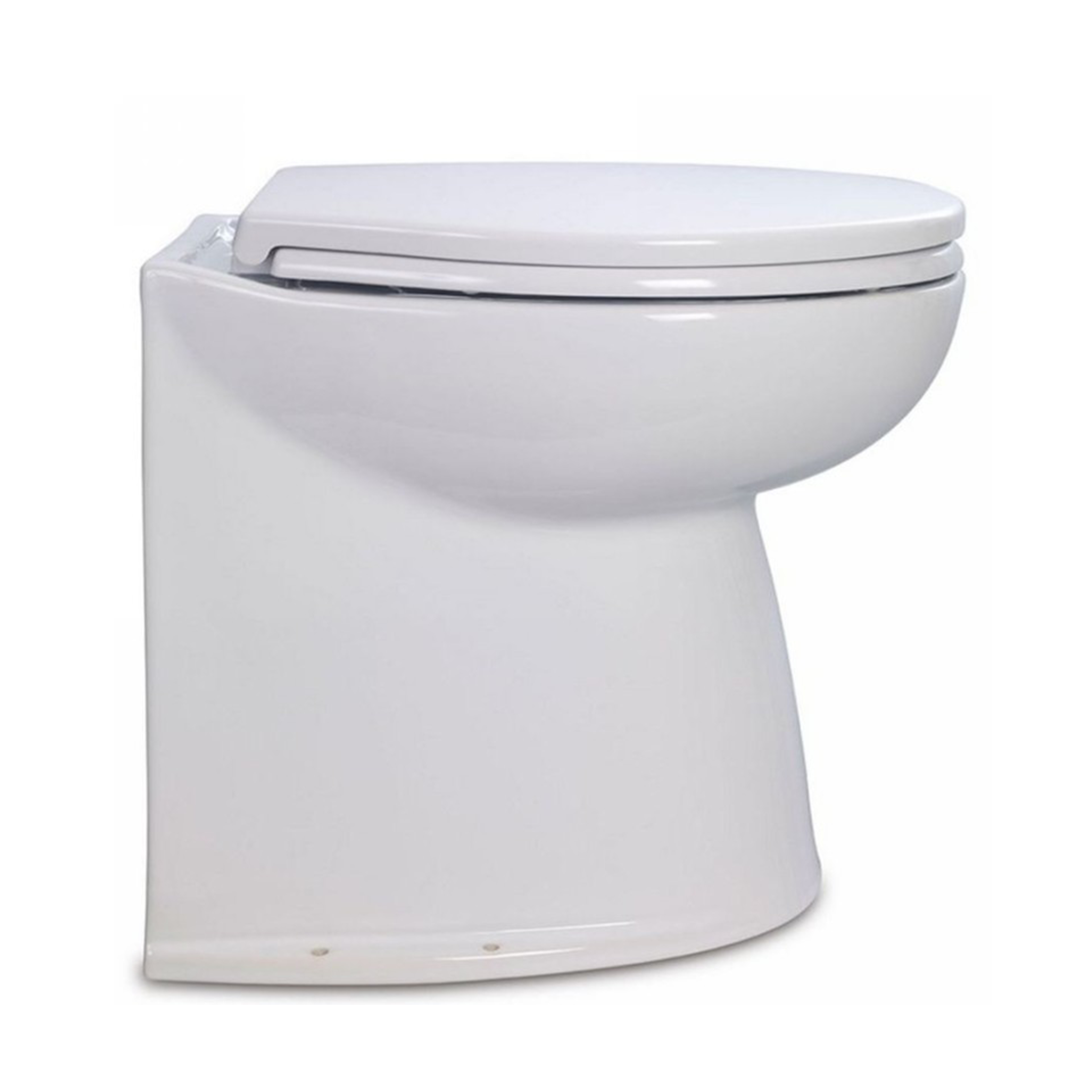

Jabsco 58080-3024 Deluxe 24V Electric Marine Toilet System
The Jabsco 58080-3024 is a deluxe 14-inch electric marine toilet designed for pressurized fresh water flushing on vessels. With concealed plumbing for a clean, household-style appearance and a soft-close seat for added comfort, it provides a refined onboard toilet installation while supporting straight, vertical-back mounting against bulkheads.
Application
- Fresh water pressurized flushing systems
- Works with pressurized water systems rated at 13.5 LPM or more
- Can be connected to any pressurized water supply with a flow rate of minimum 11 LPM
- Suitable for installation up to 1 meter below the waterline
- 14-inch straight, vertical-back design fits against vertical bulkheads
Technical Specifications
Brand Jabsco Supplier Code 58080-3024 Order Number 00320727 Voltage 24V Current Consumption 10A Fuse Requirement 15A Water System Flow Requirement 13.5 LPM or more (also stated: minimum 11 LPM) Water Consumption Approx. 1.0–2.5 L per flush (also stated: as low as 1 litre per flush) Dimensions 36.6 cm height, 37.5 cm width, 45.0 cm depth (also stated: 366 mm high, 375 mm wide, 475 mm long) Net Weight 24 kg Packaged Dimensions 58 cm x 63 cm x 50 cm Packaged Weight Approximately 28 kg (also stated: about 30 kg packed) Shipping Weight 70.00 kg Color White Material Porcelain (vitreous china bowl also described as pure white glass ceramic) Product Portfolio Electric Toilets
Product Details
- Bowl: Large, household-style vitreous china bowl in pure white with concealed plumbing and wiring
- Flush Control: One-touch control panel with dry flush option (also stated: four rinsing options via touchpad control)
- Pump System: Powerful macerator pump breaks up waste for efficient discharge
- Waste Pump: High-performance waste pump with mechanical seal
- Seat: Soft-close seat and lid (composite seat and cover)
- Inlet Connection: 19 mm (3/4 inch) inlet hose connection; also stated: inlet solenoid valve 13 mm (1/2 inch) hose connection or 15 mm push-fit connection
- Discharge Connection: 38 mm (1-1/2 inch) discharge hose connection
- Included Components: Solenoid valve, siphon breaker, control panel with wall bracket and black box
- Energy Use: Uses less than 1 amp/hour per day
Features
- Deluxe 14-inch straight, vertical-back configuration for a clean fit against bulkheads
- Low-noise operation for improved onboard comfort
- Selectable wet or dry bowl after use
- Concealed plumbing and wiring for an elegant, household-style look
- Replaces the following models:
- Jabsco 58080-0024
- Jabsco 58080-1024
- Jabsco 58080-2024
-
