The Jabsco 58060-3024 deluxe electric toilet is a 24V marine sanitation unit with a 14 inch angled-back design for angled bulkheads, a soft-close seat and lid for quiet operation, and a vitreous china (porcelain) bowl for hygienic, easy cleaning. It includes a solenoid valve and siphon breaker for use with pressurized fresh water flushing, and a powerful macerator discharge pump that helps break up and evacuate waste efficiently. With one-touch touchpad control and low water consumption (as little as 1 litre per flush, listed as approximately 1.0–2.5 litres depending on the rinse option), it delivers household-style comfort in a compact marine installation.
- Description
- Ask a Question
-

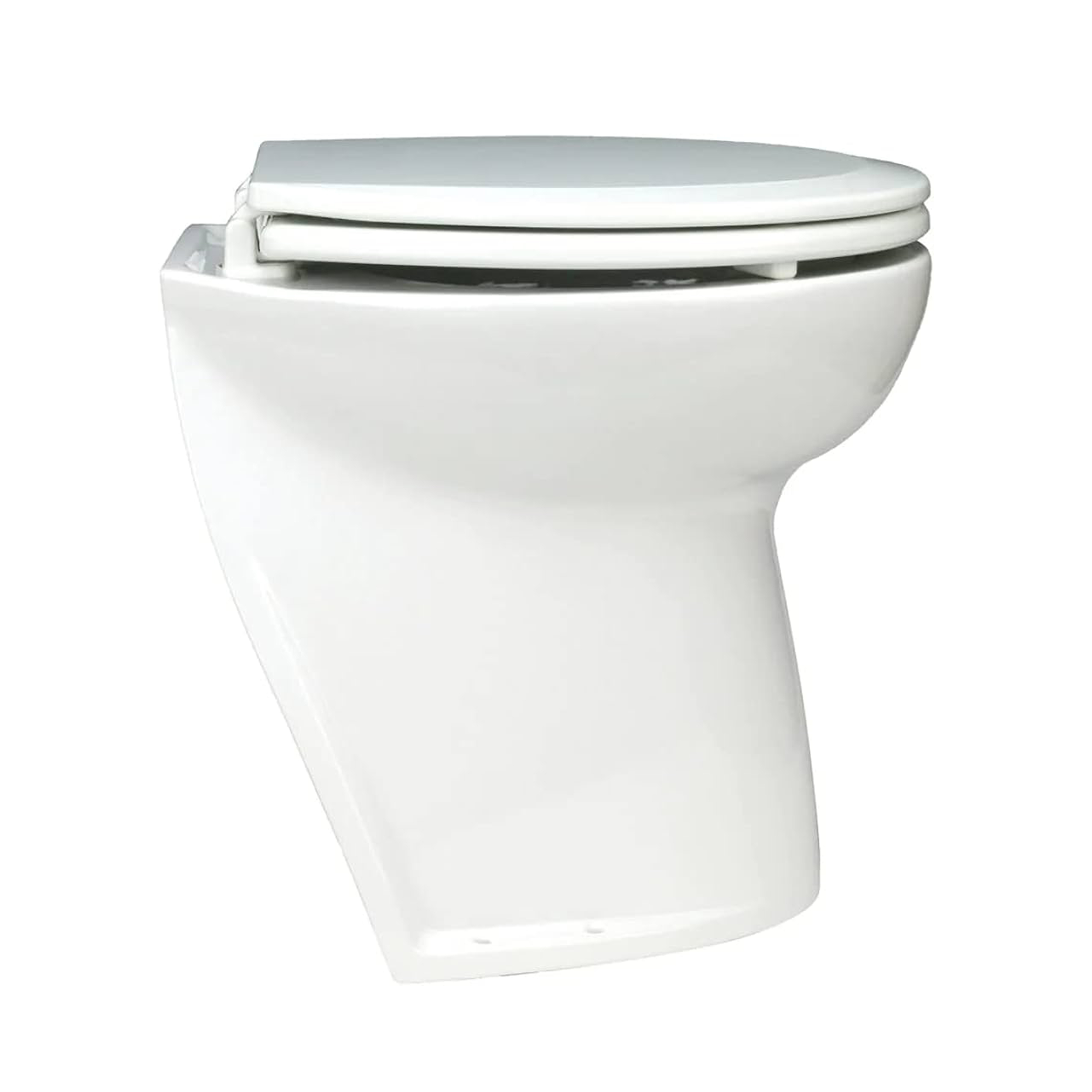

Jabsco 58060-3024 24V Deluxe Electric Toilet With Angled Back
The Jabsco 58060-3024 is a deluxe 24V electric toilet built for quiet, hygienic onboard use. Its 14 inch angled-back shape is designed to sit neatly against angled bulkheads, while the soft-close seat and lid help reduce noise. A vitreous china (porcelain) bowl supports easy cleaning, and the integrated macerator discharge pump helps evacuate waste efficiently.
Application
- Marine sanitation installations
- Marine and RV sanitation needs (as stated in the product text)
- Fresh water flushing with pressurized water pumps
- Suitable for mounting up to 1 meter (3 ft) below the waterline
- Fits angled bulkheads with a 14 inch angled-back design
Compatibility
- Compatible with pressurized water pumps rated at 13.5 L/min (3.5 gpm) or higher (as listed)
- Can be connected to a pressurized water supply with a minimum flow rate of 11 L/min (as listed)
Technical Specifications
Brand Jabsco Supplier Code 58060-3024 Order Number 00320725 Product Portfolio Electric Toilets Voltage 24 Volts Dimensions (H x W x D) 366 x 375 x 450 mm Dimensions (As Listed) 366 mm high, 375 mm wide, 475 mm long Dimensions (Approx.) Width approx. 37.5 cm, depth approx. 45.0 cm, height approx. 36.6 cm to top of closed cover Connections (As Listed) 19/38 mm Connections (Inlet/Discharge) 19 mm inlet hose bore, 38 mm discharge hose bore Inlet Solenoid Valve Connection 13 mm (1/2 inch) hose connection or 15 mm push-fit connection Outlet Connection (Waste Water) 38 mm (1-1/2 inch) Water Consumption 1 litre per complete rinse; approx. 1.0–2.5 litres per flush (as listed) Current Consumption 10 A Fuse Size 15 A Power Consumption (As Listed) Less than 1 amp/hr per day Color White Material Porcelain Weight (As Listed) 24 kg Actual Weight (As Listed) 22.00 kg (approx. 24.00 kg packed) Packaged Dimensions L: 58.00 x H: 63.00 x W: 50.00 cm Shipping Weight 70.00 kg
Product Details
- Bowl: Hygienic vitreous china (porcelain) bowl designed for easy cleaning and maintenance
- Flush Control: One-touch control panel; touchpad control unit with four rinse options (as listed)
- Flush Water: Fresh water flushing via drinking water pump (pressurized supply)
- Waste Handling: Powerful macerator discharge pump breaks up and evacuates waste efficiently
- Installation: Angled-back design intended for angled bulkheads; suitable up to 1 meter (3 ft) below the waterline
- Included Components: Solenoid valve, siphon breaker, control panel with wall bracket, black box
Features
- Low-noise operation for more comfortable onboard use
- Soft-close seat and lid for quieter closing
- Compact, household-style look with an angled back to suit sloping surfaces
- Efficient water use with low consumption per flush (as listed)
- Replaces the following Jabsco models:
- Jabsco 58060-0012
- Jabsco 58060-1012
- Jabsco 58060-2012
-
