ID
1331487
$ 1,573.73
1-2 weeks delivery time
-
+
The Jabsco 58040-3024 deluxe electric marine toilet delivers 24V macerator-powered flushing with a straight vertical back for mounting against flat bulkheads. It connects to a pressurized fresh water system for hygienic rinsing and supports installation up to 1 meter below the waterline, with an included solenoid valve and siphon breaker assembly for systems with 11 LPM or higher flow. A one-touch touchpad control panel (with four rinsing options) and a soft-close seat and lid enhance onboard comfort, while the white vitreous china bowl and robust construction are built for marine use.
- Description
- Ask a Question
-

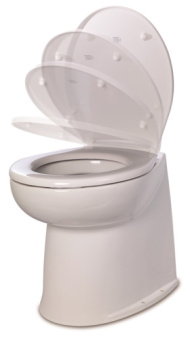

Jabsco 58040-3024 Deluxe 24V Electric Toilet System
Built to bring a more home-like experience onboard, this Jabsco deluxe electric marine toilet combines fresh water flushing from a vessel’s pressurized water system with a powerful macerator discharge pump for efficient waste evacuation. The straight, vertical-back design supports neat installation against flat bulkheads, while the soft-close seat and lid improve everyday comfort and reduce noise during use.
Application
- Marine electric toilet with fresh water flush connected to a vessel’s pressurized water system
- Can be installed up to 1 meter (3 ft) below the waterline
- Compatible with pressurized water pumps with 11 LPM or higher flow rate
Compatibility
- Replaces Jabsco 58040-0024
- Replaces Jabsco 58040-1024
- Alternative to Jabsco 58040-2024
Technical Specifications
Order Number 00320023 Supplier Code 58040-3024 Barcode 671880628518 Voltage 24 Volts Current Consumption 10 A Recommended Fuse 15 A Dimensions (H x W x D) 445 x 375 x 475 mm Dimensions (Approx.) Width 37.5 cm / Depth 45.0 cm / Height 44.5 cm to Top of Closed Cover Connections 19 mm / 38 mm Inlet Connection (Solenoid Valve) 13 mm (1/2") hose connection or 15 mm JG Speedfit connection Outlet Connection (Waste Water) 38 mm (1-1/2") Water Consumption 1 litre per complete rinse; approx. 1.0–2.5 L per flushing Weight 31 kg Shipping Weight 70.00 kg Color White Material Porcelain
Product Details
- Bowl: Hygienic, pure white vitreous china bowl for easy cleaning (also described as pure white glass ceramic)
- Back Style: 17" straight vertical back for mounting against flat bulkheads
- Flush System: Fresh water flush connected to a pressurized water system
- Pump: Powerful macerator discharge pump; high-performance waste pump with mechanical seal
- Control: One-touch touchpad control panel with four rinsing options
- Seat and Lid: Soft-close function; described as white lacquered wood and also referenced as a composite seat and cover
- Included Items: Solenoid valve, siphon breaker assembly, control panel with wall bracket, and black box
Features
- Low-noise operation
- Compact design that conceals plumbing and wiring
- Efficient waste breakdown for reliable evacuation
- Designed for pressurized water supply connection (minimum 11 LPM flow rate)
-
