ID
1331490
$ 1,661.94
1-2 weeks delivery time
-
+
The Jabsco 58080-3012 deluxe electric marine toilet delivers quiet 12V operation with touchpad control and four flush modes, helping you balance comfort and water savings at 1.0 to 2.5 liters per flush. Built around a compact white porcelain bowl that conceals plumbing and wiring, it includes a high-performance waste pump with a mechanical seal plus a solenoid valve, control panel with wall bracket, and black box. Designed for fresh water use, it connects to a pressurized water supply requiring at least 11 liters per minute flow and supports straight installation with a soft-closing composite seat.
- Description
- Ask a Question
-
Jabsco 58080-3012 Deluxe 12V Electric Marine Toilet System

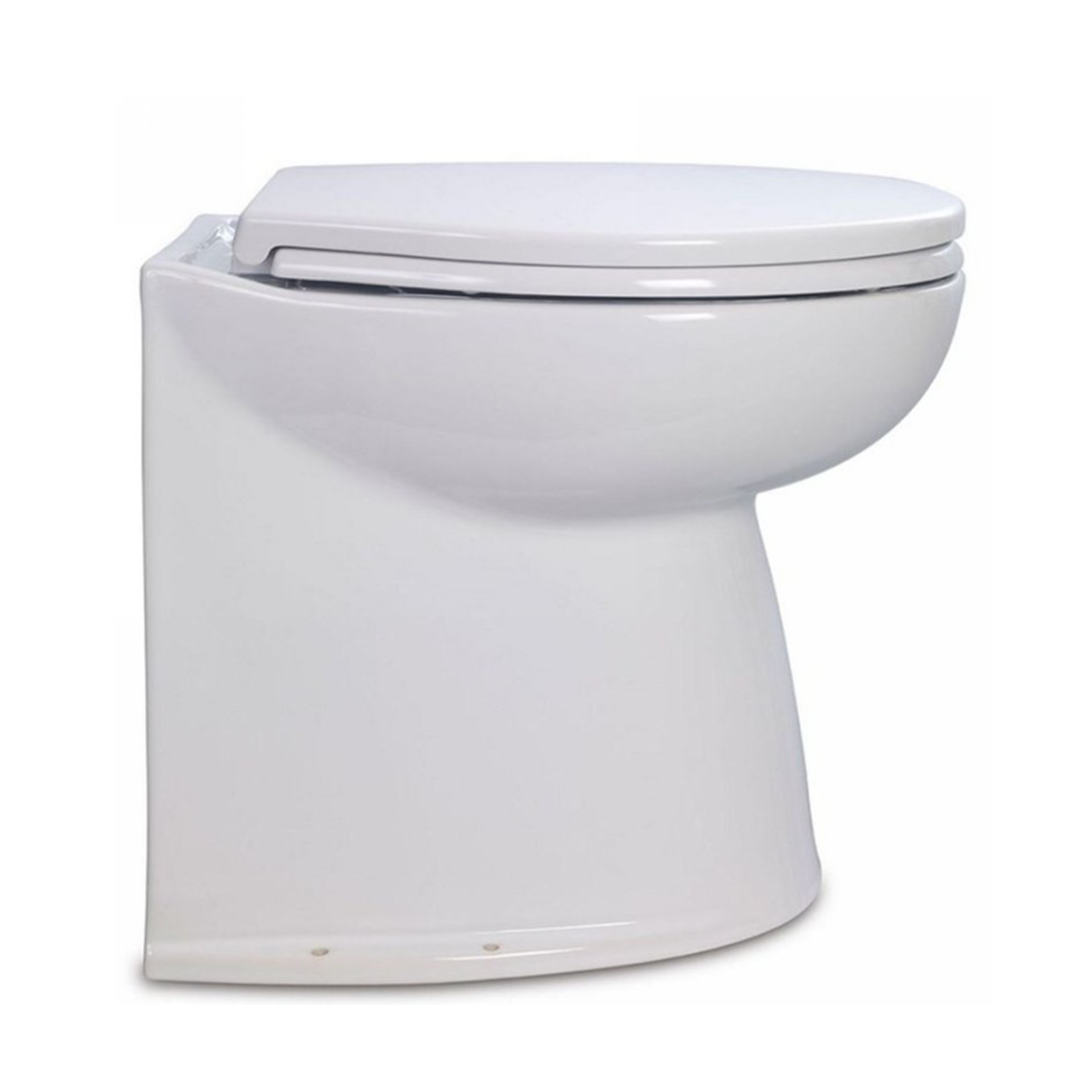

The Jabsco 58080-3012 is a deluxe 14 inch electric marine toilet designed for fresh water flushing and quiet onboard comfort. Its compact white bowl hides plumbing and wiring for a clean installation, while touchpad control provides multiple flush options to suit different operating needs.
Application
- Marine sanitation (electric toilet)
- Fresh water flush
- Compatible with pressurized water supply systems providing at least 11 liters per minute flow
- Can be flushed using a remote-mounted automatic pressurized water pump delivering at least 11 liters per minute
Compatibility
- Replaces model 58080-0012
- Replaces model 58080-1012
- Replaces model 58080-2012
Technical Specifications
Brand Jabsco Supplier Code 58080-3012 Order Number 00322156 Barcode 671880638692 Rated Voltage 12V DC Current Consumption 20A Recommended Fuse 25A Flush Water Use 1.0 to 2.5 liters per flush Minimum Water Supply Flow 11 liters per minute Dimensions (W x D x H) 37.5 cm x 45.0 cm x 36.6 cm (to top of closed cover) Dimensions (H x W x L) 366 mm x 375 mm x 475 mm Packaged Dimensions (L x H x W) 58.00 cm x 63.00 cm x 50.00 cm Weight 24 kg Weight (Also Stated) Around 26.00 kg (28.00 kg packed) Shipping Weight (Also Stated) 70.00 kg Color White Material Porcelain
Product Details
- Flush control: Touchpad with four flush modes
- Noise level: Quiet operation (household-style flush noted)
- Bowl design: Compact white bowl that conceals plumbing and wiring
- Waste handling: High-performance waste pump with mechanical seal
- Seat: Composite soft-close seat and cover (an alternative enamelled white wooden seat and cover is mentioned as available on request)
- Installation notes: Vertical back is described for a snug fit against a vertical bulkhead; straight configuration is specified
- Energy use (also stated): Less than 1 amp/hr per day
Connections
- Inlet (solenoid valve): 13 mm (1/2 inch) hose connection or 15 mm JG Speedfit connection
- Inlet (also stated): 19 mm (3/4 inch) bore inlet hose
- Waste outlet: 38 mm (1-1/2 inch)
- Discharge (also stated): 38 mm (1-1/2 inch) bore discharge hose
Included Components
- Solenoid valve
- Control panel with wall bracket
- Black box
- Siphon breaker assembly (also stated)
Features
- Quiet 12V electric flushing for improved onboard comfort
- Four-mode touchpad operation for flexible rinse and flush control
- Low water consumption range of 1.0 to 2.5 liters per flush
- Clean installation look with concealed plumbing and wiring
- Durable waste pump design with mechanical seal
-
