The Jabsco 58040-3012 deluxe 17 inch 12V electric toilet unit delivers a comfortable, household-style experience onboard with a straight vertical back designed to fit flat bulkheads. It uses a macerator discharge pump for efficient waste removal, includes a solenoid valve and siphon breaker assembly for pressurized fresh-water flushing, and adds everyday convenience with a soft-close lid and one-touch control with an option to leave the bowl wet or dry.
- Description
- Ask a Question
-

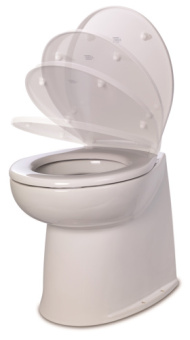

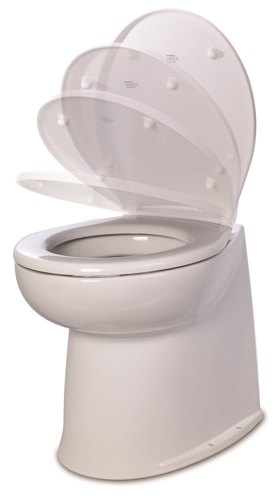

Jabsco 58040-3012 Deluxe 12V Electric Toilet Unit
The Jabsco 58040-3012 is a deluxe electric marine toilet designed to connect to the vessel’s pressurized water system for fresh-water flushing. With a full-size, household-comfort bowl profile, a straight back for bulkhead-friendly installation, and a macerator pump for effective discharge, it combines onboard practicality with a clean, compact appearance.
Application
- Marine installations (boats, yachts, and other vessels)
- RV and mobile applications
- Designed for fresh-water flushing via the vessel’s pressurized water system
- Suitable for mounting up to 1 meter (3 feet) below the waterline
- Works with remote-mounted automatic pressurized water pumps delivering at least 11 liters per minute
- Replaces Jabsco 58040-0012
- Replaces Jabsco 58040-1012
- Alternative to Jabsco 58040-2012
Technical Specifications
Order Number 00320022 Supplier Code 58040-3012 Barcode 671880628495 Voltage 12 Volts Current Consumption 20 A Fuse Size 25 A Water Consumption 1 liter per complete rinse; approximately 1.0 to 2.5 liters per flushing Minimum Water Supply Flow At least 11 liters per minute Maximum Pressure 2.5 bar (36.25 psi) Dimensions (H x W x D) 445 x 375 x 475 mm Additional Dimensions Listed Height 447 mm; Width 375 mm; Length 475 mm; approximately Width 37.5 cm, Depth 45.0 cm, Height 44.5 cm to top of closed cover Connections Inlet and discharge connections listed as 19/38 mm; inlet hose 19 mm (3/4 inch) bore; discharge hose 38 mm (1 1/2 inch) bore; inlet solenoid valve 13 mm (1/2 inch) hose connection or 15 mm push-fit connection; outlet (waste water) 38 mm (1 1/2 inch) Product Weight 31 kg Additional Weight Listed 26 kg (57.3 lbs); approximately 28 kg (61.7 lbs) when packed Shipping Weight 70.00 kg Temperature Range 0°C to 40°C (32°F to 104°F) Color White Material Porcelain (vitreous china bowl)
Product Details
- Toilet style: Deluxe electric flush toilet with straight vertical back for flat bulkheads
- Bowl: Pure white vitreous china; conceals plumbing and wiring
- Flush system: Connects to a pressurized water system (drinking-water pump rinse system is listed)
- Discharge: Macerator discharge pump for efficient waste removal
- Control: One-touch control panel / touchpad control unit with four rinsing options (listed)
- Seat and lid: Soft-close; composite seat and cover are listed
Features
- Soft-close lid for quiet operation
- One-touch control with an owner-selectable option to leave the bowl wet or dry after use
- Powerful macerator discharge pump breaks up waste and helps clear the bowl
- Supplied with solenoid valve and siphon breaker assembly
- Low-noise operation is listed
- High-performance waste pump with mechanical seal is listed
-
