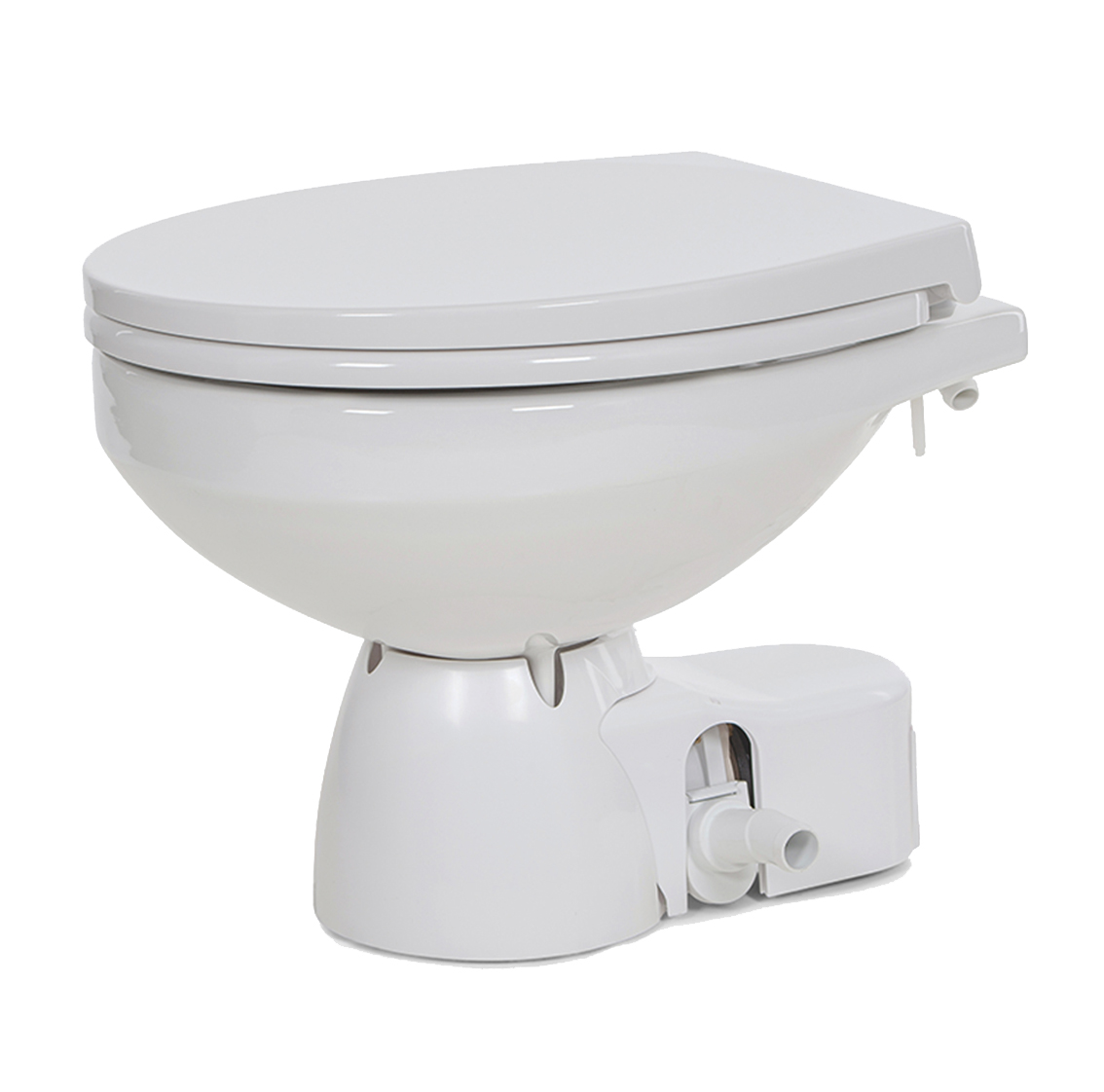

Jabsco 38045-3094 - Quiet Flush E2 Electric Toilet Fresh Water Flush Models

Jabsco 38045-3094 - Quiet Flush E2 Electric Toilet Fresh Water Flush Models

The Jabsco 38045-3094 Quiet Flush E2 Electric Toilet is a high-performance, fresh water flush toilet designed for marine environments. With a compact bowl size and a 24V DC power supply, it ensures efficient waste disposal while maintaining low noise levels. The powerful centrifugal discharge pump helps break up and evacuate waste, while the system uses an existing pressurized water pump for flushing, requiring at least 11 liters per minute. This model comes with a solenoid valve to control the flushing pump and can be mounted in any orientation for added flexibility. The electronic control panel features an 'eco' water saver mode, optimizing water usage. With a rotatable base and discharge pump, the system allows easy routing of pipework to the rear, while quick release discharge ports simplify installation with both straight and 90° discharge options available. The easy-to-clean shroud covers all fixings, ensuring a neat and tidy installation.

Key Features:

• Compact bowl size for efficient use of space
• 24V DC operation for energy-efficient performance
• Powerful centrifugal discharge pump to break up and evacuate waste
• Uses existing pressurized water pump with a minimum flow rate of 11 liters/minute
• Includes solenoid valve to control the flushing pump
• Electronic control panel with eco water saver mode
• Rotatable base and discharge pump for flexible pipework routing
• Quick release discharge ports for easy installation (straight and 90° options available)
• Easy-to-clean shroud concealing all fixings for a neat appearance
• Low noise operation, providing a quiet and comfortable onboard experience

Specifications:

• Part Number: 38045-3094
• Voltage: 24V DC
• Dimensions: 352mm high x 331mm wide x 411mm deep
• Fuse Size: 10 amps
• Maximum Current: 13 amps
• Connections: 19mm (¾”) bore inlet hose, 25mm (1”) bore discharge hose
• Power Requirements: Minimum 11 liters/minute from pressurized water pump
• Weight: 17.50 kg (approx. 19.50 kg packed)
• Packaged Dimensions: L: 54.00 cm x H: 43.00 cm x W: 52.00 cm
• Discharge Pump Type: High-capacity centrifugal pump for efficient waste evacuation
• Water Saver Mode: Eco-friendly, reducing water consumption without compromising performance
• Solenoid Valve: Included to control flushing pump, mountable in any orientation
• Control Panel: Electronic, featuring user-friendly buttons for easy operation
• Installation: Quick-release discharge ports for straight or 90° discharge configurations
• Shroud: Easy-to-clean design with concealed fixings for aesthetic appeal
• Sealed Construction: Waterproof seals prevent leakage and ensure long-lasting reliability
• Pressure Relief: Built-in pressure relief system to protect components from damage
• Noise Level: Low noise operation for a quiet, comfortable environment onboard
• Flow Rate: Minimum 11 liters/minute flushing requirement for optimal operation
• Durability: Constructed with corrosion-resistant materials for marine conditions
• Regulatory Compliance: Meets CE and ISO standards for marine applications

Applications:

• Designed for marine vessels, recreational boats, and yachts
• Ideal for those seeking a low-noise, high-performance toilet with water-saving capabilities
• Perfect for space-efficient installations without sacrificing comfort or functionality

Benefits:

• Energy-efficient operation with eco water-saving mode, reducing overall water consumption
• Quiet flushing cycle, creating a peaceful and comfortable environment onboard
• Flexible installation options with rotatable base and quick-release discharge ports
• Compact and space-saving design without compromising on performance
• Durable construction with easy maintenance and cleaning features for long-lasting reliability
• Compatible with existing pressurized water systems for seamless integration
