The Jabsco 38245-3094 Quiet Flush E2 compact electric marine toilet delivers high-performance, low-noise flushing with a sleek touch sensor panel offering Eco Flush, Full Flush, and Empty Pump modes while using approximately 1–2 liters of water per flush. It includes a self-priming PAR-MAX 3 flush water pump with 19 mm (3/4 in) hose connections, a rotating base for left, right, or rear discharge installation, and a quick-release system for tool-free access to the macerator/discharge area. Built around a hygienic white vitreous china bowl with a soft-closing seat and cover, it supports seawater flushing and can be mounted up to 1 meter below the waterline, with 24 V DC operation listed and a maximum amperage of 10 A (13 A fuse).
- Description
- Ask a Question
-

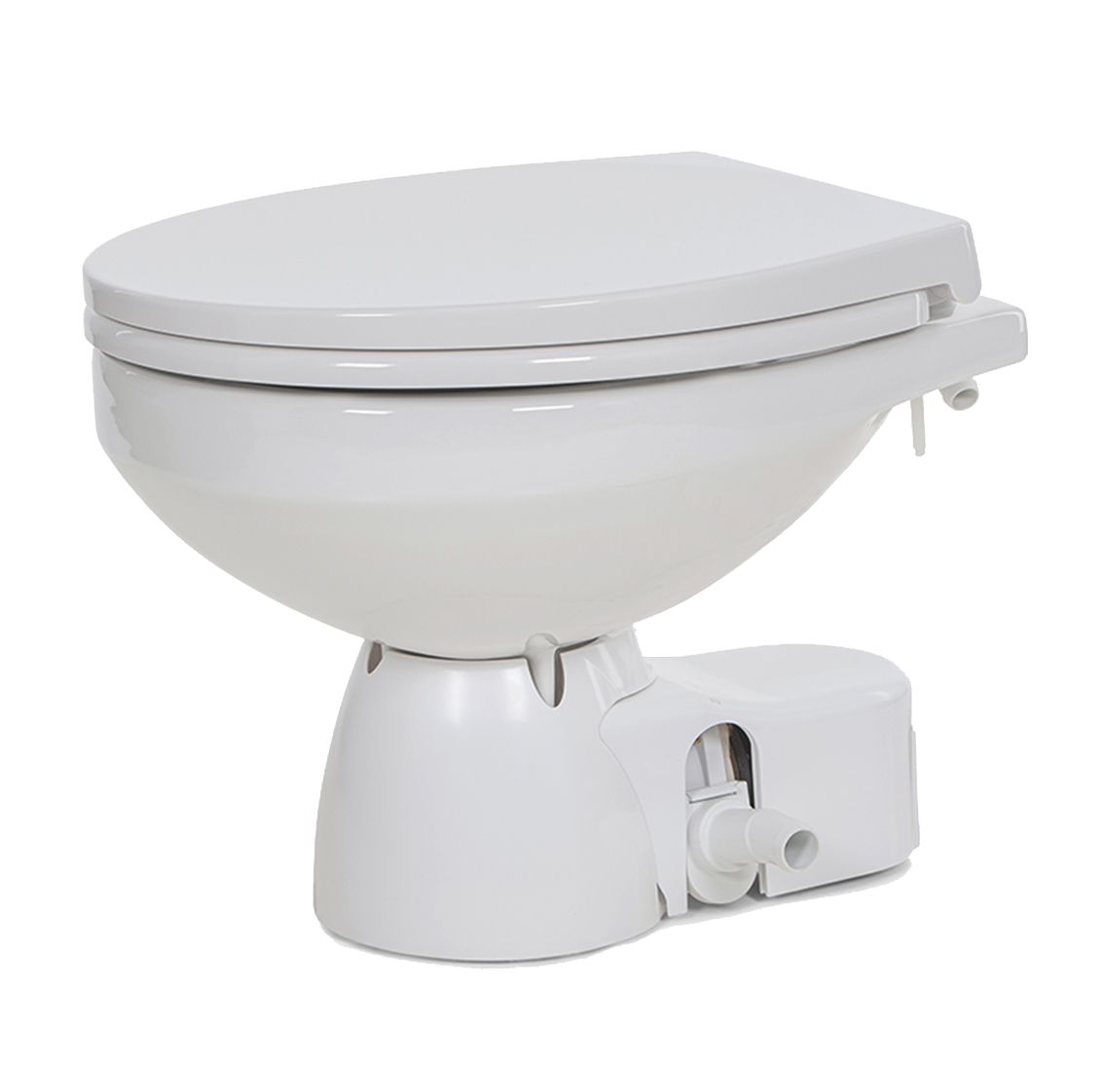

Jabsco 38245-3094 Quiet Flush E2 Compact Electric Marine Toilet System
The Jabsco Quiet Flush E2 is a compact electric toilet designed for marine sanitation where quiet operation, clean installation, and controlled water use matter. A modern touch sensor control panel provides selectable flush modes, while the rotating base supports flexible discharge routing to suit tight onboard spaces.
Application
- Marine electric toilet for seawater flush installations
- Can be mounted up to 1 meter below the waterline
- Designed for low-noise operation
Compatibility
- Base fixing points match previous Jabsco Quiet Flush toilets (since 2001)
- Base fixing points match previous Jabsco Standard Marine toilets (since 2001)
- Listed as an alternative to Jabsco 37245-0094
- Listed as an alternative to Jabsco 37245-3094
Technical Specifications
Supplier Code 38245-3094 Order Number 00322165 Barcode 671880641463 Voltage 24 V DC (also listed as 12 V in provided data) Maximum Amperage 10 A Fuse Size 13 A Water Consumption Approx. 1–2 liters per flush (also listed as 1 liter per complete rinse) Rinse Pump Flow (Minimum) 11 liters per minute Head 1.2 meters Inlet Connection 19 mm inlet hose Discharge Connection 25 mm drain hose Dimensions (H x W x D) 35.2 cm x 33.1 cm x 41.1 cm (also listed as 352 mm x 331 mm x 411 mm) Product Weight 15.5 kg (also listed as approx. 17.50 kg actual weight) Shipping Weight 19.00 kg Packed Weight Approx. 19.50 kg Packaged Dimensions 54 x 43 x 52 cm (also listed as 54.00 cm length, 43.00 cm height, 52.00 cm width) Color White Bowl Material Vitreous china (porcelain) Seat and Lid Material Plastic soft-closing seat and lid (also listed as baked enamel white seat and cover)
Product Details
- Control: Touch sensor panel with Eco Flush, Full Flush, and Empty Pump options
- Flush Water Pump: Self-priming PAR-MAX 3 pump with 19 mm (3/4 in) hose connections for seawater flushing
- Discharge Pump: Centrifugal discharge pump for breaking up and evacuating waste water
- Service Access: Quick-release system for tool-free access to the macerator/discharge area and discharge hose
- Installation Flexibility: Rotating base and rotatable discharge pump to route discharge left, right, or rear
Features
- Quiet, low-noise operation for improved onboard comfort
- Eco-focused water usage with selectable flush modes
- Hygienic white vitreous china bowl for easy cleaning
- Includes a 1.8 m long white 19 mm hose for connecting the flush water pump to the toilet flush water inlet
- Includes 25 mm waste water pump outlet pieces (straight and 90° elbow)
- Includes hose adapter for connection to 38 mm waste water hose
- Includes strainer, plus control panel with black box
-
