The Jabsco 38245-3092 Quiet Flush E2 compact electric toilet delivers an efficient 12V marine sanitation solution with quiet operation, a rotating base for flexible installation, and a touch sensor panel offering Eco Flush, Full Flush, and Empty Pump modes. It uses a self-priming PAR-MAX 3 flush water pump with 19 mm hose connections for seawater flushing, while a centrifugal discharge pump macerates and evacuates waste through a 25 mm outlet. With low water consumption (approximately 1–2 liters per flush, and 1 liter per complete rinse), a hygienic vitreous china bowl, and included hoses and fittings, it supports straightforward installation and service access via a quick-release system.
- Description
- Ask a Question
-

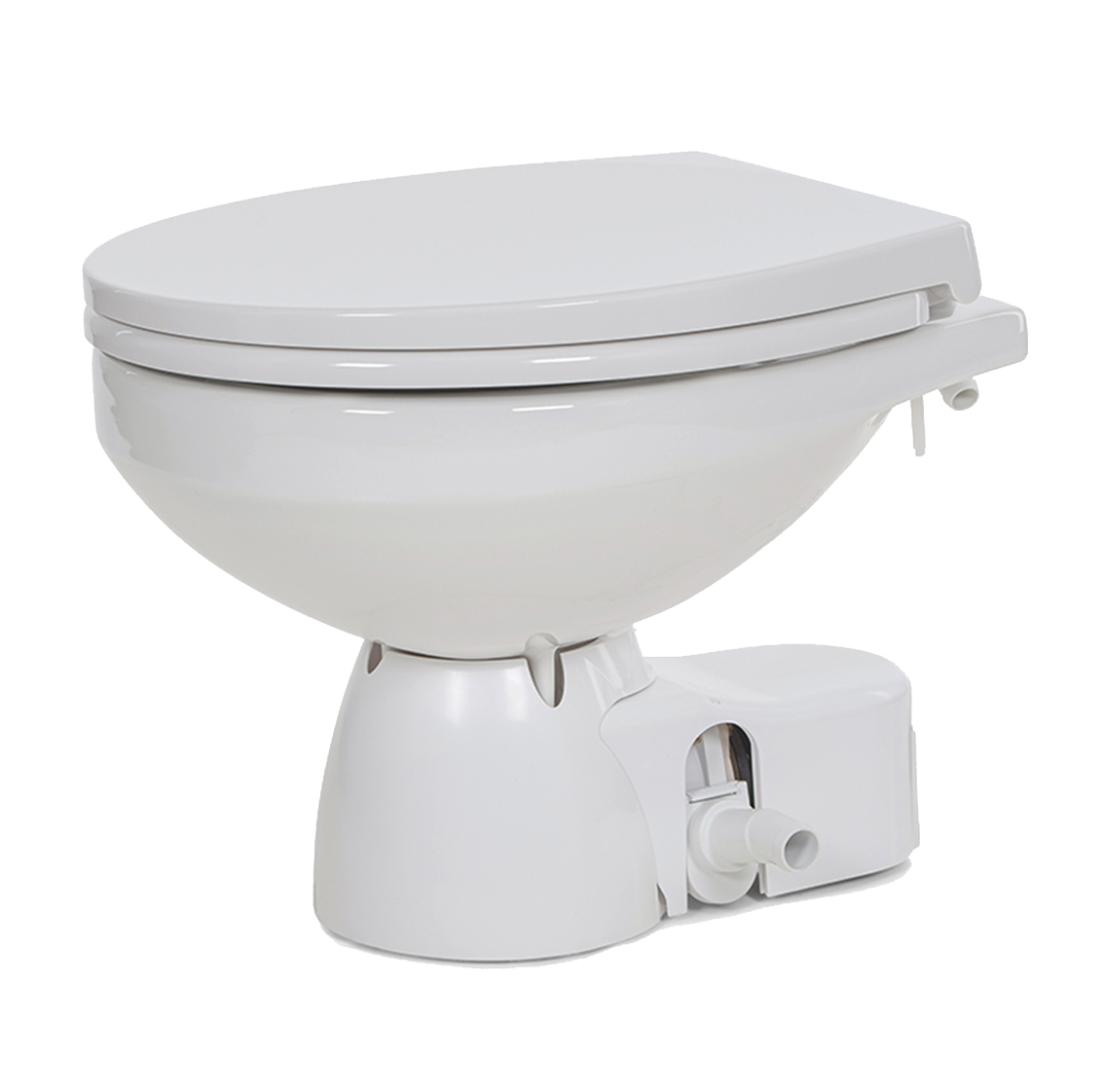

Jabsco 38245-3092 Quiet Flush E2 Compact Electric Toilet System
The Jabsco Quiet Flush E2 is a compact 12V electric marine toilet designed to combine quiet flushing, easy cleaning, and installation flexibility. A separate flush water pump supplies rinse water, while a centrifugal discharge pump macerates and evacuates waste for efficient onboard sanitation in space-constrained heads.
Application
- Marine electric toilet solution for boats with compact space requirements
- Seawater flushing (also stated as suitable for sea, river, or lake water)
- Can be mounted up to 1 meter below the waterline
Compatibility
- Mounting points match previous Jabsco Quiet Flush toilets (since 2001)
- Mounting points match previous Jabsco Standard Marine toilets (since 2001)
- Alternate to Jabsco 37245-0092
- Alternate to Jabsco 37245-3092
Technical Specifications
Order Number 00322164 Supplier Code 38245-3092 Barcode 671880641456 Voltage 12 V DC Maximum Current 20 A Fuse Size 25 A Rinse Pump (minimum 11 lpm) Head 1.2 meters Connections 19 mm inlet hose; 25 mm drain hose Flush Pump Self-priming PAR-MAX 3 pump with 19 mm hose connections Discharge Pump Centrifugal discharge pump (macerates and evacuates waste) Water Consumption Approximately 1–2 liters per flush; 1 liter per complete rinse Dimensions (H x W x D) 355 x 352 x 415 mm Dimensions (H x W x D) 352 x 331 x 411 mm Product Weight 15.5 kg Actual Weight (Stated) Approximately 17.50 kg Shipping Weight 19.00 kg Weight When Packed (Stated) About 19.50 kg Packaged Dimensions (L x H x W) 54.00 x 43.00 x 52.00 cm Product Color White Product Material Porcelain Seat and Lid Plastic soft-closing
Product Details
- Rotating base supports flexible pump orientation, with discharge routing to the left, right, or rear.
- Quick-release system enables tool-free access for servicing the macerator pump and discharge hose.
- Touch sensor control panel provides three modes: Eco Flush, Full Flush, and Empty Pump.
- Hygienic vitreous china bowl in a compact design for durability and easy cleaning.
- Easy-to-clean shroud conceals fixings for a neat appearance.
Included Components
- Self-priming PAR-MAX 3 flush water pump
- 1.8-meter hose for connecting the flush water pump to the toilet inlet
- 25 mm wastewater pump outlet piece (straight)
- 25 mm wastewater pump outlet piece (90° elbow)
- Hose adapter for connection to 38 mm wastewater hose
- Strainer
- Control panel with black box
Features
- Quiet operation to minimize disruption onboard
- Low water usage with eco-focused flushing options
- Flexible installation thanks to a rotatable base and rotatable discharge components
- Sea water flushing capability via the included flush pump
-
