ID
1331438
$ 929.99
1-2 weeks delivery time
-
+
The Jabsco 38045-3092 Quiet Flush E2 compact electric toilet delivers quiet 12V DC operation for space-limited marine installations, using a solenoid valve to connect to an existing pressurized fresh water system. A soft-closing plastic seat and lid, easy-clean porcelain bowl, and powerful macerator/centrifugal discharge pumping support hygienic, comfortable use, while the included control panel provides three operating settings and efficient water consumption of 1 litre per complete rinse.
- Description
- Ask a Question
-

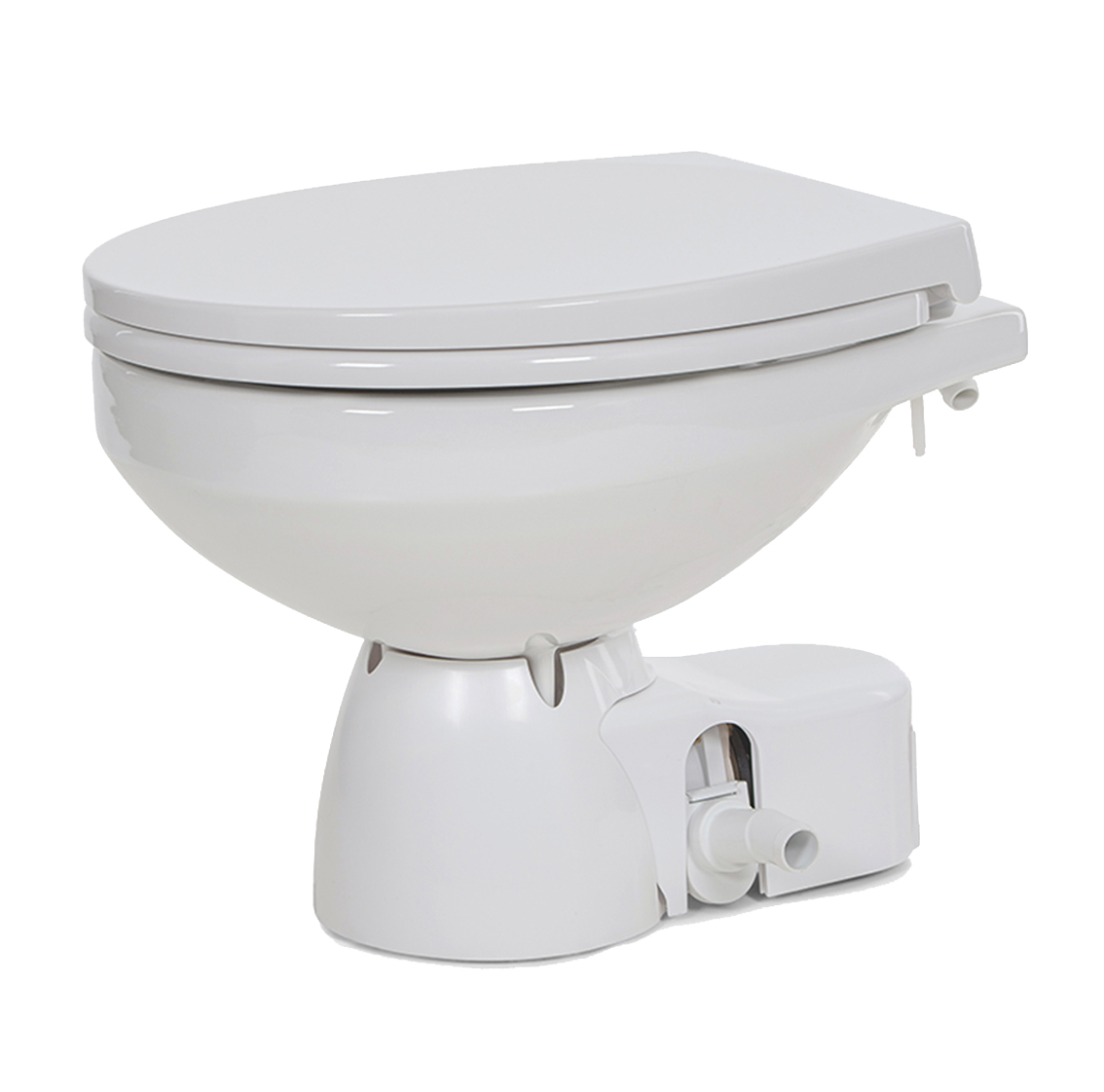

Jabsco 38045-3092 Quiet Flush E2 Compact 12V Electric Marine Toilet Unit
The Jabsco 38045-3092 Quiet Flush E2 is a compact marine electric toilet built for efficient, low-noise onboard comfort where installation space is limited. It combines a hygienic porcelain bowl, soft-closing seat, and a discharge pump system designed to break up and evacuate waste, while a solenoid valve supports connection to an existing pressurized fresh water supply for flushing.
Application
- Marine electric toilet for small spaces (compact bowl size)
- Suitable for fresh water flushing
- Supplied with a solenoid valve for connection to an existing pressurized water system
- Can be mounted up to 1 meter below the waterline
- Can be plumbed to pressurized water systems that can provide a minimum 11 litres per minute flow rate
Technical Specifications
Voltage 12 Volts (12V DC listed) Dimensions (H x W x D) 355 x 352 x 415 mm Dimensions (H x W x D) (also listed) 352 mm x 331 mm x 411 mm Connections 19 mm inlet hose, 25 mm drain hose Water Consumption 1 litre per complete rinse (also listed as approximately 1 2 L per flush) Head 1.2 meters Maximum Current 20 A Fuse Size 25 A Product Weight 15.5 kg Shipping Weight 19.00 kg Actual Weight (listed) 17.50 kg Approximate Packed Weight (listed) 19.50 kg Packaged Dimensions (L x H x W) (listed) 54.00 cm x 43.00 cm x 52.00 cm Color White Material Porcelain (vitreous china bowl listed) Seat and Lid Plastic, soft closing Rinse Solenoid Service / Control Touch 2-button (also listed: touch sensor panel with three settings)
Product Details
- Supplier Code: 38045-3092
- Order Number: 00322162
- Barcode: 671880641418
- Portfolio: Electric Toilets
- Includes a control panel with three settings (listed as normal flush, drain cycle, and water level adjustment; also listed as Eco Flush, Full Flush, or Empty Pump)
- Includes 2 m (6 ft) of white hose to connect the inlet bowl fitting to the inlet pump
- Includes a solenoid valve, siphon breaker assembly, and Pumpgard strainer for easier installation
- Included fittings listed: quick connect port fittings (inlet 15 mm, outlet 19 mm), waste water pump outlet piece in straight and 90 elbow, hose adapter for connection to 38 mm, and control panel with black box
- Fixing points of the base match previous Jabsco Quiet Flush / Standard Marine toilets since 2001 (as listed)
- Alternate to: 37045-0092 and 37045-3092
Features
- Extra quiet operation for improved onboard comfort
- Compact bowl size suited to limited-space installations
- Solenoid valve for connection to an existing pressurized water system (listed with a double check valve for protection against potable water contamination)
- Powerful discharge pumping (listed as macerator discharge pump and as a powerful centrifugal discharge pump) to break up and evacuate waste
- Quick release system for easy servicing access
- Rotatable base for flexible pipe routing (left, right, or rear discharge) with straight and 90 discharge options listed
- Easy-clean shroud that conceals fixings (as listed)
-
