The Jabsco 38245-4192 Quiet Flush E2 electric toilet assembly delivers low-noise 12V DC flushing with a three-way control panel, using just 1 liter of water per complete rinse for efficient onboard operation. Built for raw-water flushing, it includes a remote-mounted intake pump (with strainer) plus a macerator discharge pump for dependable waste evacuation, and it can be installed up to 1 meter below the waterline. A hygienic porcelain bowl, sleek easy-clean design, and soft-closing seat and lid enhance comfort and simplify maintenance, while compatibility with previous Jabsco Quiet Flush and Standard Marine toilets supports straightforward replacement installations.
- Description
- Ask a Question
-

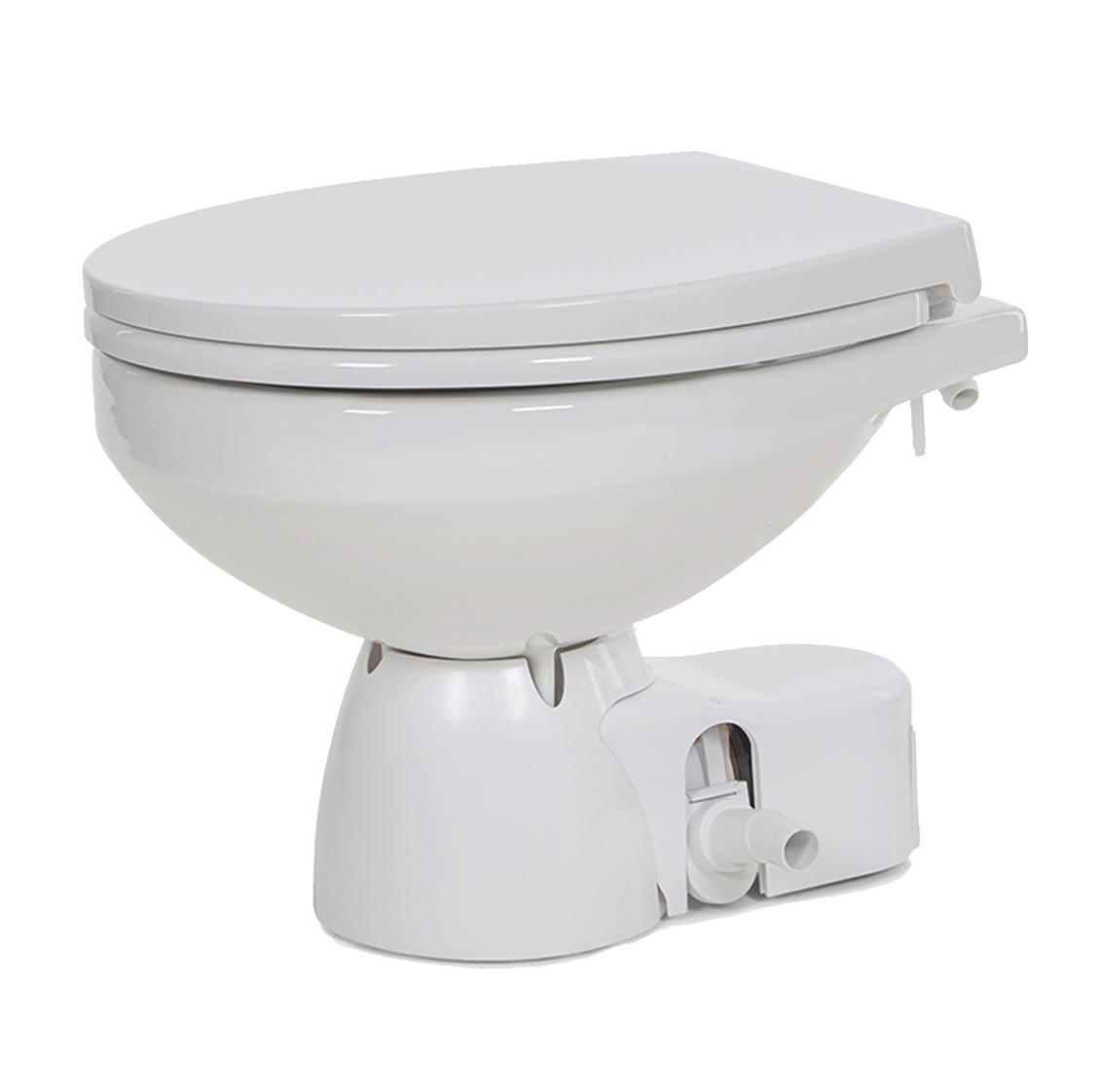

Jabsco 38245-4192 Quiet Flush E2 12V Electric Marine Toilet System
The Jabsco 38245-4192 Quiet Flush E2 is a marine electric toilet designed to provide reliable, quiet operation and efficient flushing onboard. It is intended for raw-water flushing and combines a dedicated flush-water intake pump with a discharge pump for effective waste evacuation, complemented by comfort-focused details such as a soft-closing seat and a hygienic porcelain bowl.
Application
- Marine electric toilet for raw-water flushing
- Can be installed up to 1 meter (3 feet) below the waterline
- Designed for use with sea water, river water, or lake water
Compatibility
- Compatible with previous Jabsco Quiet Flush toilets
- Compatible with previous Jabsco Standard Marine toilets
- Base fixing points match previous Jabsco Quiet Flush toilets since 2001
- Base fixing points match previous Jabsco Standard Marine toilets since 2001
- Listed alternative to Jabsco 37245-1092
- Listed alternative to Jabsco 37245-4092
- Listed alternative to Jabsco 37245-4192
Technical Specifications
Supplier Code 38245-4192 Order Number 00322160 Barcode 671880641470 Voltage 12V DC Water Consumption 1 liter per complete rinse Water Consumption (Listed Range) Approximately 1 to 2 liters per flush Rinse Pump Flow (Minimum) 11 liters per minute Head 1.2 meters Inlet Connection 19 mm inlet hose Discharge Connection 25 mm drain hose Dimensions (H x W x D) 36.2 cm x 36.6 cm x 47.3 cm Dimensions (H x W x D) 362 mm x 366 mm x 473 mm Product Weight 17.5 kg Packed Weight (Listed) Approximately 19.5 kg Shipping Weight (Listed) 19.00 kg Package Dimensions (L x H x W) 54.00 cm x 43.00 cm x 52.00 cm Maximum Current 20 A Fuse Size 25 A Product Portfolio Electric Toilets
Product Details
- Toilet type: Regular electric toilet with quiet flush design
- Control: Three-way control panel; also described with a touch sensor panel offering Eco Flush, Full Flush, or Empty Pump
- Flush water: Raw-water flushing with a separate remote-mounted intake pump (self-priming PAR-MAX 3 pump is listed) and filtration via Pumpgard strainer
- Discharge: Macerator discharge pump for waste evacuation; also described as a powerful centrifugal discharge pump
- Bowl: Pure white vitreous china (porcelain) for hygiene and easy cleaning
- Seat and lid: Plastic soft-closing seat and lid; also described as a composite seat and cover with soft-close function
- Installation flexibility: Rotatable base for routing discharge left, right, or rear
- Service access: Quick-release system for easy access to the macerator pump and discharge hose without tools
- Included connections and parts (listed): Quick-release discharge ports in straight and 90° configurations; 25 mm waste water pump outlet piece in straight and 90° elbow; hose adapter for connection to 38 mm (1-1/2 in) waste water hose; strainer; control panel with black box
- Included hose (listed): 2 meters (6 feet) of white hose to connect the inlet bowl fitting to the inlet pump
- Included hose (listed): White 1.8 m long 19 mm (3/4 in) hose for connecting the flush water pump to the flush water inlet of the toilet
Features
- Quiet flush operation with added noise-reducing design elements
- Efficient rinse performance with low water consumption
- Remote flush-water intake pump for raw-water applications
- Macerator discharge pump for effective waste evacuation
- Soft-closing seat and lid for improved onboard comfort
- Easy-clean shroud that conceals fixings
- Flexible installation thanks to a rotatable base and quick-release discharge port options
-
