The Jabsco 38045-4194 Quiet Flush E2 electric toilet is a regular-bowl, 24V marine sanitation unit built for quiet, comfortable operation with fresh water flushing via a solenoid valve. It integrates with pressurized water systems (minimum 11 liters per minute or 3 gpm) and combines a macerator discharge pump, three-way control panel, and soft-closing seat for efficient, user-friendly waste management in onboard installations.
- Description
- Ask a Question
-

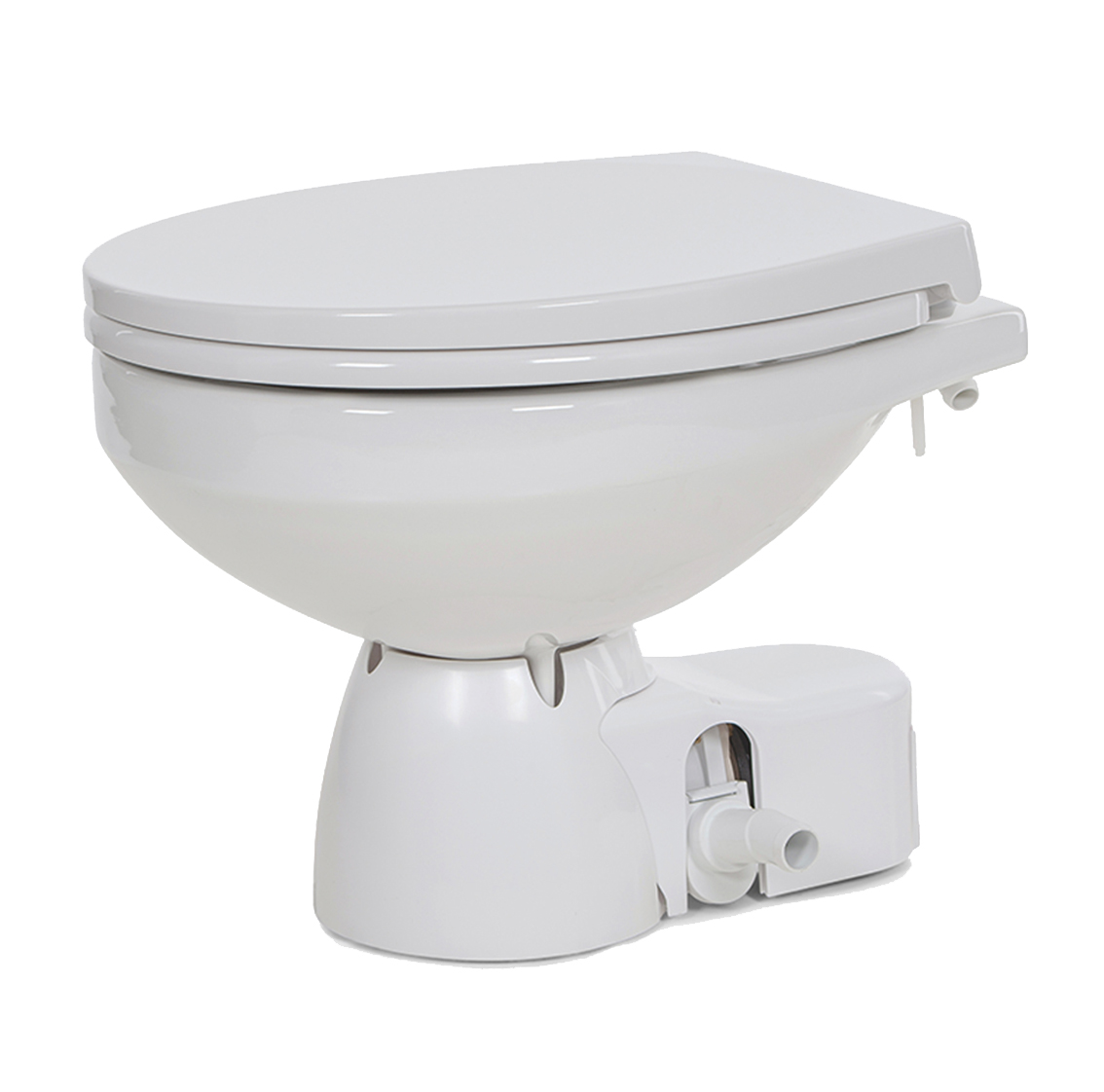

Jabsco 38045-4194 Quiet Flush E2 24V Electric Marine Toilet Unit
The Jabsco Quiet Flush E2 is an electric marine toilet designed to deliver a quieter flush experience and easy day-to-day operation onboard. Built around a durable white vitreous china bowl and paired with a soft-closing seat, it supports fresh water flushing through a solenoid valve and uses an integrated macerator discharge pump to evacuate waste efficiently.
Application
- Marine electric toilet for fresh water flushing
- Designed for 24V systems (a separate provided data table also lists 12V)
- Compatible with pressurized water systems
- Installation possible up to 1 meter (3 feet) below the waterline
Compatibility
- Pressurized water system with minimum 11 liters per minute (3 gpm) flow rate
Technical Specifications
Order Number 00322159 Supplier Code 38045-4194 Barcode 671880641449 Voltage 24V (another provided data table lists 12V) Dimensions (H x W x D) 362 x 366 x 473 mm Connections 19 mm inlet hose, 25 mm drain hose Water Consumption 1 liter per complete rinse (also listed as approximately 1–2 liters per flush) Maximum Current 10 A Fuse Size 13 A Head 1.2 meters Product Weight 17.5 kg Packed Weight 19.5 kg Shipping Weight 19.00 kg Packaged Dimensions (L x H x W) 54.00 x 43.00 x 52.00 cm Product Color White Product Material Porcelain Bowl Material White vitreous china Seat and Lid Plastic soft closing (also described as composite seat and cover with soft close function) Control / Service Panel Three-way control panel; touch 2-button; touch sensor settings include Eco Flush, Full Flush, and Empty Pump Rinse Type Solenoid
Product Details
- Flush system: Solenoid valve for fresh water flushing and integration with an existing pressurized water pump
- Discharge: Macerator discharge pump and powerful centrifugal discharge pump are both specified in the provided data
- Installation flexibility: Rotatable base supports discharge routing to the left, right, or rear
- Service access: Quick release system for straightforward access to the discharge pump for servicing
- Hose connection support: Includes 2 meters (6 feet) of white hose for connection to the inlet bowl fitting
- Protection: Solenoid valve with double check valve for protection against potable water contamination
Features
- Quiet flush design based on the Jabsco 37010 series
- Regular bowl size designed to mimic household toilets for comfort
- Soft-closing seat for improved onboard convenience
- Eco mode available on the electronic control panel to conserve water
- Discharge options supported with straight or 90° discharge ports
- Easy-clean shroud that conceals fixings
- Base fixing points match previous Jabsco Quiet Flush and Standard Marine toilets since 2001
- Included items listed in the provided data: solenoid valve with quick connect port fittings (inlet 15 mm, outlet 19 mm), siphon breaker assembly, Pumpgard strainer, 25 mm waste water pump outlet piece in straight and 90° elbow, hose adapter for 38 mm connection, and control panel with black box
- Alternate to: Jabsco 37045-1094
- Alternate to: Jabsco 37045-4094
- Alternate to: Jabsco 37045-4194
-
