The Jabsco 38245-4194 Quiet Flush E2 electric toilet unit delivers low-noise, water-efficient flushing for marine or RV installations with 24V DC operation. A rotating base supports flexible discharge routing to the left, right, or rear, while the quick-release system allows tool-free access for maintenance. The self-priming PAR-MAX 3 flush water pump is seawater compatible with 19 mm connections, and a centrifugal discharge pump with a 25 mm connection helps evacuate waste efficiently. A soft-close seat, white vitreous china bowl, and touch sensor control panel with Eco Flush, Full Flush, and Empty Pump settings enhance comfort and day-to-day usability.
- Description
- Ask a Question
-

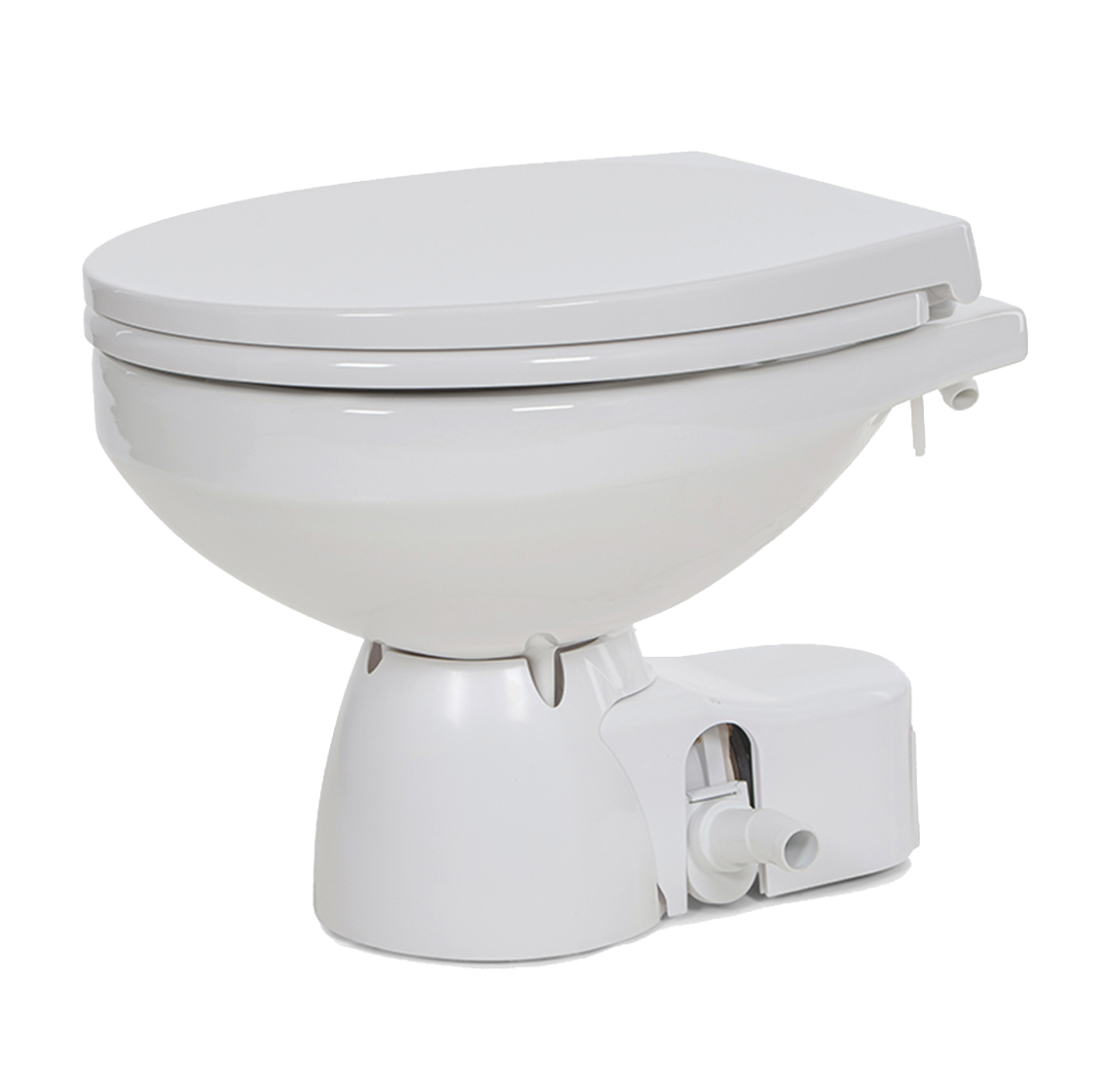

Jabsco 38245-4194 Quiet Flush E2 24V Electric Toilet System
The Jabsco Quiet Flush E2 electric toilet is built to simplify onboard comfort with easy installation, straightforward servicing, and quiet operation. Its rotatable base and quick-release access are designed to make fitting and maintenance easier, while the included flush water pump supports seawater flushing for practical use in marine environments.
Application
- Marine installations
- RV installations
Compatibility
- Compatible with previous Jabsco Quiet Flush toilets since 2001
- Compatible with previous Jabsco Standard Marine toilets since 2001
Technical Specifications
Order Number 00322161 Supplier Code 38245-4194 Barcode 671880641487 Voltage (Stated) 24 V DC Voltage (Also Listed) 12 V Maximum Current Draw 10 A Fuse Size 13 A Water Consumption Approx. 1–2 L per flush Water Consumption (Complete Rinse) 1 L Rinse Pump Capacity Minimum 11 L/min Inlet Connection 19 mm inlet hose Discharge Connection 25 mm drain hose Head Height 1.2 m Flush Pump Self-Priming Up to 1.8 m Dimensions (H x W x D) 36.2 cm x 36.6 cm x 47.3 cm Packaged Dimensions 54 cm x 43 cm x 52 cm Product Weight Approx. 17.5 kg Packed Weight Approx. 19.5 kg Shipping Weight 19.00 kg Color White Bowl Material Porcelain (vitreous china)
Product Details
- Control: Touch sensor panel with Eco Flush, Full Flush, and Empty Pump settings
- Service Mode: Touch 2-button system
- Installation Flexibility: Rotating base with discharge routing to the left, right, or rear
- Maintenance Access: Quick-release system for access to the macerator pump and discharge hose (no tools required)
- Flush Water Pump: Self-priming PAR-MAX 3 pump, seawater compatible, 19 mm hose connections
- Discharge Pump: Centrifugal pump with 25 mm hose connection
- Seat and Lid: Plastic/composite with soft-close function
- Shroud: Easy-clean shroud that conceals fixings
Included Components
- Flush water pump
- White 1.8 m long 19 mm hose (flush pump to toilet water inlet)
- 25 mm wastewater pump outlet piece (straight)
- 25 mm wastewater pump outlet piece (90° elbow)
- Hose adapter for 38 mm waste hose connection
- Strainer
- Control panel with black box
Features
- Low-noise Quiet Flush operation for improved onboard comfort
- Water-saving Eco mode with efficient flush performance
- Seawater flushing capability via the included self-priming pump
- Quick-release access supports easier servicing and maintenance
- Soft-close seat and durable white bowl for a clean, easy-to-maintain installation
Alternative Models
- Alternative to Jabsco 37245-1094
- Alternative to Jabsco 37245-4094
- Alternative to Jabsco 37245-4194
-
