The Jabsco 37010-4192 electric toilet unit delivers 12V waste handling for marine and RV sanitation systems, combining a high-capacity macerator with a bowl scavenger pump for a thru flow of approximately 0.9 to 1.4 liters per 5 seconds. A soft-closing composite seat and lid and a simple push-button control support comfortable, straightforward operation, while the self-priming rinse system and supplied hose adapters simplify installation with 16 mm or 19 mm inlet hose options and 25.4 mm discharge, with adaptation for 38 mm waste plumbing.
- Description
- Ask a Question
-

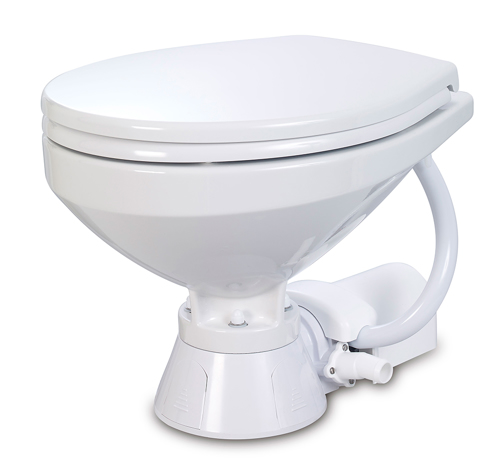

Jabsco 37010-4192 12V Electric Toilet With Soft-Close Seat
The Jabsco 37010-4192 is an economy electric toilet designed for dependable sanitation performance in marine and RV environments. It uses a combined macerator and bowl scavenger pump arrangement to support efficient waste removal, and it features a household-sized white vitreous china bowl paired with a soft-closing composite seat and lid for added comfort.
Application
- Marine sanitation systems (boats and yachts)
- RV sanitation systems
- Suitable for discharge overboard or into holding tanks
- May be installed above or below the waterline (installation must follow safety instructions and local discharge regulations)
- Designed as an alternate to model 37010-1090
Technical Specifications
Supplier Code 37010-4192 Order Number 00320006 Barcode 671880628334 Voltage 12 V DC Amperage Rating 16 A Recommended Fuse Size 25 A Flow Rate (Thru Flow / Flush Volume) Approx. 0.9 to 1.4 L per 5 seconds of operation Rinse System Self-priming Service Type Push button (momentary control switch included) Inlet Connection 16 mm or 19 mm inlet hose Discharge Connection 25.4 mm discharge hose Drain / Waste Plumbing Options 25 mm or 38 mm drain hose (hose adapter included for 38 mm waste plumbing) Maximum Pressure 40 psi Self-Priming / Discharge Head Flush pump self-priming up to 4 ft (1.2 m) vertical lift; discharge macerator pump can operate against a maximum vertical head of 4 ft (1.2 m) Installation Depth Note May be mounted 3 ft below the waterline Dimensions (HxWxD) Set 1 372 x 375 x 502 mm Dimensions (HxWxD) Set 2 365 x 375 x 486 mm Packaged Dimensions (LxHxW) 60.00 x 55.00 x 54.00 cm Weight 16 kg Shipping Weight 18.00 kg Color White Bowl Material Porcelain (white vitreous china bowl) Seat and Lid Duroplast soft-closing
Product Details
- Pump system: Macerator and bowl scavenger pump; flexible impeller flush pump
- Operational note: This model operates with a characteristic noise
- Installation flexibility: Base assembly may be moved 90 degrees to accommodate connections and improve servicing access
- Mounting guidance: The mounting surface should be flat to help prevent distortion of the toilet base
- Water supply guidance: Do not connect the toilet to the vessel’s potable water supply; if fresh water flushing is preferred, use a separate fresh water tank dedicated to the toilet
Features
- High-capacity macerator combined with a bowl scavenger pump
- Soft-close composite seat and lid
- Simple push-button operation with included momentary control switch
- Household-sized white vitreous china bowl designed for comfort and ease of cleaning
- Hose adapters included to support multiple inlet and waste plumbing configurations
-
