ID
1331419
$ 260.06
1-2 weeks delivery time
-
+
The Jabsco 37038-2024 solenoid and anti-siphon valve assembly delivers controlled 24V DC fresh-water flushing for Jabsco Quiet Flush fresh water toilets, using an inline, normally closed design with a double check valve to help prevent potable water contamination. It includes an internal inlet filter, a mounting bracket, and 15 mm JG Speedfit connections with a 13 mm hose barb inlet and 19 mm hose barb outlet, and it can be installed in any orientation above or below the toilet while replacing the Jabsco 37038-1024 model.
- Description
- Ask a Question
-

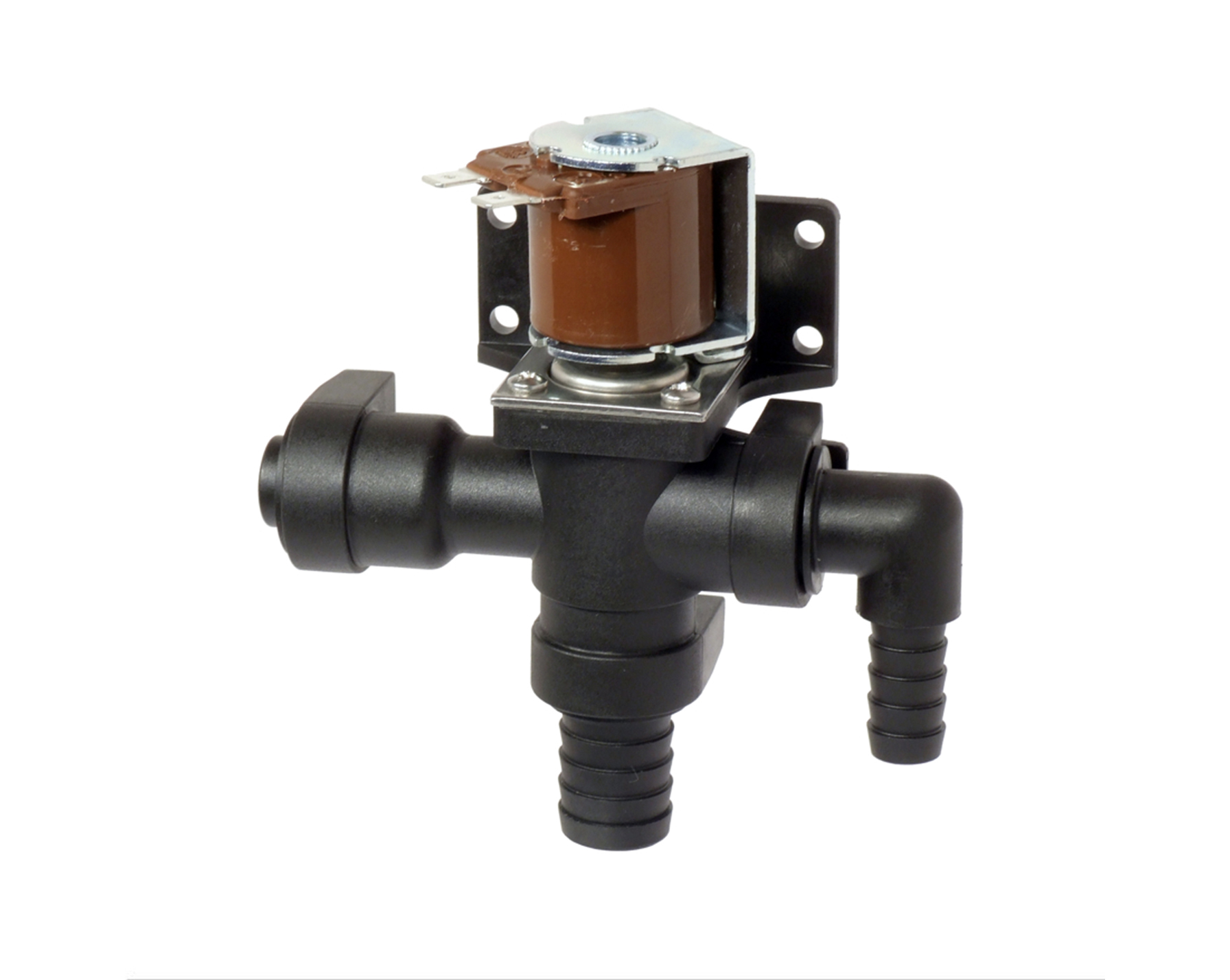

Jabsco 37038-2024 24V Solenoid and Anti-Siphon Valve Unit
The Jabsco 37038-2024 is a 24V DC inline solenoid and anti-siphon valve designed to manage fresh-water supply to Jabsco marine toilets. With a normally closed valve design, integrated siphon-break function, and contamination-protection features, it supports clean, reliable flushing installations above or below the toilet using the included mounting bracket.
Application
- Jabsco Fresh Water Flush Quiet Flush toilets
- Quiet Flush fresh water toilets
- Deluxe Flush fresh water toilets
Compatibility
- Jabsco Quiet Flush toilet model 38045-3094
- Jabsco Quiet Flush toilet model 38045-4194
- Jabsco toilet series 37045
- Jabsco toilet series 37055
- Jabsco toilet series 37075
- Jabsco toilet series 58XX0
Technical Specifications
Brand Jabsco Model 37038-2024 Voltage 24V DC Valve Type Solenoid and Anti-Siphon Valve Valve Design Siphon Break Valve Configuration Inline, Normally Closed Connection Size 15 mm JG Speedfit Inlet Port 13 mm hose barb inlet Outlet Port 19 mm hose barb outlet Dimensions (With Bracket) Height 64 mm (2.5 in), Length 71 mm (2.8 in), Width 114 mm (4.5 in) Mounting Hole Spacing 19 mm x 54 mm (3/4 in x 2.1 in) Weight (Valve) 0.54 kg Weight (Packed) Approximately 0.79 kg Shipping Weight 0.80 kg Replaces Jabsco 37038-1024 Alternative To Jabsco 37030-0024, Jabsco 37038-1024, Jabsco 37030-2024 Order Number 00322148 Supplier Code 37038-2024 Barcode 671880637503
Product Details
- Protection: Double check valve to help prevent contamination of potable water
- Filtration: Internal inlet filter
- Installation: Mountable in any orientation, above or below the toilet
- Included: Mounting bracket and JG Speedfit-to-hose barb inlet and outlet connections
- Exploded View Reference: Indicated as part No. 27 (37045 and 37055), No. 24 (37075), and No. 31 (58XX0)
Features
- 24V DC solenoid control for fresh-water flush systems
- Normally closed inline valve design
- Anti-siphon functionality with siphon-break valve design
- 15 mm JG Speedfit connections with hose barb inlet and outlet
-
