ID
1331411
$ 680.38
1-2 weeks delivery time
-
+
The Jabsco 37010-4094 economy electric toilet is a 24V DC marine sanitation unit with a regular household-size porcelain bowl and a luxury wooden seat with a durable baked enamel finish. A self-priming flushing pump supports up to 1.2 m vertical lift, while the built-in backflow preventer and adjustable flush volume help deliver clean, controlled operation for either overboard or holding tank discharge. Designed for saltwater use with stainless steel and bronze fastenings, it can be mounted up to 1 m below the waterline and uses push-button control with 8 A draw and a 15 A fuse rating.
- Description
- Ask a Question
-

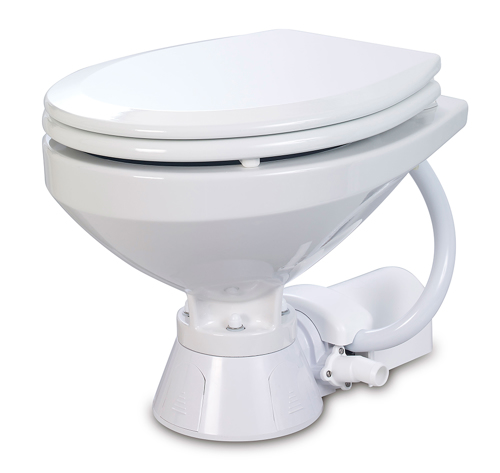

Jabsco 37010-4094 24V Economy Electric Marine Toilet Unit
Jabsco 37010-4094 is a 24V DC economy regular electric toilet built to deliver household-style comfort on board. It combines a hygienic white porcelain bowl with an electric flushing system designed for reliable operation in marine environments, including saltwater service.
Application
- Boats
- Yachts
- Marine vessels
- RVs
Compatibility
- Replaces Jabsco 37010-1096 model
- Alternate to Jabsco 37010-1096
- Replaces 507718 (Jabsco 37010-1096 Electric Toilet, 24V, Regular Bowl)
- Supplied with seat 29127-1000
Technical Specifications
Supplier Code 37010-4094 Order Number 00320005 Barcode 671880628341 Voltage 24 V DC Maximum Current 8 A Fuse Size 15 A Bowl Material White vitreous china (porcelain) Color White Seat and Lid White lacquered wood; baked enamel finish Service Type Push button Rinse System Self-priming Toilet Flush Water Raw water Vertical Lift (Self-Priming Flush Pump) Up to 1.2 m (4 ft) Maximum Discharge Vertical Head Up to 1.2 m (4 ft) Mounting Depth Below Waterline Up to 1 m (3 ft) Flush Volume Adjustable Flow Rate Approx. 0.9 to 1.4 L per 5 seconds of operation Connections Inlet hose 16 to 19 mm; drain hose 25 or 38 mm Connections (Additional Listing) Inlet hose 16 or 19 mm; discharge hose 25.4 mm; hose adaptor included for 38 mm waste plumbing Dimensions (H x W x D) 365 x 375 x 486 mm Dimensions (Additional Listing) Height 37.2 cm; width 37.5 cm; depth 50.2 cm New Bowl Profile 365 mm x 460 mm Weight 16 kg Actual Weight 15.70 kg (approx. 17.70 kg packed) Shipping Weight 18.00 kg Packaged Dimensions L: 60.00 cm x H: 55.00 cm x W: 54.00 cm Approvals USCG 183.410; ISO 8846 Marine (Ignition Protection) Product Portfolio Electric Toilets
Product Details
- Toilet type: Electric toilet with combined rinse and wastewater pump
- Pump system: Self-priming flexible impeller flush pump
- Discharge handling: Suitable for overboard discharge or holding tank discharge
- Construction: Saltwater-compatible stainless steel and bronze fastenings
- Installation note: May be installed above or below the waterline
- Base orientation: Base assembly may be moved 90 degrees to accommodate connections and improve service access
- Operational note: This unit runs with a characteristic noise
Features
- Pure white vitreous china bowl for hygienic, easy maintenance
- Luxury wooden seat and cover with a durable baked enamel finish
- Built-in backflow preventer to help prevent reverse flow
- Self-priming flushing pump with up to 1.2 m (4 ft) vertical lift capability
- Adjustable flush volume
- Can be mounted up to 1 m (3 ft) below the waterline
- Simple push-button switch included (momentary control switch included)
- Molded splashguard included
- Solenoid valve recommended for vented loop installations
Important note: Do not connect the toilet to the vessel’s potable water supply. If fresh water is preferred for flushing, provide a separate fresh water tank dedicated to the toilet.
-
