The Jabsco 37038-2012 solenoid and anti-siphon valve unit is a 12V DC, inline, normally closed valve designed for Jabsco Quiet Flush fresh water toilets, providing controlled water flow with contamination protection via a double check valve and internal inlet filter. It installs with 15mm JG Speedfit connections plus a 13mm hose barb inlet and 19mm hose barb outlet, includes a mounting bracket, and can be mounted in any orientation above or below the toilet. This model replaces Jabsco 37038-1012 and is listed for use with toilet models 38045-3092 and 38045-4192, as well as the Jabsco toilet series 37045, 37055, 37075, and 58XX0.
- Description
- Ask a Question
-
Jabsco 37038-2012 Inline Solenoid and Anti-Siphon Valve Unit
The Jabsco 37038-2012 is an inline solenoid and anti-siphon valve assembly for fresh water marine toilets, built to manage flush water flow while helping protect potable water systems. Supplied with a mounting bracket and quick-fit connections, it can be installed above or below the toilet and mounted in any orientation.
Application
- Jabsco Fresh Water Flush Quiet Flush toilets
- Quiet Flush fresh water toilets
- Deluxe Flush fresh water toilets
Compatibility
- Jabsco Quiet Flush toilet model 38045-3092
- Jabsco Quiet Flush toilet model 38045-4192
- Jabsco toilet series 37045
- Jabsco toilet series 37055
- Jabsco toilet series 37075
- Jabsco toilet series 58XX0
Technical Specifications
Model 37038-2012 Voltage 12V DC Valve Type Inline, normally closed solenoid valve Valve Design Siphon Break Valve Inlet/Outlet Port Sizes 15mm JG Speedfit; 13mm hose inlet; 19mm hose outlet Connections (Also Stated) 15mm (1/2 inch) JG Speedfit connections; 15mm (1/2 inch) hose barb inlet; 19mm (3/4 inch) hose barb outlet Dimensions (With Bracket) Height 64mm (2.5 inch), Length 71mm (2.8 inch), Width 114mm (4.5 inch) Mounting Hole Spacing 19mm x 54mm (3/4 inch x 2.1 inch) Weight 0.54 kg Packed Weight (Approx.) 0.79 kg Shipping Weight 0.80 kg Barcode 671880637497 Order Number 00320196 Supplier Code 37038-2012
Product Details
- Purpose: Controls flush water flow and helps prevent backflow contamination in fresh water toilet installations
- Protection: Double check valve for contamination protection; internal inlet filter
- Mounting: Can be mounted in any orientation; suitable above or below the toilet

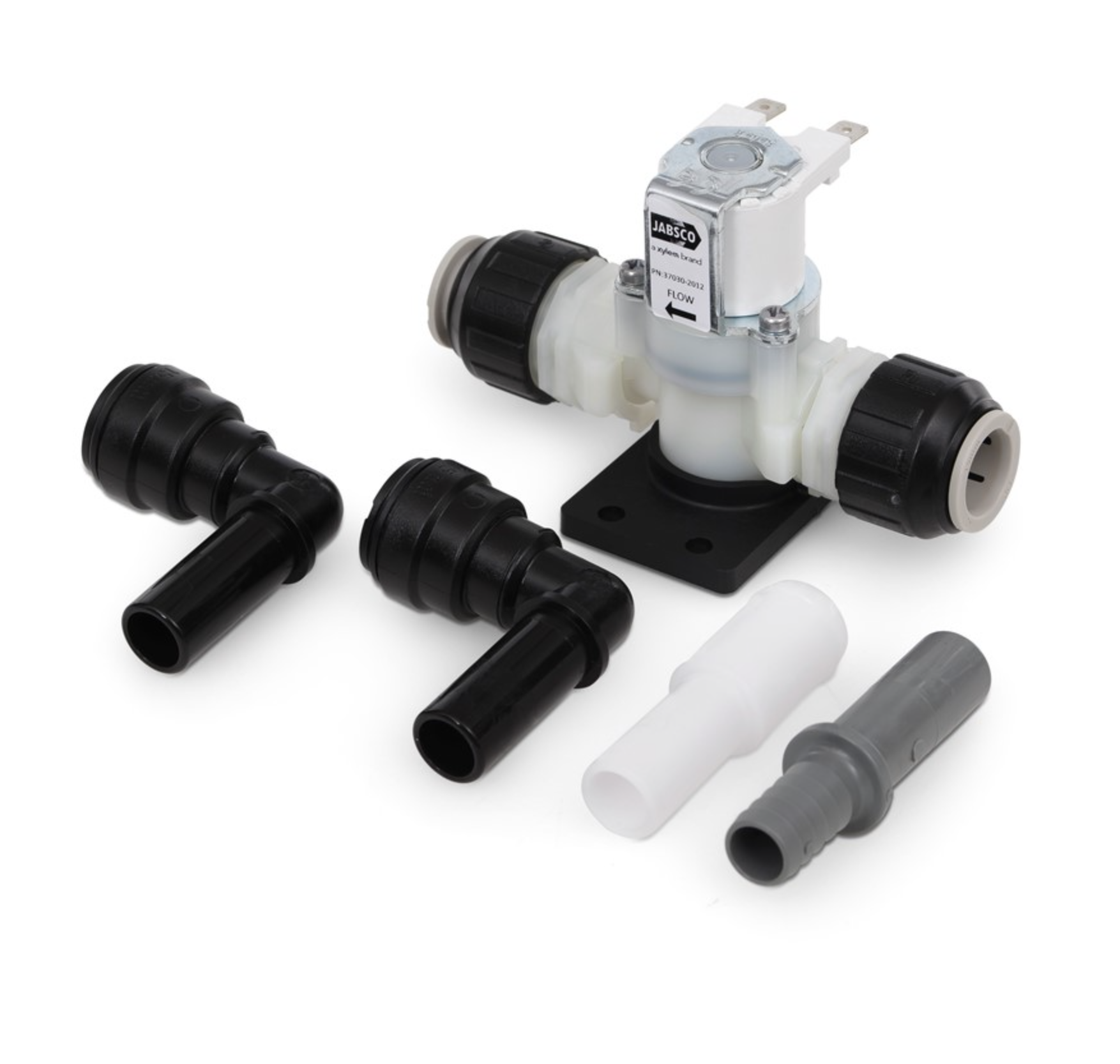

- Included: Mounting bracket; 1 x 15mm JG Speedfit connection to 13mm (1/2 inch) hose barb (inlet); 1 x 15mm JG Speedfit connection to 19mm (3/4 inch) hose barb (outlet)
- Replaces: Jabsco 37038-1012
- Alternatives Listed: Jabsco 37030-0012; Jabsco 37038-1012; Jabsco 37030-2012
Features
- Inline, normally closed operation for controlled flow
- Double check mechanism to help protect potable water from contamination
- Internal inlet filter for added protection
- Mounts in any orientation with the included bracket
- Quick-fit 15mm JG Speedfit connections with hose barb inlet/outlet options
-
