ID
1331413
$ 784.41
1-2 weeks delivery time
-
+
The Jabsco 37010-4194 electric marine toilet unit delivers 24V flushing with a high-capacity macerator and bowl scavenger pump, paired with a soft-close seat and simple push-button control for straightforward operation. It supports 16 mm or 19 mm inlet hoses and 25.4 mm discharge hose connections, with an included adaptor for 38 mm waste plumbing, and provides approximately 0.9 to 1.4 liters per 5 seconds of operation. Built around a white vitreous china bowl with a self-priming rinse function, it is rated at 8A with a 15A fuse and is sized at 37.2 cm high x 37.5 cm wide x 50.2 cm deep, with a listed weight of 16 kg.
- Description
- Ask a Question
-

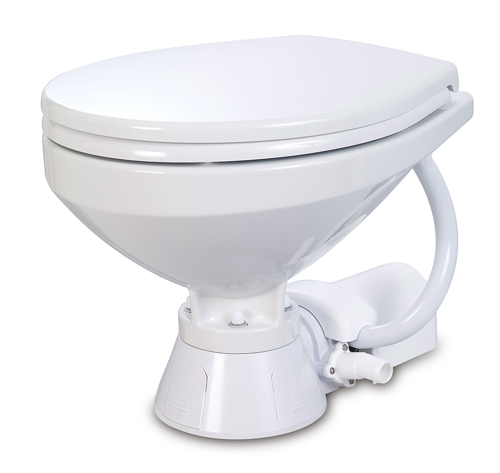

Jabsco 37010-4194 24V Economy Electric Marine Toilet Unit
The Jabsco 37010-4194 is a 24V DC economy electric toilet designed for reliable onboard waste management. It combines a regular household-size vitreous china bowl with a soft-close seat and lid, plus a macerator-based discharge system to support comfortable, convenient flushing on marine installations.
Application
- Marine toilet installation (may be installed above or below the waterline)
- Suitable for overboard discharge or holding tank discharge
Compatibility
- Alternate model to Jabsco 37010-1096
- Inlet hose connections: 16 mm
- Inlet hose connections: 19 mm
- Discharge hose connections: 25.4 mm
- Included adaptor for waste plumbing: 38 mm
Technical Specifications
Brand Jabsco Supplier Code 37010-4194 Order Number 00320007 Barcode 671880628358 Product Portfolio Electric Toilets Voltage 24 V Amperage 8 A Fuse Size 15 A Through-Flow Capacity Approximately 0.9 to 1.4 L per 5 seconds of operation Dimensions (H x W x D) 37.2 cm x 37.5 cm x 50.2 cm Weight 16 kg Shipping Weight 18.00 kg Color White Material Porcelain
Product Details
- Bowl: White vitreous china, regular household size
- Pumps: High-capacity macerator and bowl scavenger pump
- Rinse: Self-priming rinse function
- Control: Simple push-button control with momentary control switch provided
- Installation flexibility: Base assembly may be moved 90 degrees to accommodate connections and improve service access
- Priming and head: Self-priming up to 4 ft (1.2 m); discharge through a maximum vertical head of 4 ft (1.2 m)
- Backflow protection: Built-in backflow preventer
- Mounting note: Surface where the toilet is mounted should be flat to prevent distortion of the toilet base
Features
- Soft-close seat and lid
- Hose connection flexibility: 16 mm or 19 mm inlet; 25.4 mm discharge; adaptor included for 38 mm waste plumbing
- Includes molded splashguard and a simple switch
- Characteristic operating noise typical of this unit
- Compliance: USCG 183.410 and ISO 8846 MARINE
- Important note: Do not connect the toilet to the vessel's potable water supply. If fresh water is preferred for flushing, provide a separate fresh water tank supplying only the toilet.
-
