The Jabsco 37010-4092 electric marine toilet unit delivers 12V DC flushing with a self-priming rinse pump and a built-in backflow preventer for cleaner, more reliable onboard sanitation. Its regular household-size, pure white vitreous china bowl pairs with a luxury wooden seat and cover, while variable flush volume settings help manage water use. Designed for overboard or holding tank discharge, it supports installation up to 1 m below the waterline and uses common marine hose connections for intake and discharge.
- Description
- Ask a Question
-

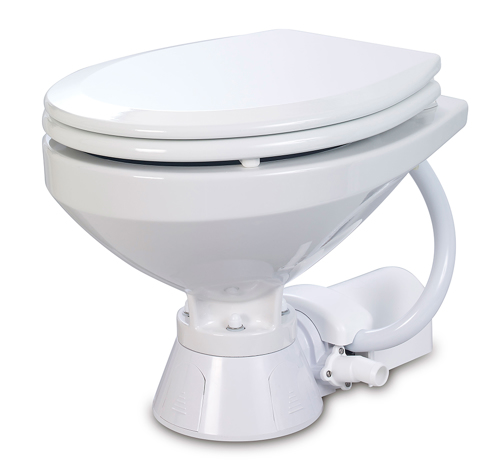

Jabsco 37010-4092 Economy Electric Marine Toilet Unit
The Jabsco 37010-4092 is a 12V DC economy electric toilet built around a comfortable household-size bowl and an electric flushing system intended for dependable service in marine environments. It is suitable for overboard discharge or connection to a holding tank, and it includes a built-in backflow preventer to support hygienic operation.
Application
- Marine sanitation systems
- Overboard discharge applications
- Holding tank discharge applications
- Installation up to 1 m below the waterline
Compatibility
- Upgrade and replacement for Jabsco 37010-1092
- Alternate to Jabsco 37010-1090
Technical Specifications
Supplier Code 37010-4092 Order Number 00320004 Barcode 671880628327 Voltage 12 Volts (12V DC) Dimensions (H x W x D) 365 x 375 x 486 mm Dimensions (H x W x D) 37.2 cm x 37.5 cm x 50.2 cm Bowl Profile 365 mm x 460 mm Weight 16 kg Shipping Weight 18.00 kg Color White Bowl Material Porcelain (Vitreous China) Seat and Lid White lacquered wood; baked enamel seat and cover Service Type Push button (switch included) Rinse System Self-priming Self-Priming / Vertical Lift Up to 1.2 m (4 ft) Maximum Discharge Vertical Head Up to 1.2 m (4 ft) Install Depth Below Waterline Up to 1 m (3 ft) Flow Rate Approx. 0.9 to 1.4 L per 5 seconds of operation Amperage 16 A Recommended Fuse Size 25 A Connections Inlet hose 16 to 19 mm (also listed as 16 or 19 mm); discharge hose 25 or 38 mm (also listed as 25.4 mm), with hose adaptor included to adapt to 38 mm waste plumbing
Product Details
- Bowl: Pure white vitreous china for easier cleaning
- Fastenings: Stainless steel and bronze fastenings for saltwater service
- Backflow Protection: Built-in backflow preventer
- Base Assembly: May be moved 90 degrees to accommodate connections and improve service accessibility
- Note: This unit runs with a characteristic noise
- Guidance: Do not connect the toilet to the vessel's potable water supply; if fresh water flushing is preferred, use a separate fresh water tank dedicated to the toilet
- Standards: Complies with USCG 183.410 and ISO 8846 (marine)
Features
- Self-priming electric flushing pump with up to 1.2 m vertical lift
- Variable flush volume settings
- Suitable for overboard or holding tank discharge
- Can be installed up to 1 m below the waterline
- Luxury wooden seat and cover with tough baked enamel coating
- Push button control included
- Hose adaptor included to adapt to 38 mm waste plumbing
- For installations with vented loops, a solenoid valve is recommended
Spare Parts Available
- Catalog 37041-0010: Macerator Pump and Motor Assembly, 12 Volt DC
-
