The Jabsco 37010-3094 compact 24V electric marine toilet delivers reliable flushing and draining with an integrated pump system, a vertical self-priming impeller flush pump, and built-in backflow protection. Its space-saving compact bowl design suits boats and yachts, supports installation above or below the waterline (up to 1 meter below with correct plumbing), and provides flexible hose connections for common marine inlet and discharge sizes. With a high-capacity macerator, momentary push-button control, and a white porcelain bowl, it combines dependable waste handling with practical installation versatility.
- Description
- Ask a Question
-

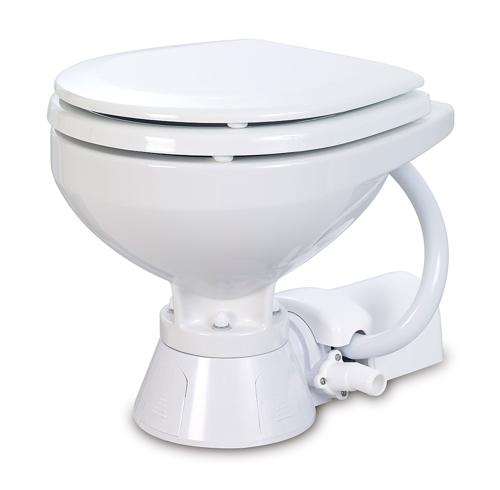

Jabsco 37010-3094 Compact 24V Electric Marine Toilet Unit
The Jabsco 37010-3094 is an economy-series electric toilet built for 24V marine electrical systems where space is limited. Combining flushing and waste discharge functions in a compact format, it supports dependable onboard sanitation with a self-priming pump arrangement and integrated backflow protection for safer operation in marine environments.
Application
- Designed for 24V marine electrical systems
- Ideal for compact installations on boats, yachts, and other vessels
- Suitable for inland waterways, rivers, lakes, and the sea
- May discharge overboard or into holding tanks (as required)
- Can be installed above or below the waterline; installation up to 1 meter below the waterline is possible with correct plumbing to avoid flooding
Technical Specifications
Supplier Code 37010-3094 Order Number 00320003 Barcode 671880628310 Voltage 24V Maximum Current 8A Fuse Size 15A Thru-Flow Rate 0.9 to 1.4 liters per 5 seconds of operation Self-Priming Vertical Lift Up to 1.2 meters (4 feet) Installation Depth Up to 1 meter below the waterline (with correct plumbing) Dimensions (H x W x D) 355 x 352 x 451 mm Weight 14 kg Shipping Weight 16.00 kg Packed Weight (Approx.) 15.00 kg Color White Bowl Material Porcelain Product Portfolio Electric Toilets Alternate To Jabsco 37010-0096
Product Details
- Toilet type: Standard series compact electric toilet with integrated flushing and draining pump
- Pump system: Vertical self-priming impeller flush pump with high-capacity macerator and bowl scavenger pump
- Backflow protection: Built-in backflow protection (backflow preventer)
- Controls: Easy On-Off push button control; momentary control switch included
- Hose connections: 16 to 19 mm inlet; 25 or 38 mm drain
- Hose adapter: Includes hose adapter to adapt to 38 mm waste plumbing
- Bowl: White vitreous china bowl in compact size
- Seat and lid options: White lacquered wood or Duroplast soft closing options; baked enamel seat and cover
- Service access: Base assembly may be moved 90 degrees to accommodate connections and provide accessibility for servicing
- Installation note: Surface where the toilet is mounted should be flat to prevent distortion of the toilet base
- Water supply note: Do not connect the toilet to the vessel's potable water supply; if fresh water is preferred for flushing, provide a separate fresh water tank to supply water to the toilet only
Features
- Compact bowl design for space-saving marine installations
- Reliable flushing and draining system tailored for 24V setups
- Self-priming performance supporting flushing up to 1.2 meters vertical lift
- Built-in backflow protection to help reduce backflow risk
- Flexible plumbing options with multiple inlet and discharge hose sizes
- Operates with characteristic noise typical for high-capacity macerators
-
