ID
1331407
$ 695.33
1-2 weeks delivery time
-
+
The Jabsco 37010-0097 24V electric toilet conversion kit upgrades compatible manual marine toilets to electric operation using a high-capacity macerator and bowl scavenger pump with a through-flow of approximately 0.9–1.4 liters per 5 seconds. Push-button control is included, along with inlet options for 16 mm or 19 mm hose and a 25.4 mm discharge connection with an adaptor for 38 mm waste plumbing. With 24V operation (8A) and a recommended 15A fuse, this compact kit is built to simplify installation while delivering efficient waste removal in marine environments.
- Description
- Ask a Question
-
Jabsco 37010-0097 24V Electric Toilet Conversion Kit
The Jabsco 37010-0097 conversion kit is a high-performance solution for upgrading a compatible manual marine toilet to electric operation. It combines a macerator and bowl scavenger pump for efficient waste removal and includes a momentary push-button switch for straightforward control.
Application
- Converts manual marine toilets to electric operation
- Suitable for marine installations; the electric toilet may be installed above or below the waterline
- Note: This unit operates with a characteristic noise
Compatibility
- Jabsco Manual Toilet 29090
- Jabsco Manual Toilet 29120
- Marine toilets with a 95.3 mm bolt circle and 4-hole base pattern
- Raritan PH
- Raritan Compact
- Wilcox-Crittenden Head Mate
- Groco HC
- Brydon No. 9127
- Brydon No. 9128
- Brydon No. 59128
Technical Specifications
Voltage 24V DC Current 8A Recommended Fuse 15A Through-Flow Approx. 0.9–1.4 liters per 5 seconds of operation Inlet Hose Connections 16 mm or 19 mm (5/8 in or 3/4 in) Discharge Hose Connection 25.4 mm (1 in) with included adaptor to fit 38 mm (1-1/2 in) waste plumbing Dimensions (H x W x L) 96 mm x 181 mm x 368 mm Packaged Dimensions (L x H x W) 37.00 cm x 10.00 cm x 22.00 cm Actual Weight 3.73 kg (approx. 4.23 kg packed) Shipping Weight 3.80 kg Compliance EN50081-1 (electromagnetic interference suppression); USCG 183.410 and ISO 8846 Marine (ignition protection) Barcode 671880522540 Order Number 00320047 Supplier Code 37010-0097
Product Details
- Kit type: Electric toilet conversion base kit
- Pump set: High-capacity macerator and bowl scavenger pump
- Flush pump: Flexible impeller flush pump
- Motor: Permanent magnet type motor, fully enclosed, with stainless steel shaft
- Discharge line: Backflow check valve in discharge
- Priming and head capability: Self-priming with vertical lift up to 4 ft; discharge macerator pump can operate against a vertical head up to 4 ft
- Installation note: The toilet inlet must not be connected to a pressurized water system
- Clearance note: Overall height after conversion may increase up to 1 in on some models
- Product portfolio: Electric toilets

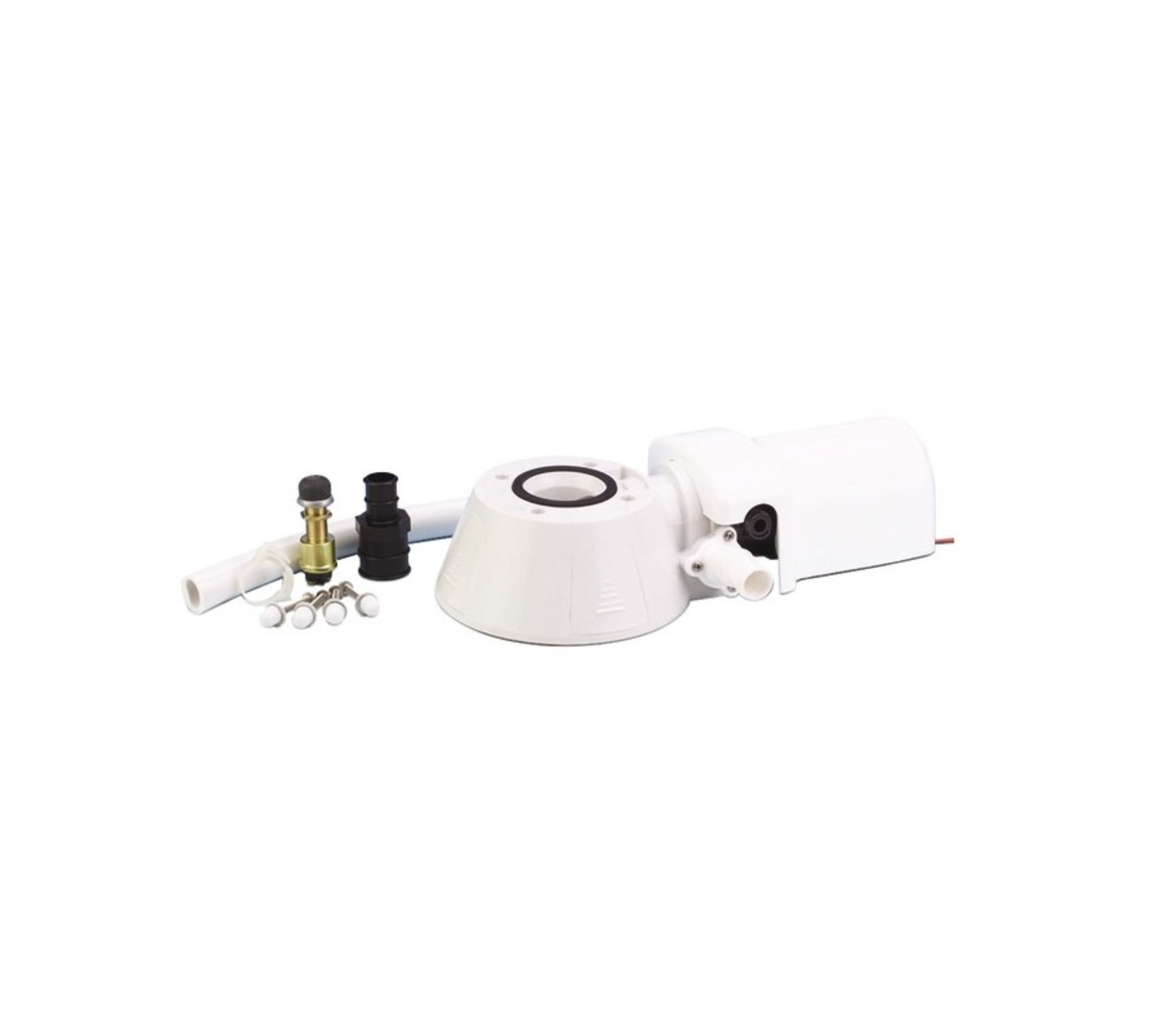

Included in the Kit
- Motorized base assembly
- Bowl gasket
- Four bolts and washers (for bowl)
- Two pump port adaptors (5/8 in to 3/4 in)
- 3/4 in white hose
- 1 in to 1-1/2 in discharge port adaptor
- Momentary control switch (push-button)
Features
- Converts manual operation to electric flushing for added onboard convenience
- Rapid waste processing via macerator and bowl scavenger pump
- Multiple hose connection options to support common marine plumbing sizes
- Corrosion-resistant materials for marine use
Spare Parts (As Listed)
- Seal kit: Catalog 37040-0000 (service kit)
- Impeller: Catalog 6303-0003 (nitrile)
-
