ID
1331406
$ 637.42
1-2 weeks delivery time
-
+
The Jabsco 37010-0092 electric conversion kit upgrades a manual marine toilet to a motorized system using a high-capacity macerator and bowl scavenger pump. It supports 12V operation with a 16A draw (25A fuse) and includes hose adapters plus a momentary push button switch for straightforward installation. Designed to fit Manual Jabsco Toilet models 29090 and 29120 and most toilets using a 95.3 mm (3-3/4 in) bolt circle with a 4-hole base pattern, it provides approximately 0.9 to 1.4 liters per 5 seconds of operation and adapts to common marine hose sizes.
- Description
- Ask a Question
-
Jabsco 37010-0092 12V Electric Toilet Conversion Base Kit
Convert a manual marine toilet into a powered flushing system with the Jabsco 37010-0092 conversion kit. This kit replaces the manual base with a motorized assembly that integrates a macerator and bowl scavenger pump, helping deliver more convenient, consistent operation onboard.
Application
- Converts a manual marine toilet into an electric (motorized) toilet system
- Designed for easy installation on compatible manual Jabsco toilets and most marine toilets with a similar bolt pattern
- Can be installed above or below the waterline
- Important note: The toilet inlet must not be connected to a pressurized water system
Compatibility
- Manual Jabsco Toilet model 29090
- Manual Jabsco Toilet model 29120
- Most marine toilets with a 95.3 mm (3-3/4 in) diameter bolt circle and 4-hole base pattern
- Raritan PH toilets
- Raritan Compact toilets
- Wilcox-Crittenden Head Mate toilets
- Groco HC toilets
- Brydon No. 9127 toilets
- Brydon No. 9128 toilets
- Brydon No. 59128 toilets
Technical Specifications
Voltage 12 V DC Current Draw 16 A Recommended Fuse Size 25 A Flow Rate Approximately 0.9 to 1.4 liters per 5 seconds of operation (also stated as approximately 1-1/2 quarts per 5 seconds of operation) Inlet Connection 16 mm or 19 mm (5/8 in or 3/4 in) inlet hose Discharge Connection 25.4 mm (1 in) discharge hose Waste Plumbing Adapter Includes adapter to fit 38 mm (1-1/2 in) waste plumbing Dimensions (H x W x L) 96 mm x 181 mm x 368 mm Vertical Lift (Self-Priming Flush Pump) Up to 4 ft Vertical Head (Discharge Macerator Pump) Up to 4 ft Shipping Weight 3.80 kg Order Number 00320046 Supplier Code 37010-0092 Barcode 671880523479
Product Details
- Conversion type: Motorized base assembly with macerator and bowl scavenger pump
- Motor: Permanent magnet type motor, fully enclosed, with stainless steel shaft
- Flush pump: Flexible impeller flush pump
- Discharge: Outlet includes a backflow check valve
- Regulatory and standards information: Marked and complies with EN50081-1 for suppression of electro-magnetic interference; complies with USCG 183.410 and ISO 8846 Marine for ignition protection
- Space note: Overall height after conversion may increase up to 1 in on some models

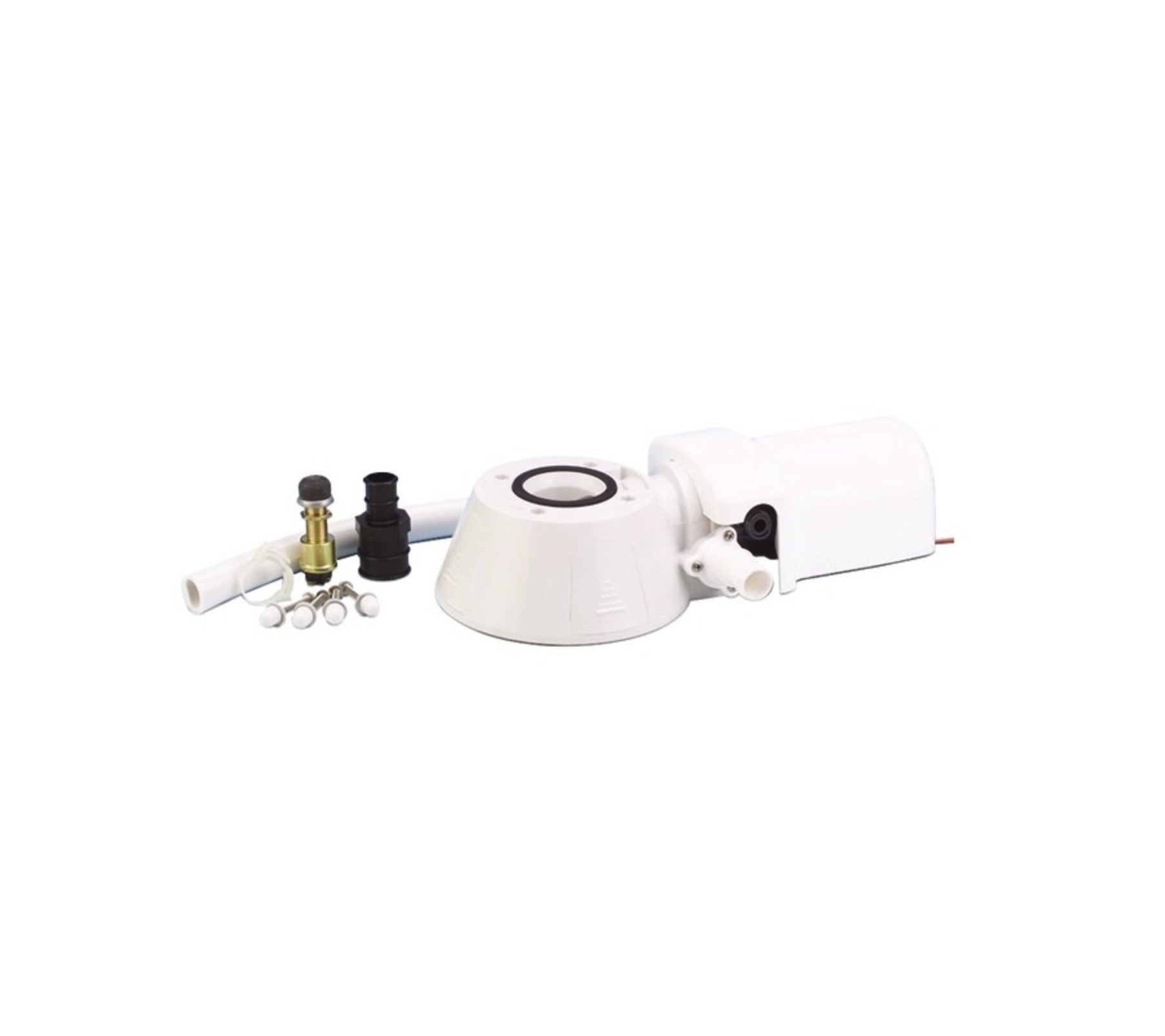

Kit Contents
- Motorized base assembly
- Bowl gasket
- Four bolts and washers for bowl
- Two pump port adapters (5/8 in to 3/4 in)
- 3/4 in white hose
- Discharge port adapter (1 in to 1-1/2 in)
- Momentary control switch (push button)
Features
- High-capacity macerator and bowl scavenger pump for motorized operation
- Simple push button control included
- Corrosion-resistant materials for marine use
- Note: Operates with a characteristic noise
Spare Parts Listed
- Seal kit: Catalog 37040-0000 (service kit)
- Impeller: Catalog 6303-0003 (nitrile)
-
