ID
1350918
$ 801.55
1-2 weeks delivery time
Shaft Diameter:
- 35
- 40
- 45
- 50
- 55
- 60
- 65
- 70
- 75
- 80
- 140
Stern Tube Diameter:
- 51
- 57
- 60
- 64
- 67
- 70
- 76
- 79
- 89
- 95
- 102
- 108
- 114
- 127
- 140
- 165

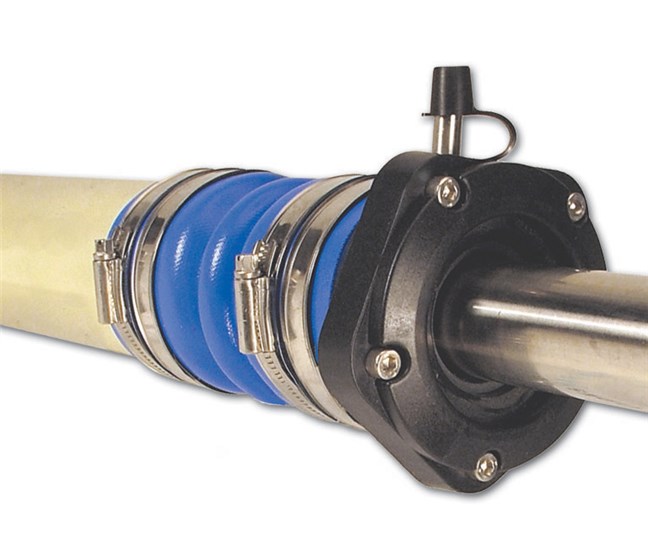

The Tides Marine SureSeal Single Injection Propeller Shaft Seal is a drip-free, self-aligning sealing system for stainless steel propeller shafts, supplied as a kit with an articulating hose and four hose clamps. The SureSeal housing is made from fiber-reinforced composite, includes an integral PTFE bearing, and uses a replaceable lip seal accessed through a removable front cap. Cooling/lubricating water is supplied via a single 316 stainless steel injection fitting (3/8" or 1/2" depending on shaft size). For servicing convenience, SureSeal can be paired with a Spare Seal Carrier Kit to enable lip seal replacement without uncoupling the shaft and, when applicable, in the water.
- Description
- Ask a Question
-
Tides Marine SureSeal Single Injection Propeller Shaft Seals – Drip-Free Self-Aligning Shaft Seal Kits (Metric Sizes)
The Tides Marine SureSeal™ is a drip-free, self-aligning propeller shaft seal designed to provide a watertight seal with minimal scheduled maintenance. The SureSeal kit is supplied with an application-specific connecting hose (articulating hose in most cases) and four hose clamps. A removable front cap provides access for lip seal replacement.
Key Features
- Drip-free, self-aligning shaft seal design
- Housing made from fiber-reinforced composite material
- Integral PTFE bearing to extend service life under normal operating conditions
- Replaceable lip seal via removable front cap
- Single water injection fitting made from 316 stainless steel
- Compatible with Spare Seal Carrier Kits (for in-water lip seal replacement when installed)
Water Injection Requirement
- Water supply should deliver a minimum of 1 gallon per minute at idle speed and approximately 2 psi.
- Water flow should increase as engine RPM increases.
- Before operating the vessel, the water supply must be tested.
Important Notes
- The lip seal typically rides on the shaft 4 to 7 inches ahead of the stern tube.
- The shaft surface in the sealing area must be clean and free of rust, pits, or tool marks.
- If a worn groove from a stuffing box cannot be avoided by hose positioning, a face seal product may be a better choice.
- Warning: The SureSeal is not recommended for engines with less than 4 cylinders.
- Never use grease of any kind.
How to Select the Correct SureSeal (Metric)
- Measure propeller shaft diameter (Shaft OD).
- Measure stern tube outside diameter (Tube OD).
- Verify you have at least the listed minimum distance from stern tube to coupling for the selected kit.
- If installing a Spare Seal Carrier Kit, add 1 inch to the required minimum distance.
Metric Size / Part Number Reference (Single Injection)
Shaft OD (mm) Tube OD (mm) Minimum Distance Stern Tube to Coupling (mm) Kit Part Number 35 51 184 FSKM-35M-51M-0 / FSKM-35M-51M-1 35 54 184 FSKM-35M-54M-0 / FSKM-35M-54M-1 35 60 184 FSKM-35M-60M-0 / FSKM-35M-60M-1 35 67 184 FSKM-35M-67M-0 / FSKM-35M-67M-1 40 57 184 FSKM-40M-57M-0 / FSKM-40M-57M-1 40 60 184 FSKM-40M-60M-0 / FSKM-40M-60M-1 40 64 184 FSKM-40M-64M-0 / FSKM-40M-64M-1 40 76 184 FSKM-40M-76M-0 / FSKM-40M-76M-1 45 64 184 FSKM-45M-64M-0 / FSKM-45M-64M-1 45 70 184 FSKM-45M-70M-0 / FSKM-45M-70M-1 45 76 184 FSKM-45M-76M-0 / FSKM-45M-76M-1 45 79 184 FSKM-45M-79M-0 / FSKM-45M-79M-1 45 89 184 FSKM-45M-89M-0 / FSKM-45M-89M-1 50 64 184 FSKM-50M-64M-0 / FSKM-50M-64M-1 50 76 184 FSKM-50M-76M-0 / FSKM-50M-76M-1 50 79 184 FSKM-50M-79M-0 / FSKM-50M-79M-1 50 89 184 FSKM-50M-89M-0 / FSKM-50M-89M-1 55 76 184 FSKM-55M-76M-1 55 89 184 FSKM-55M-89M-1 60 76 184 FSKM-60M-76M-0 / FSKM-60M-76M-1 60 89 184 FSKM-60M-89M-0 / FSKM-60M-89M-1 60 95 184 FSKM-60M-95M-0 / FSKM-60M-95M-1 60 102 184 FSKM-60M-102M-0 / FSKM-60M-102M-1 60 108 184 FSKM-60M-108M-0 / FSKM-60M-108M-1 65 89 191 FSKM-65M-89M-1 65 102 191 FSKM-65M-102M-1 65 114 191 FSKM-65M-114M-1 70 89 191 FSKM-70M-89M-1 70 102 191 FSKM-70M-102M-0 / FSKM-70M-102M-1 70 108 191 FSKM-70M-108M-0 / FSKM-70M-108M-1 70 114 191 FSKM-70M-114M-0 / FSKM-70M-114M-1 70 127 191 FSKM-70M-127M-0 / FSKM-70M-127M-1 75 102 210 FSKM-75M-102M-1 75 108 210 FSKM-75M-108M-1 75 114 210 FSKM-75M-114M-0 / FSKM-75M-114M-1 80 102 210 FSKM-80M-102M-0 / FSKM-80M-102M-1 80 114 210 FSKM-80M-114M-1 80 127 210 FSKM-80M-127M-0 / FSKM-80M-127M-1 80 140 210 FSKM-80M-140M-1 140 165 — — -
