ID
1366791
$ 97.01
1-2 weeks delivery time
Shaft Diameter:
- 25
- 30
- 35
- 40
- 45
- 50
- 60
- 70
- 80
- 90
- 100
Stern Tube Diameter:
- 40
- 45
- 50
- 55
- 65
- 70
- 80
- 90
- 100
- 110
- 125
Length, mm:
- 100
- 118
- 120
- 140
- 180
- 200
- 240
- 280
- 320
- 360
- 400
The Exalto brass rubber cutlass bearing is a water-lubricated shaft bearing designed for marine propulsion systems. Available for shaft diameters from 25 mm to 100 mm, with outer diameters from 40 mm to 125 mm and lengths from 100 mm to 400 mm, including short version (118 mm for 60 mm shaft). Features a bronze shell with rubber lining for wear resistance, reduced friction, and reliable operation.
- Description
- Ask a Question
-

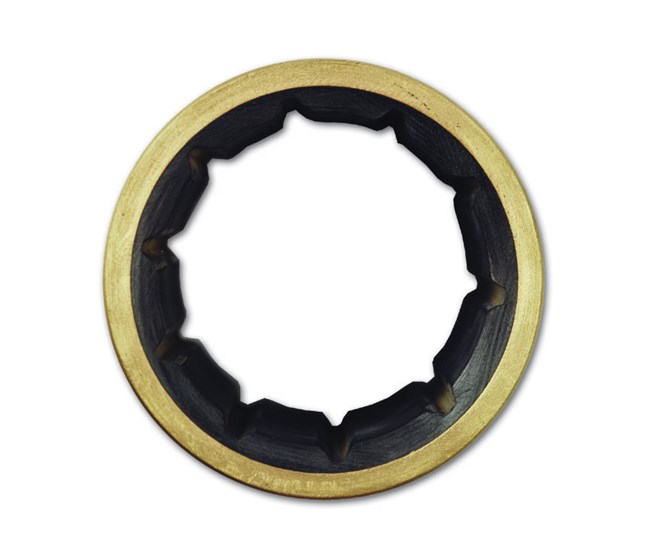

Exalto Brass Rubber Cutlass Bearing – Metric Sizes, 25–100 mm Shaft, Water Lubricated
The Exalto rubber cutlass bearing is designed for reliable and efficient operation in marine propulsion systems. It supports the propeller shaft while reducing friction, vibration, and wear.
The bearing features a bronze shell combined with a rubber lining, providing excellent durability, resistance to abrasion, and smooth shaft rotation. It is suitable for use in seawater-lubricated systems.
Available in a wide range of metric sizes, including both standard and short-length versions, these bearings provide flexibility for different shaft configurations.
Key Features
- Water-lubricated cutlass bearing
- Bronze shell construction
- Rubber lining for wear resistance
- Reduces friction and vibration
- Designed for marine propulsion systems
- Available in standard and short lengths
Technical Specifications
Shaft (ID) Outer Diameter (OD) Length 25 mm 40 mm 100 mm 30 mm 45 mm 120 mm 35 mm 50 mm 140 mm 40 mm 55 mm 140 mm 45 mm 65 mm 180 mm 50 mm 70 mm 200 mm 60 mm 80 mm 240 mm 60 mm 80 mm 118 mm 70 mm 90 mm 280 mm 80 mm 100 mm 320 mm 90 mm 110 mm 360 mm 100 mm 125 mm 400 mm
Catalog References
- 71207, 71210, 71220, 71230, 71239, 71240
- 71250, 71260, 71280, 71300, 71320, 71340, 71360
- 71207.001, 71210.001, 71220.001, 71230.001
- 71239.001, 71240.001, 71250.001, 71260.001
- 71280.001, 71300.001, 71320.001, 71340.001
These cutlass bearings provide a durable and efficient solution for supporting propeller shafts in marine applications and should be selected based on shaft diameter, housing size, and required length.
-
