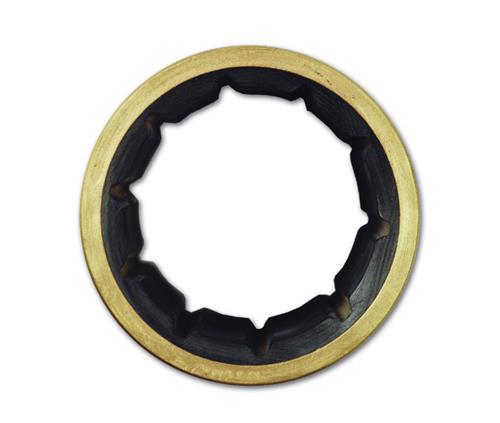

Michigan Wheel Aqualube Brass Cutlass Bearings – Metric Sizes

ID 1366804

$ 116.87

1-2 weeks delivery time

Shaft Diameter:

Stern Tube Diameter:

Length, mm:

The Michigan Wheel Aqualube brass cutlass bearing is a water-lubricated shaft bearing designed for marine propulsion systems. Available in metric sizes with shaft diameters from 22 mm to 110 mm, outer diameters from 35 mm to 135 mm, and lengths from 48 mm to 440 mm. Features a marine bronze shell with nitrile rubber lining for high abrasion resistance, vibration damping, and hydrodynamic water film lubrication.

Description
Ask a Question

Michigan Wheel Aqualube Brass Cutlass Bearing – Metric Sizes, 22–110 mm Shaft, Water Lubricated

The Michigan Wheel Aqualube cutlass bearing is a high-performance water-lubricated bearing designed for marine propulsion systems. It supports propeller shafts while minimizing friction, vibration, and wear.

The bearing features a marine bronze shell combined with a specially formulated nitrile rubber lining, providing excellent resistance to abrasion and long service life in demanding marine environments.

Water lubrication is achieved through longitudinal grooves in the rubber lining, allowing the formation of a hydrodynamic water film between the shaft and the bearing surface. This prevents direct contact and ensures smooth operation even at low shaft speeds. :contentReference[oaicite:0]{index=0}

Key Features

Water-lubricated cutlass bearing
Marine bronze shell construction
Nitrile rubber lining
High resistance to abrasion and wear
Reduces vibration and noise
Hydrodynamic water film lubrication
Suitable for marine propulsion systems

Technical Specifications

Shaft (ID)	Outer Diameter (OD)	Length
22 mm	35 mm	88 mm
25 mm	35 mm	100 mm
25 mm	40 mm	100 mm
25 mm	40 mm	48 mm
30 mm	40 mm	120 mm
30 mm	45 mm	120 mm
30 mm	40 mm	58 mm
32 mm	45 mm	128 mm
35 mm	50 mm	140 mm
35 mm	50 mm	68 mm
38 mm	55 mm	152 mm
40 mm	55 mm	160 mm
40 mm	50 mm	160 mm
40 mm	50 mm	78 mm
40 mm	56 mm	160 mm
40 mm	55 mm	78 mm
45 mm	65 mm	180 mm
45 mm	65 mm	88 mm
50 mm	70 mm	200 mm
50 mm	75 mm	200 mm
50 mm	65 mm	200 mm
50 mm	65 mm	98 mm
50 mm	66 mm	200 mm
55 mm	75 mm	220 mm
60 mm	80 mm	240 mm
60 mm	85 mm	240 mm
65 mm	85 mm	260 mm
70 mm	90 mm	280 mm
75 mm	95 mm	300 mm
80 mm	100 mm	320 mm
85 mm	105 mm	340 mm
90 mm	110 mm	360 mm
90 mm	115 mm	360 mm
95 mm	115 mm	380 mm
100 mm	125 mm	400 mm
110 mm	135 mm	440 mm

Aqualube bearings use water as a lubricant, forming a hydrodynamic wedge that separates the shaft from the bearing surface, reducing wear and improving operational efficiency in marine applications.
