SKU:
EX P200-W.R.225
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
Our managers will contact you and clarify the terms of the order
The Python Drive P200-W CV Joint is a high-performance component designed for shafts with diameters ranging from 50 to 60 mm. It handles a maximum torque of 200 Kgm (1960 Nm) and a maximum stop force of 30 kN. This CV joint is ideal for 200 hp (2200 RPM) engines with a 3:1 gearbox. With a coupling diameter of 148 mm and a length of 225 mm, it ensures efficient power transfer, minimal vibration, and smooth operation in demanding marine environments.
- Description
- Ask a Question
-

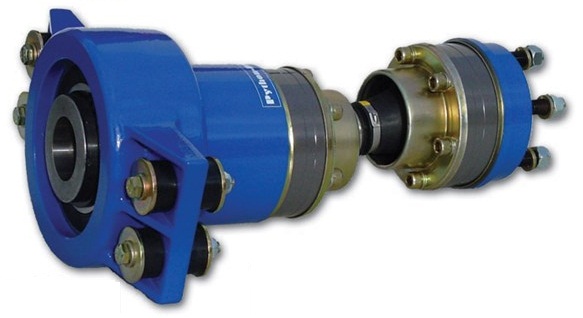

Python Drive P200-W CV Joint
The Python Drive P200-W CV Joint is designed for shafts with diameters between 50 and 60 mm. Capable of handling a maximum torque of 200 Kgm (1960 Nm) and a maximum stop force of 30 kN, this CV joint is built for high-performance marine applications. It is compatible with 200 hp (2200 RPM) engines with a 3:1 gearbox ratio. The coupling diameter is 148 mm, and the available coupling length is 225 mm, offering flexibility for various setups. This CV joint ensures smooth torque transmission while minimizing vibration, making it ideal for maintaining optimal performance in demanding conditions.
Features:
- Compatible with shafts with diameters from 50 to 60 mm
- Maximum torque capacity: 200 Kgm (1960 Nm)
- Maximum stop force: 30 kN
- Suitable for 200 hp (2200 RPM) engines with a 3:1 gearbox ratio
- Coupling diameter: 148 mm
- Available length: 225 mm
- Designed for high-performance marine propulsion systems
- Reduces vibration and ensures efficient power transfer
Part Numbers:
Exalto Catalog Parts: P200-W.R.225

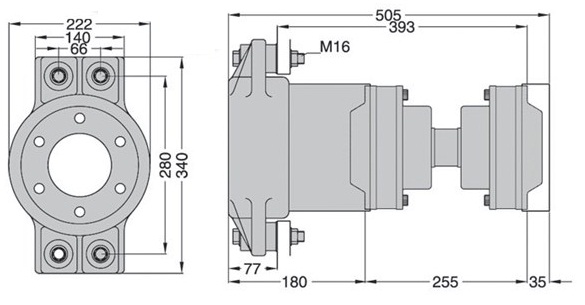

Dimensions and Technical Data:
Part Number Length Coupling Diameter Max Torque Max Stop Force Engine Power P200-W.R.225 225 mm 148 mm 200 Kgm (1960 Nm) 30 kN 200 hp (2200 RPM)
The coupling can be ordered separately. Contact our consultants for more information.
Yacht-Supply24.com team is ready to help you find the ideal propulsion system for your yacht or boat. Please contact our managers or use the feedback form for assistance. -
