The Aquadrive CVB15.10 Moduline B10 is a marine anti-vibration propulsion system combining a CV driveshaft, thrust bearing, and gearbox adapter flange. It isolates engine vibrations and transfers propeller thrust to the vessel structure instead of the gearbox. Maximum torque 1625 Nm, maximum shaft speed 4000 rpm, and maximum continuous thrust 11 kN.
- Description
- Ask a Question
-
Aquadrive CVB15.10 – Moduline B10 Anti-Vibration CV Shaft System

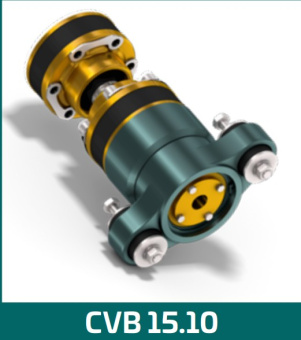

The Aquadrive CVB15.10 Moduline B10 is a marine anti-vibration driveline system designed to isolate the engine from propeller forces and vibrations. By transferring propeller thrust through a dedicated thrust bearing mounted on the vessel foundation, the system significantly reduces loads on the gearbox and improves onboard comfort.
The Aquadrive system combines a constant velocity (CV) shaft, a thrust bearing assembly, and a gearbox adapter flange. The CV shaft consists of two universal joints connected by a floating shaft, allowing axial and radial movement while maintaining smooth torque transmission even when the engine moves on its mounts.
Thanks to the Moduline modular construction, the system allows compact installations while simplifying engine alignment. This design improves installation flexibility and reduces vibration transfer to the hull structure.
Main Components
- Constant velocity shaft (CV joint assembly)
- Thrust bearing with rubber suspension
- Gearbox adapter flange
- Shaft sleeve connection
Technical Specifications

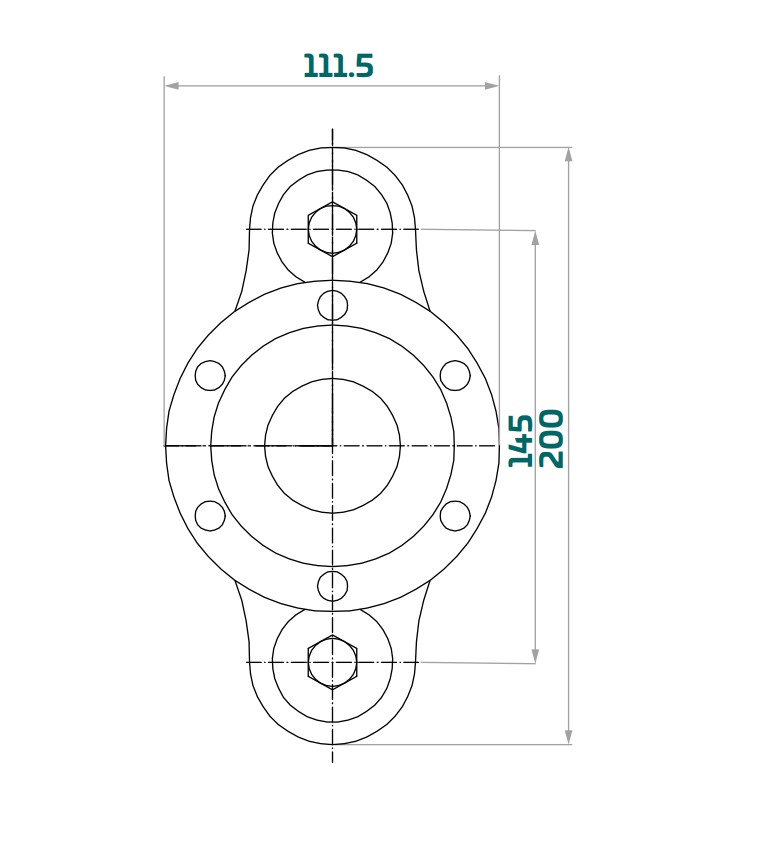

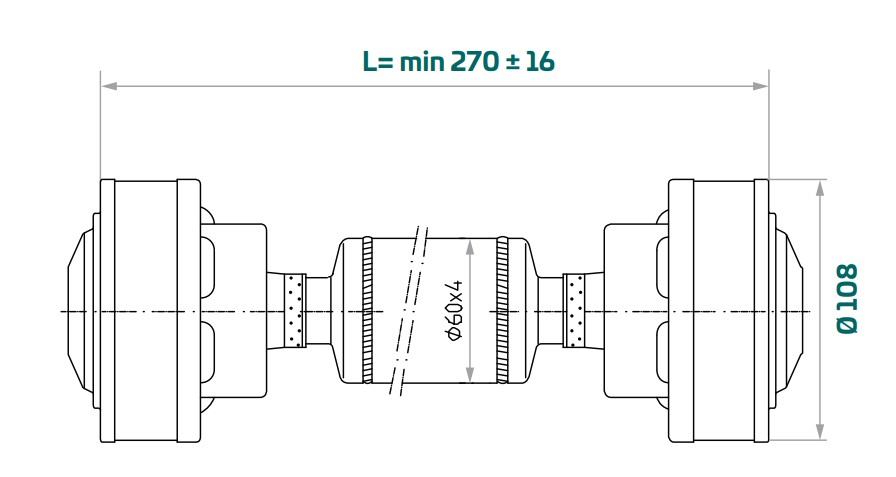

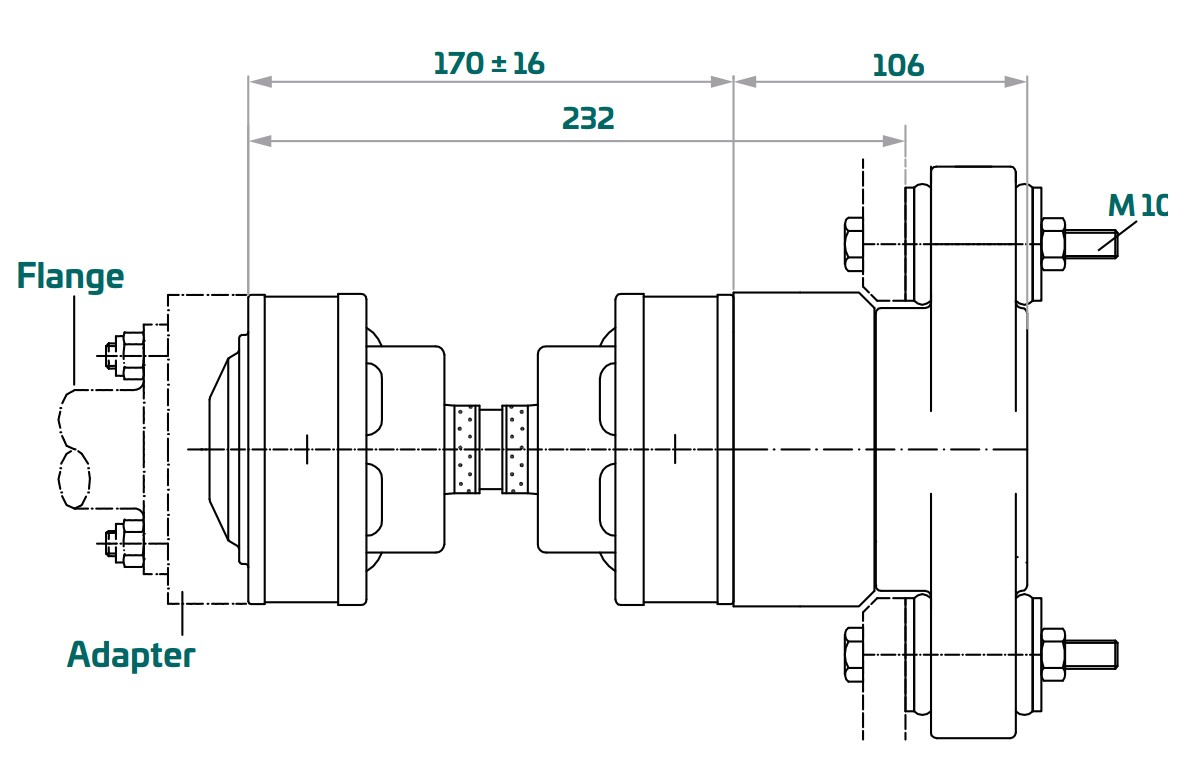

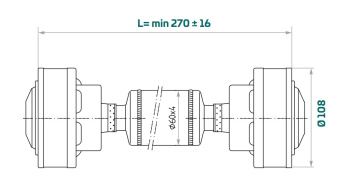

Model CVB15.10 System Type Aquadrive Moduline B10 Maximum Static Torque (ØA = 1 1/4") 1625 Nm / 1200 lbft Maximum Propeller Shaft Speed 4000 rpm Maximum Continuous Propeller Thrust 11 kN / 2475 lbf Minimum Driveshaft Length 270 ± 16 mm (tube shaft design)
Typical Applications
Vessel Type Rated Power Crankshaft Speed Gearbox Ratio Planing Boat 114 kW (155 hp) 3800 rpm 2.0 : 1 Semi-displacement Motorboat 96 kW (130 hp) 3300 rpm 2.2 : 1 Sailing Boat 85 kW (115 hp) 3300 rpm 2.6 : 1 Displacement Motorboat 66 kW (90 hp) 2600 rpm 3.0 : 1
Propeller Shaft Options
Standard B10 version supports:
- 3/4"
- 20 mm
- 22 mm
- 7/8"
- 25 mm
- 1"
- 1 1/8"
- 30 mm
- 1 1/4"
- 32 mm
- 35 mm
- 1 1/2"
- 40 mm
Oversize version with external clamp mechanism supports:
- 1 3/4"
- 45 mm
- 50 mm
- 2"
Notes
Rated application examples are based on optimal operating conditions with approximately 2° joint angle for each CV joint. If the operating angle exceeds 2°, the maximum permitted power should be reduced by approximately 8–9% for each additional degree.
The maximum allowable joint angle typically ranges between 4° and 8°, depending on propeller shaft speed.
-
